Miniature Power Relay TH
CÓD: TH1NAC2
Description
Description

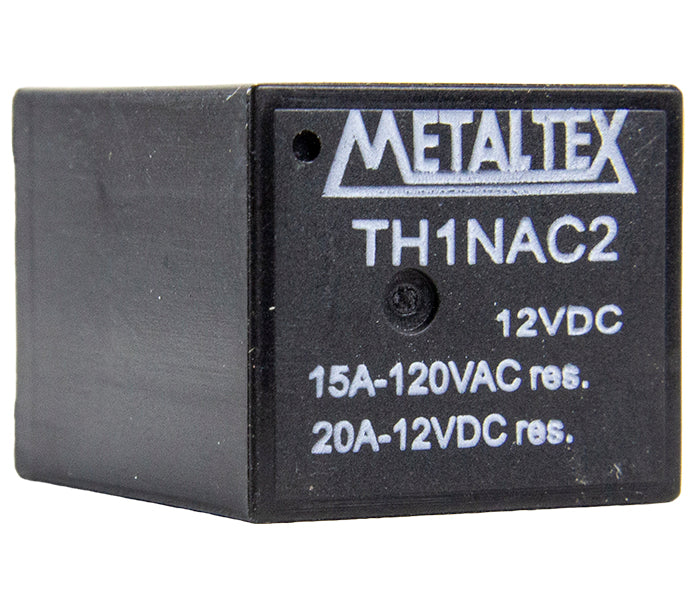

The TH relay is a compact and economical component designed for medium-power applications. With a capacity of up to 20A and high electrical isolation, it offers reliable performance and durability. Its sealed construction and direct PCB mounting ensure efficiency and safety in electronic and automotive systems.
- Normally open contact 20A @12VDC and 15A @120VAC
- 12VDC voltage options
- Direct printed circuit board (PCB) mounting
General specifications
General specifications
| Dielectric strength between coil and contacts | 2000 VAC (1 minuto) | |
| Dielectric strength between open contacts | 500 VAC (1 minuto) | |
| Insulation resistance | 100 MΩ min. (500 VDC) | |
| Operating temperature | -30 ~ 80ºC | |
| Vibration resistance | Funcional | 10 ~ 500 Hz 44.1 m/s² min. |
| Destrutiva | 10 ~ 2000 Hz 44.1 m/s² min. | |
| Impact resistance | Funcional | 200 m/s² min. |
| Destrutiva | 1000 m/s² min. |
