Automation

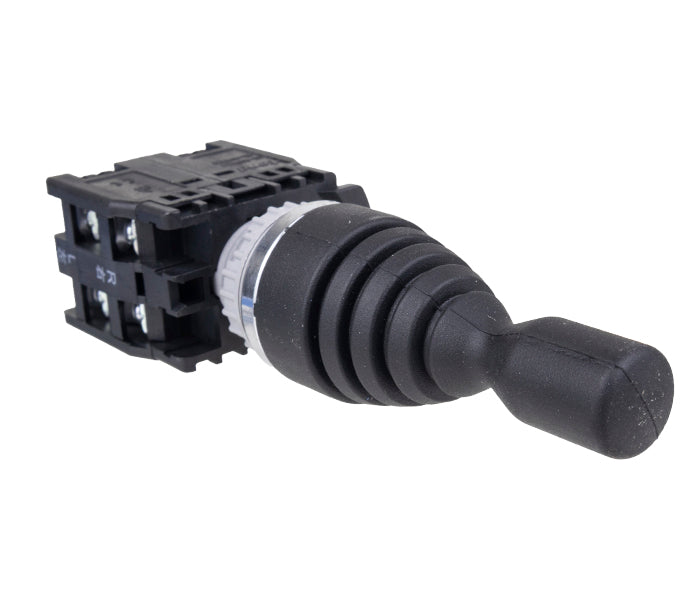

TN2 22mm Manipulating Switch

CÓD: TN2MR2L-2A

Description

TN2 series monolever joystick, designed for directional control in industrial applications. With precise actuation and multiple position options, it offers greater versatility and reliability in controlling machinery and equipment.

  • Lever control with 2 or 4 position options
  • Versions with automatic return (momentary)
  • IP65 protection rating, resistant to dust and moisture
  • Possibility of contact expansion with auxiliary blocks

Select the options below

General specifications
Degree of protectionIP40 for illuminated and double-touch models
IP65 for non-illuminated models
Operating voltage Ue380V
Insulation voltage Ui660V
Humidity45 ~ 85%, non-condensing
Temperature-5 ~ 40ºC
Rated current Ie5A
Thermal current Ith10A
Initial contact resistance<50mΩ
Service lifeElectrical: 500 x 103
Mechanical: 106
