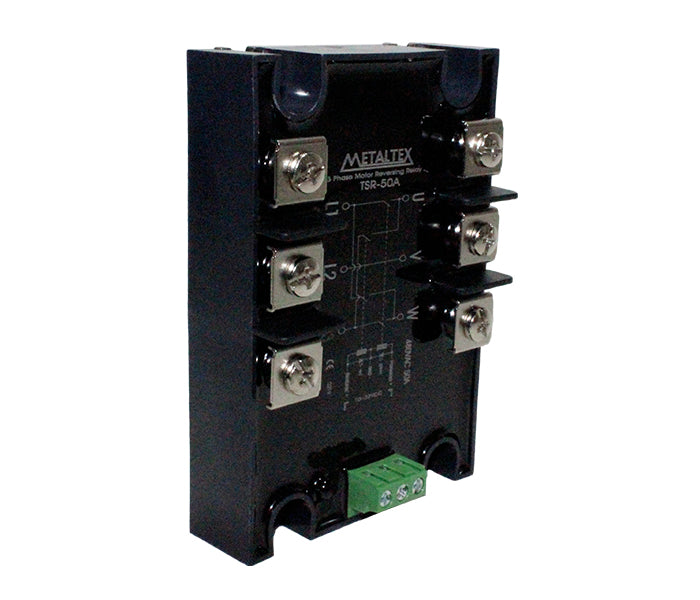

Solid State Relay TSR
CÓD: TSR-50A
Description
Description
The TSR solid-state relay is designed for three-phase motor reversal with maximum safety and efficiency. Featuring optical isolation, dual SCRs, and an interlocking circuit, it offers reliable performance in industrial systems. Its bicolor LED and high load capacity ensure precise control and durability in high-demand environments.
- Optical isolation and interlocking circuit
- Dual SCRs per channel
- High load capacity supports up to 50A and 4kW
General specifications
General specifications
| Input | |
|---|---|
| Range of voltage of control | 10 ~ 32VDC |
| Min. release voltage | 3VDC |
| Maximum input current | 35mA @ 32VDC |
| Reverse voltage protection (max.) | -32VDC |
| Output | |
| Range of voltage of load | 48 ~ 530VAC |
| Range of frequency | 47 ~ 63Hz |
| Maximum current of load (resistiva) | 50A |
| Power maximum em caso of motor | 4KW (5HP) |
| Transient of overvoltage | 1200Vpk |
| Max. voltage drop (on-state) | 2.1V |
| Minimum current of load | 100mA |
| Maximum current residual | 10mA |
| Minimum dv/dt (off-state) | 500V/µs |
| Maximum operating time | 80ms |
| Maximum release time | ½ ciclo / cycle + 1ms |
| Maximum current of surge | 500Apk |
| Maximum I²t value for fuse (8.33ms) | 1042A²s |
| Geral | |
| Strength dielectric (input / output) | 4000VAC, 50/60Hz, 1 min. |
| Insulation resistance | 1000MΩ (500VDC) |
| Maximum capacitance (input to output) | 10pF |
| Operating temperature | -30 ~ 80°C |
| Storage temperature | -30 ~ 100°C |
| Ambient humidity | 45 ~ 85% UR |
| Terminals | Parafusos |
| Unit weight | 335g |
| LED Indicator of state operating | Frente: verde Reverso: vermelho |
| Torque of aperto of the screws (máx.) | Controle: 0.5N.m Carga: 1.3N.m |
