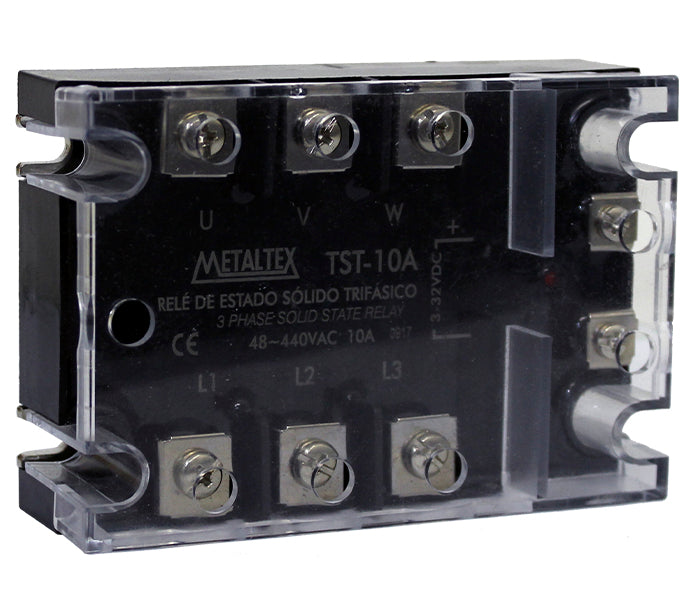

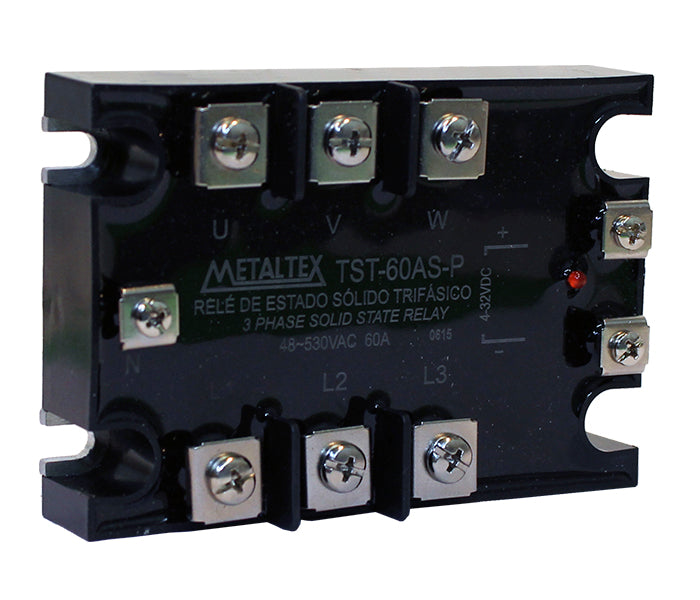

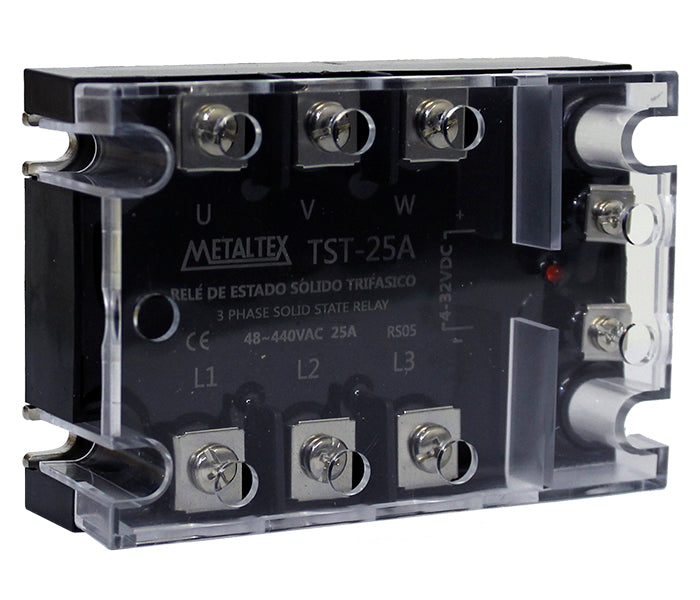

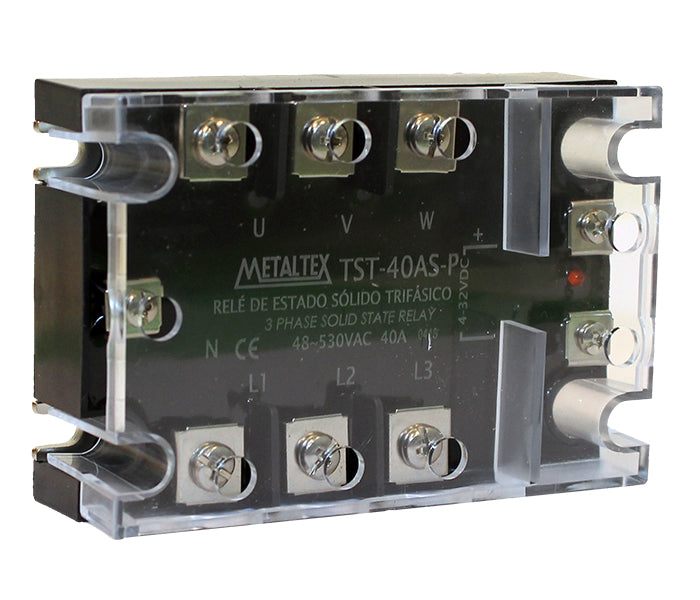

Solid State Relay TST

CÓD: TST-10A

Description

The TST three-phase solid-state relay offers robust and reliable performance for controlling industrial loads. With optical isolation, zero-cross switching, and phase loss protection, it ensures safety and efficiency.

  • Optical isolation and snubber circuit
  • Zero-cross switching
  • Supports currents up to 60A
  • Versions with phase loss protection

Select the options below

General specifications
ModelsTST-10ATST-25ATST-40AS-PTST-60AS-P
Input
Range of voltage of control4 ~ 32VDC
Min. release voltage1VDC
Maximum input current35mA @ 32VDC
Reverse voltage protection (max.)-32VDC
Output
Range of voltage of load48 ~ 440VAC48 ~ 530VAC
Range of current of load0.1 ~ 10AAC0.1 ~ 25AAC0.1 ~ 40AAC0.1 ~ 60AAC
Transient of overvoltage800Vpk1200Vpk
Maximum current of surge100Apk250Apk400Apk600Apk
Maximum I²t value for fuse (8.33ms)42A²s260A²s666A²s1499A²s
Max. voltage drop (on-state)1.5VAC1.7VAC
Minimum current of load100mACA100mACA
Maximum current residual10mACA10mACA
Minimum dv/dt (off-state)200V/µs500V/µs
Maximum operating time1/2 ciclo + 1 ms1/2 ciclo + 1 ms
Maximum release time1/2 ciclo + 1 ms1/2 ciclo + 1 ms
Minimum power factor0.50.5
Geral
Strength dielectric (input p/ output)4000Vrms 1min.4000Vrms 1min.
Insulation resistance1000MΩ, 500VDC1000MΩ, 500VDC
Maximum capacitance (input to output)8pF8pF
Ambient temperatureOperation: -30 ~ 80°C
Estoque: -30 ~ 100°C		Operation: -30 ~ 80°C
Estoque: -30 ~ 100°C
Ambient humidity45% ~ 85%45% ~ 85%
TerminalsParafusoParafuso
Weight315g315g
