Limit Switch TZ3
CÓD: TZ3104
Description
Description
The TZ3 limit switch series comprises miniature electromechanical devices designed for precise position detection in industrial applications. Featuring a robust metal body and integrated cable, they are ideal for environments requiring high durability and reliability in confined spaces.
- Compact (miniature) design with integrated cable for easy installation
- High-strength metal body
- Reversible contact (SPDT)
- IP67 protection rating
Select the options below
Code list
Code list
| Code | Description |
|---|---|

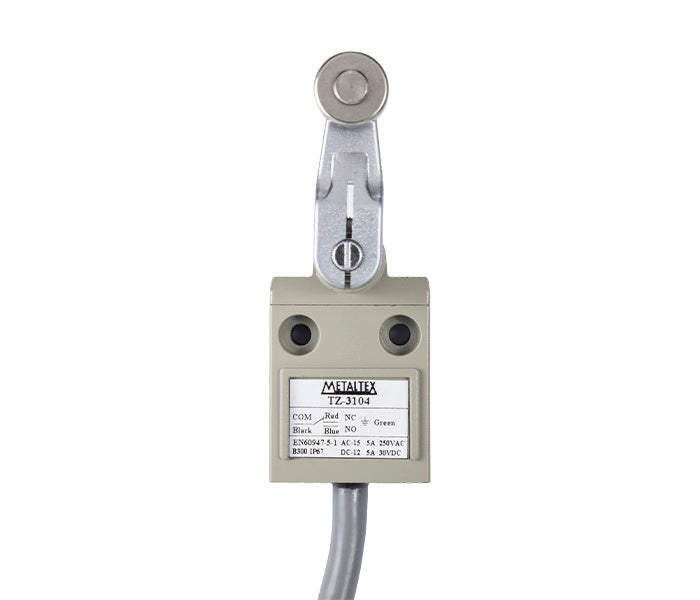

| TZ3104 | Lever with Roller |

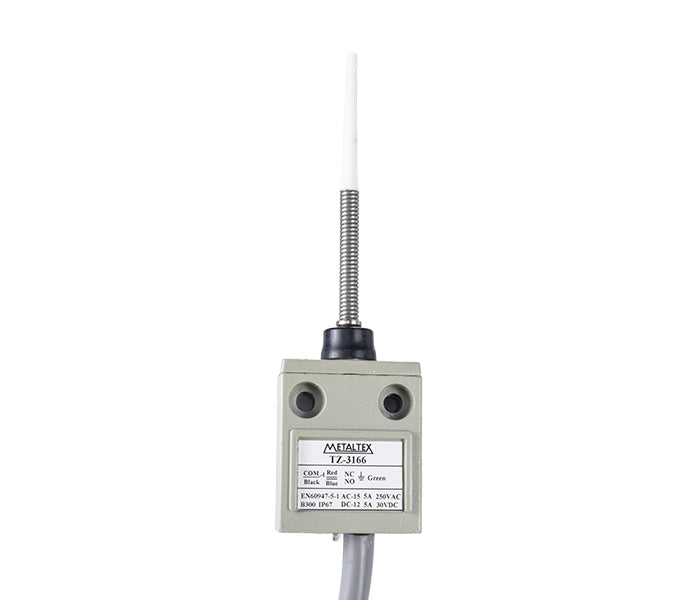

| TZ3166 | Flexible Stem |
| TZ3101 | Pin |

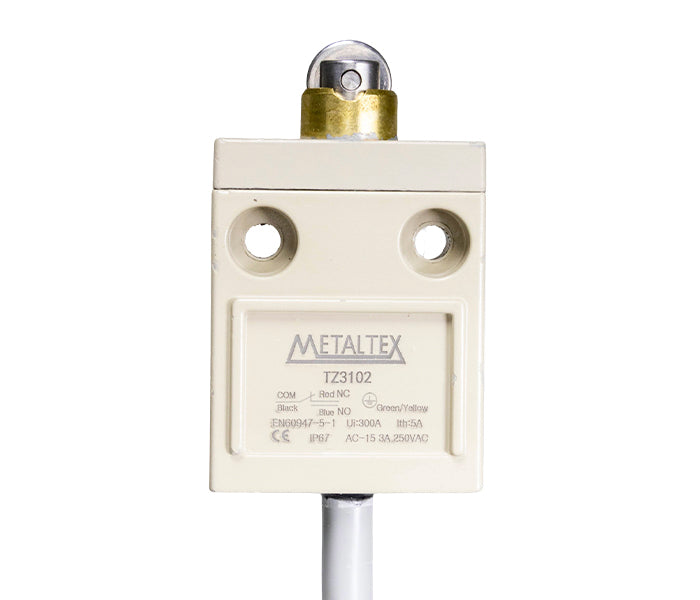

| TZ3102 | Cam Follower |

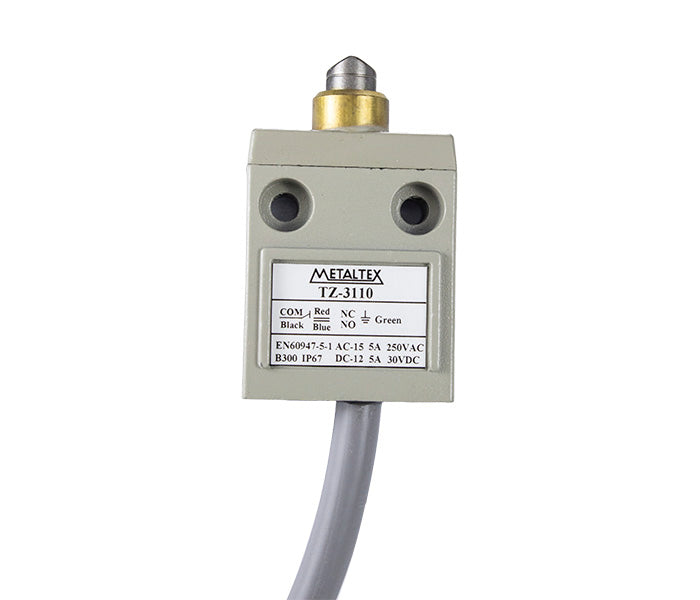

| TZ3110 | Wedge Pin |

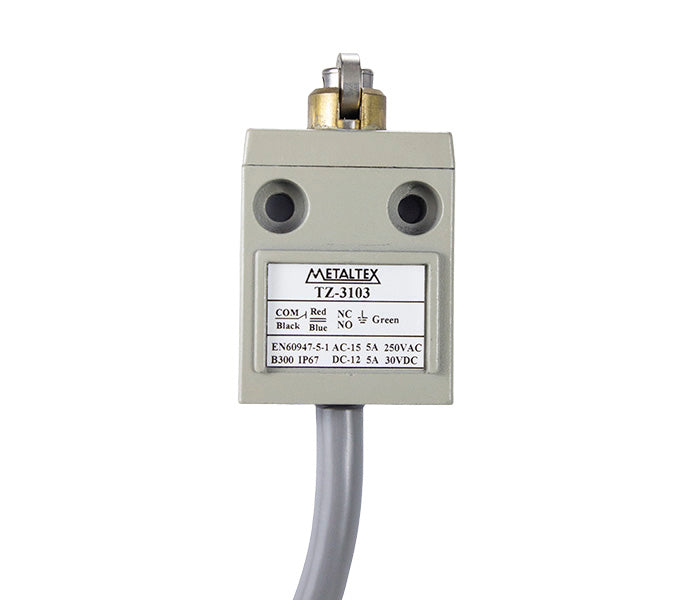

| TZ3103 | 90° Roller |

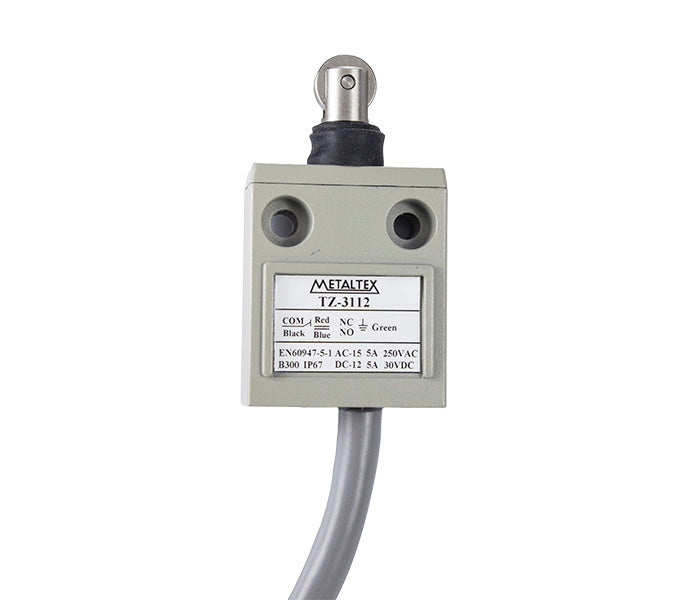

| TZ3112 | Long Roller |

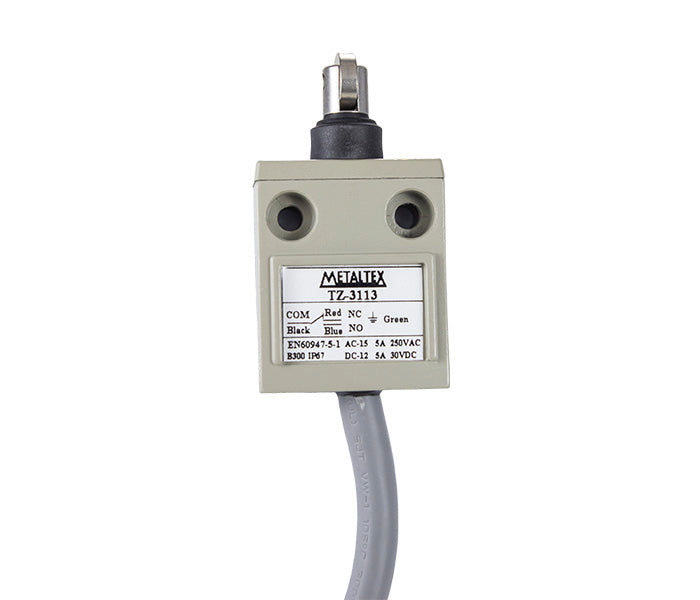

| TZ3113 | 90° Long Roller |
General specifications
General specifications
| Operating speed | 1mm/s ~ 1m/s |
| Operating frequency | 120 operations per minute |
| Contact resistance | ≤15 mΩ (inicial) |
| Insulation resistance | 100 MΩ min. (a 500VDC) |
| Dielectric strength | 1,000 VAC between terminals não contínuos 1,500 VAC between cada terminal and terra |
| Vibration | 10 a 55Hz; 1.5mm dupla amplitude |
| Impact | 300m/s² (approx. 30G) |
| Operating temperature | -10 ~ 70°C |
| Ambient humidity | 95% RH max. |
| Weight | 360g |
| Mechanical life | 10 x 106 operations min. |
| Electrical life | 200 x 103 operations min. |
| Contact rating | 5A-125VAC; 3A-250VAC carga resistiva |
| Contact arrangement | 1 changeover (SPDT) |
| Degree of protection | IP67 |
| Length of the cable | 3m |
