Contact Block

CÓD: TZE-1A1B

Description

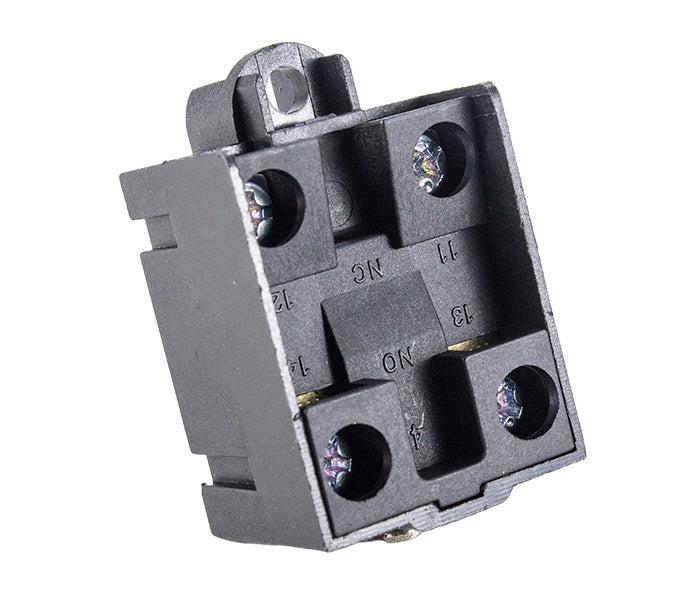

The TZE-1A1B contact block is an accessory for TZE limit switches, used to expand or replace the device's electrical contacts. It allows greater flexibility in control circuit configuration, ensuring reliability and ease of maintenance in industrial systems.

  • Auxiliary contact block for TZE limit switches
  • 1NO + 1NC configuration for different control applications

General specifications
Max. switching voltage380VAC - 250VDC
Max. operating frequency120 operations per minute
Max. contact resistance≤25 mΩ (inicial)
Insulation resistance100 MΩ min. (a 500VDC)
Dielectric strength1,000 VAC between terminals não contínuos
2,200 VAC between cada terminal and terra
Vibration10 ~ 55Hz; 1.5mm dupla amplitude
Impact300m/s² (approx. 30G)
Operating temperature-25 ~ 70°C
Ambient humidity95% RH max.
Mechanical life10 x 106 operations min.
Electrical life500 x 103 operations min.
Contact ratingAC15: 3A - 240VAC
DC13: 0.25A - 250VDC
Contact arrangement1NA + 1NF
Degree of protectionIP66
Cable gland* PG11

Compare to lines

Contact Block Contact Block see details
Limit Switch TZE Limit Switch TZE see details
Description
The TZE-1A1B contact block is an accessory for TZE limit switches, used to expand or replace the device's electrical contacts. It allows greater flexibility in control circuit configuration, ensuring reliability and ease of maintenance in industrial systems.


Auxiliary contact block for TZE limit switches

1NO + 1NC configuration for different control applications


The TZE line of limit switches consists of robust electromechanical devices developed for position detection and motion control in industrial applications. With a resistant metal body and various actuator options, they guarantee high reliability and durability in demanding environments.


Available with various actuator options for different applications

Metal body

Positive break contacts (1NO …
