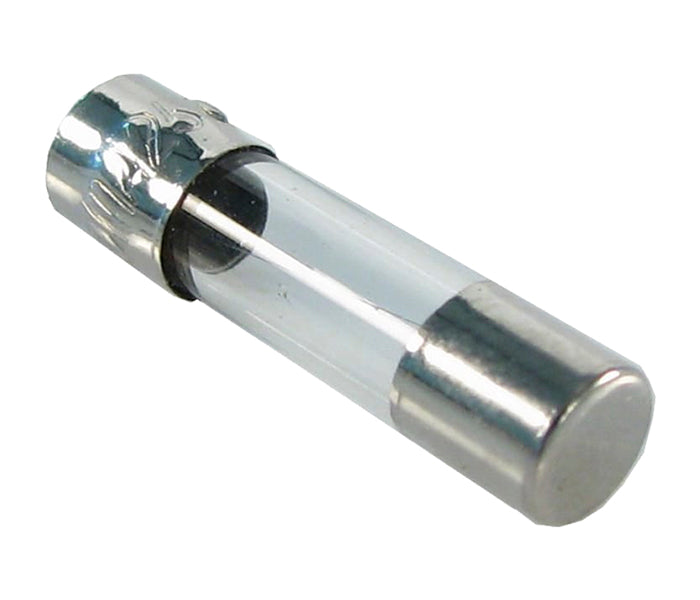

Glass Fuse ZH212
CÓD: ZH212-0,315A
Description
Description
5x20 mm fast-acting glass fuse, suitable for protecting electronic circuits against overcurrent. Features a transparent body for easy inspection and nickel-plated brass terminals. Meets IEC standards for enhanced reliability. Ideal for residential and light industrial applications.
- Standard 5x20 mm size
- Transparent glass body
- Fast-acting according to IEC 60127
- Current range from 315 mA to 30A
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| ZH212-0,315A | 0.315A |
| ZH212-0,4A | 0.400A |
| ZH212-0,5A | 0.500A |
| ZH212-1,6A | 1.6A |
| ZH212-10A | 10A |
| ZH212-12A | 12A |
| ZH212-15A | 15A |
| ZH212-1A | 1.0A |
| ZH212-2,5A | 2.5A |
| ZH212-20A | 20A |
| ZH212-25A | 25A |
| ZH212-2A | 2.0A |
| ZH212-3,15A | 3.15A |
| ZH212-30A | 30A |
| ZH212-4A | 4.0A |
| ZH212-5A | 5.0A |
| ZH212-6,3A | 6.3A |
| ZH212-7A | 7.0A |
| ZH212-8A | 8.0A |
General specifications
General specifications
| Característica time-current | Ação rápida (F) |
| Rated voltage | 250 V |
| Rated interrupting capacity | Baixa , 35 A or 10 X In (o que for maior) |
| Operating temperature | -25 ~ 70 °C |
| Ambient of storage | -10 ~ 60 °C - Humidity relative <75% |
| Vibration resistance | 24 cycles - 15 minutos (EN 60068-6) 10-60 Hz the uma amplitude of 0.75 mm |
| Soldabilidade | 260 °C, < 3 s (onda) ; 350 °C, < 1 s (manual) |
| Resistance too aquecimento per soldering | 260 °C, 10 s (IEC 60068-2-20) |
| Unit weight | ~1 g |
