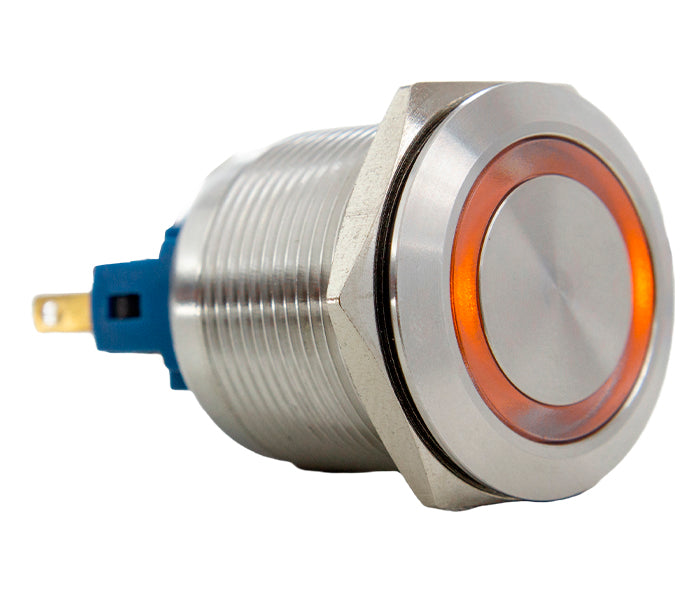

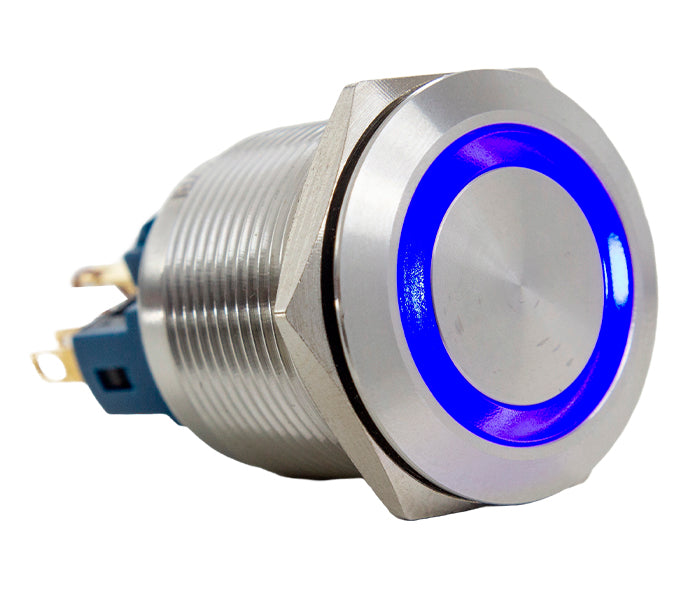

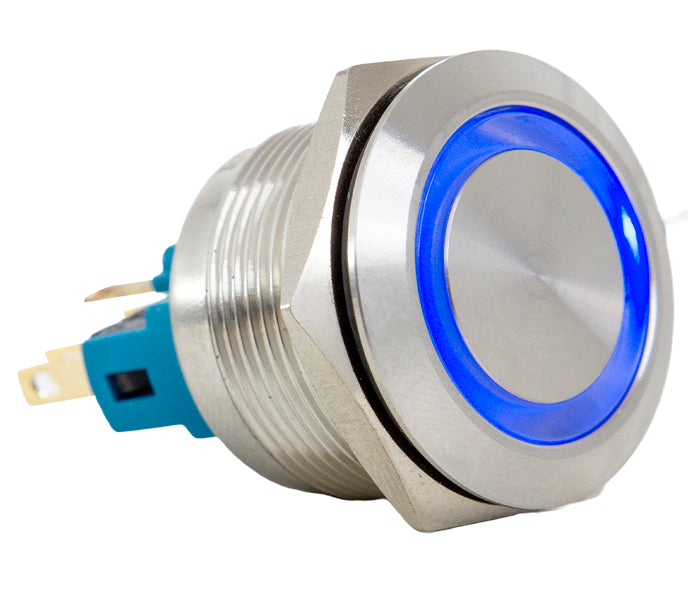

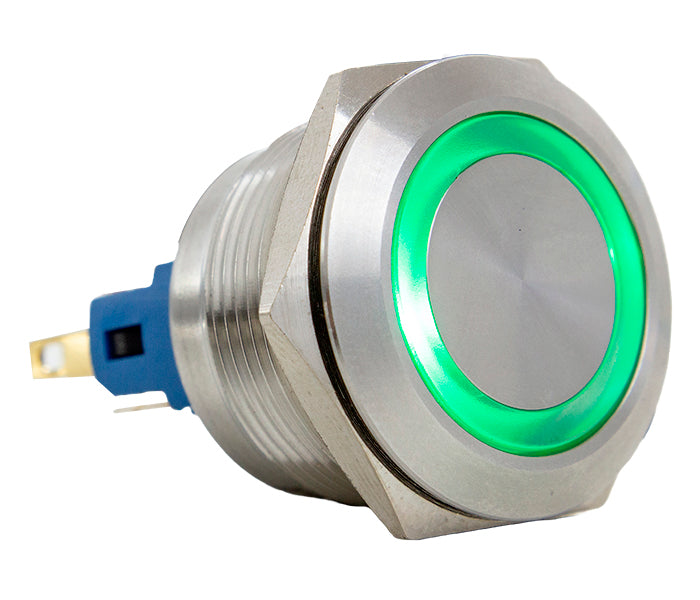

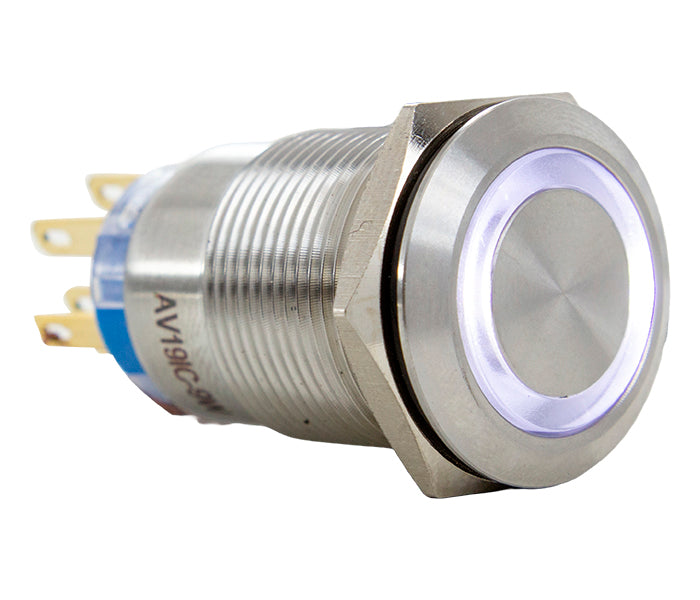

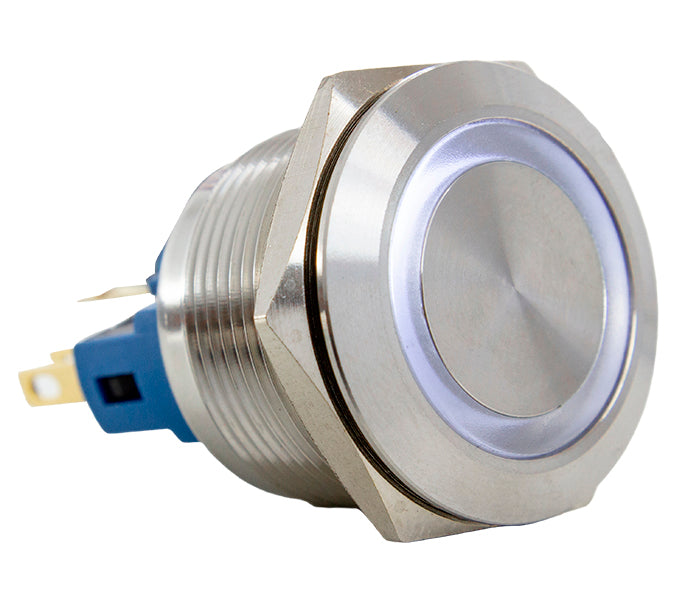

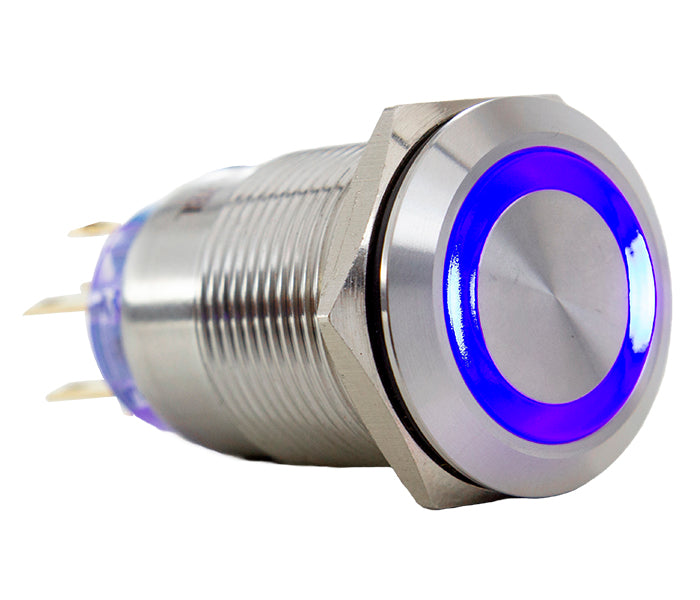

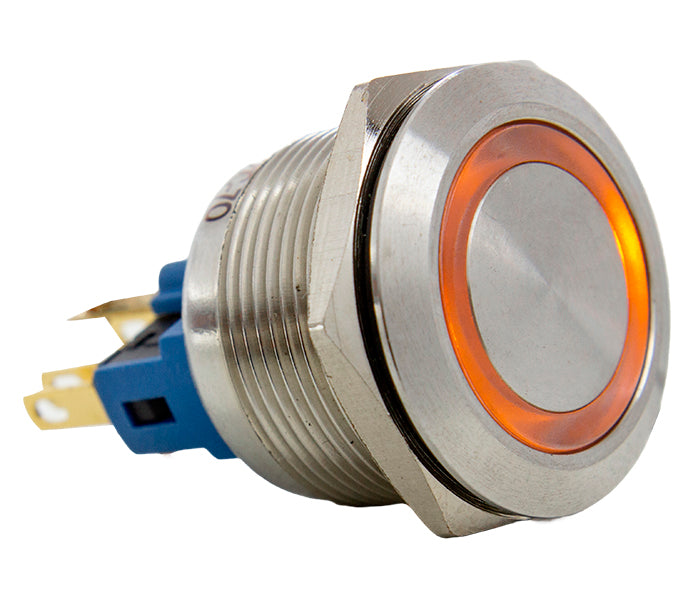

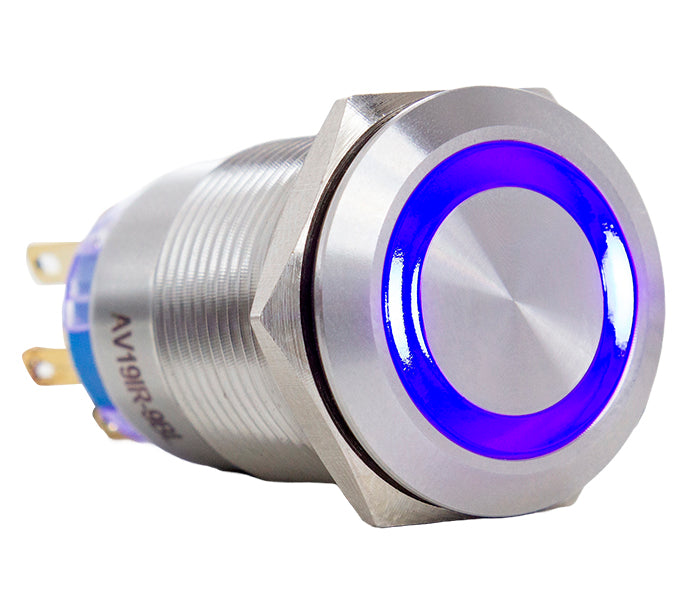

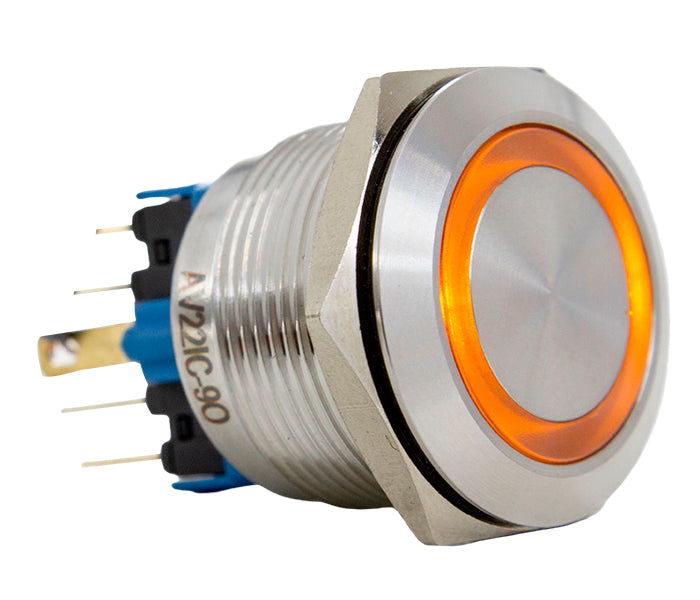

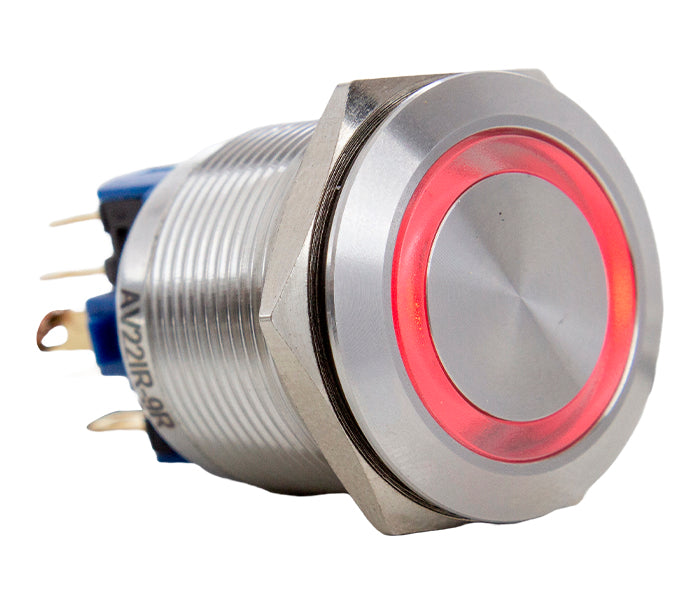

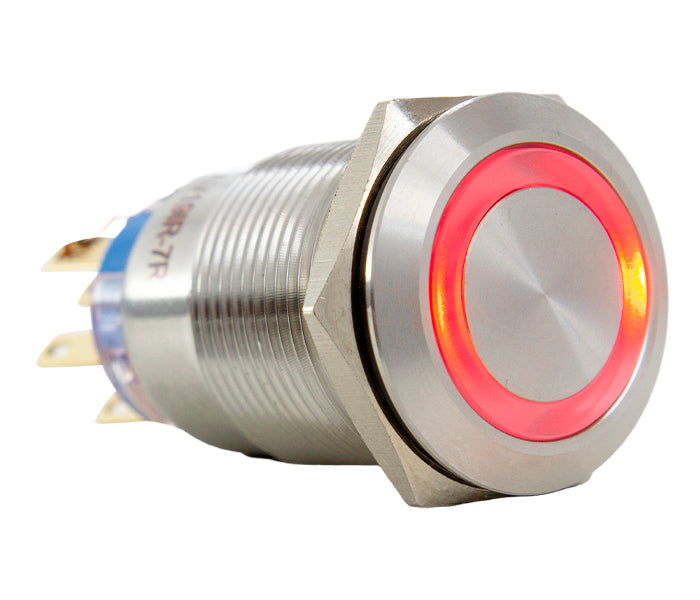

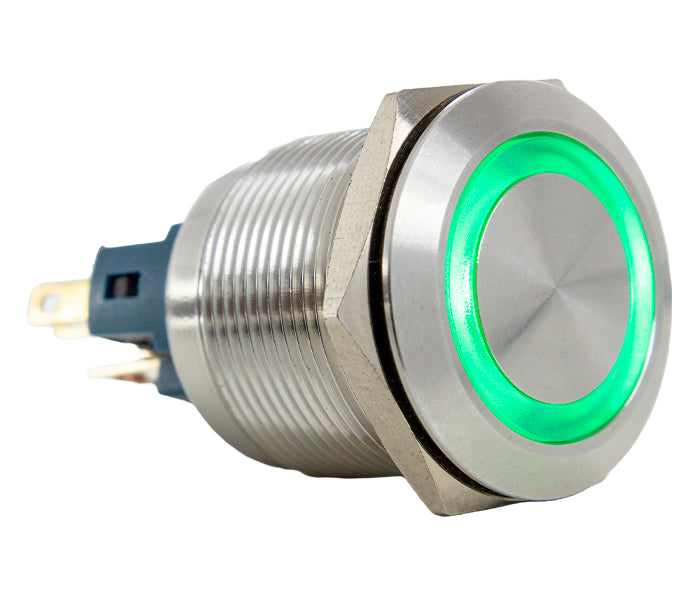

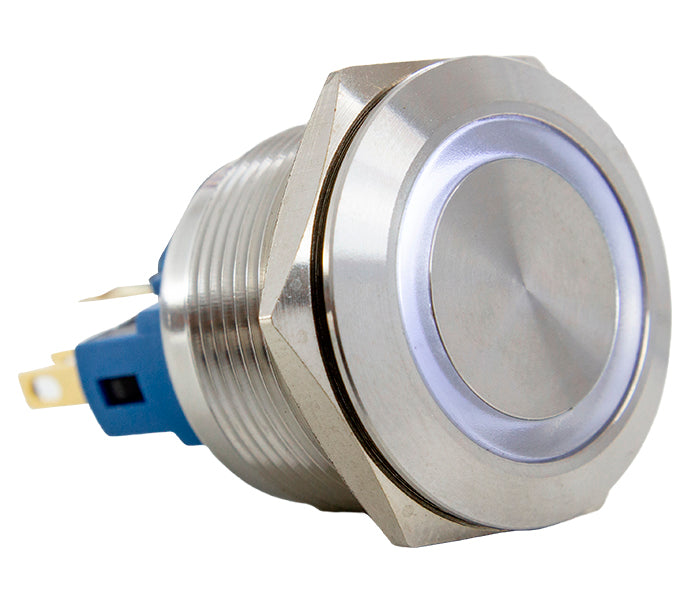

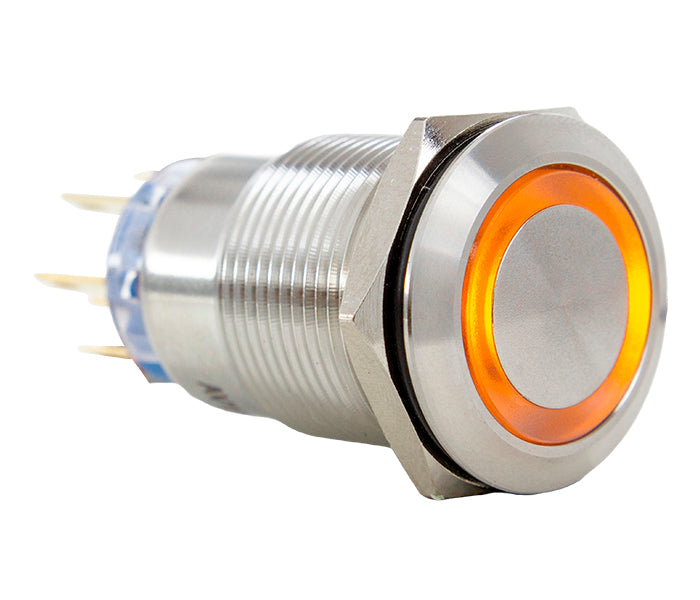

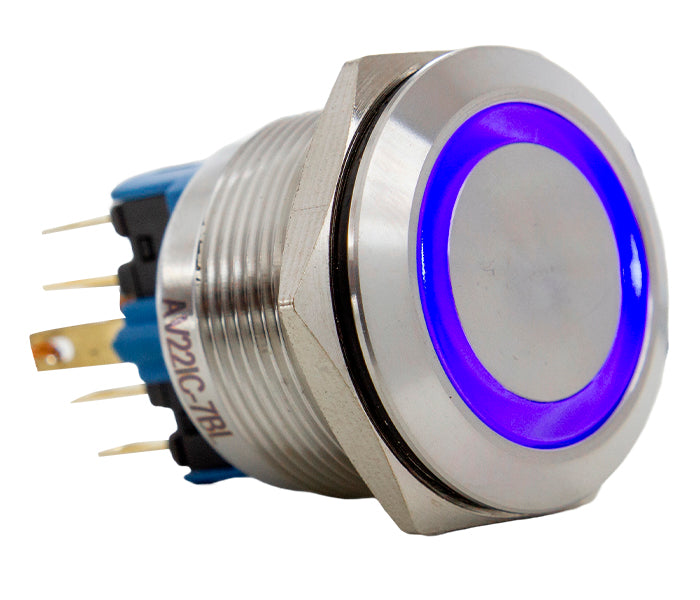

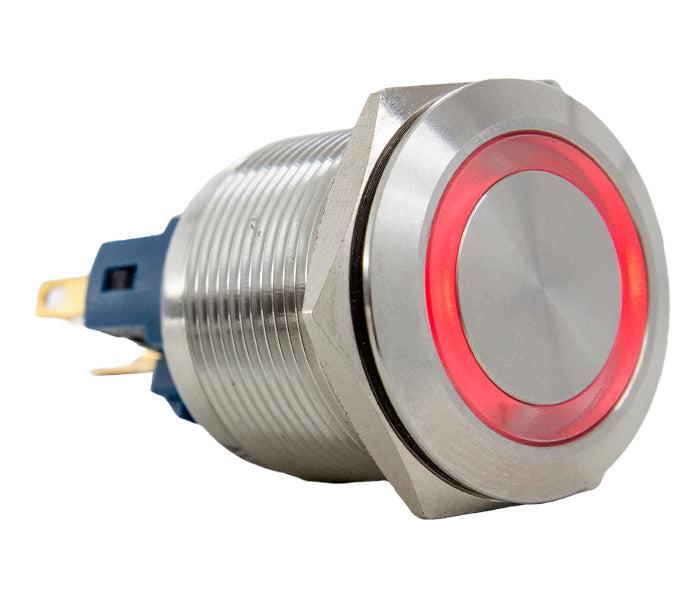

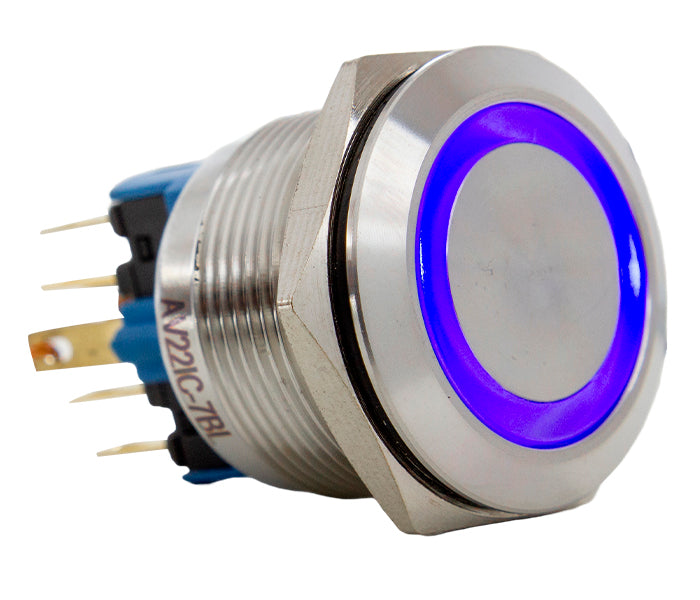

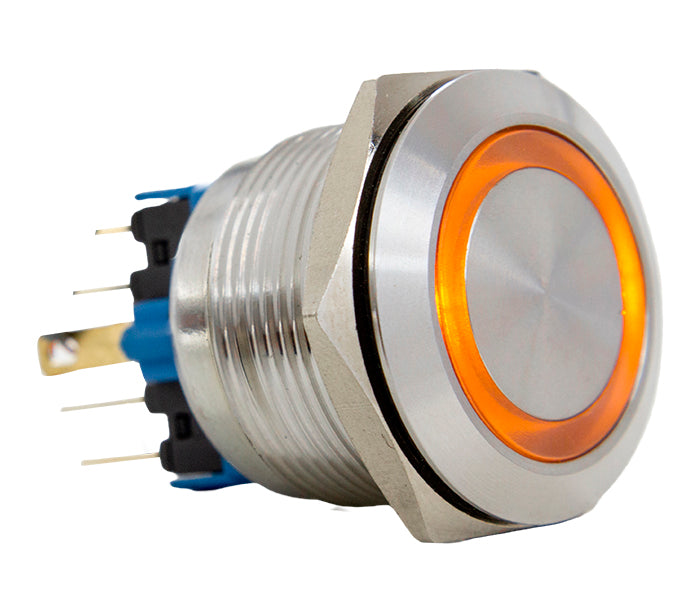

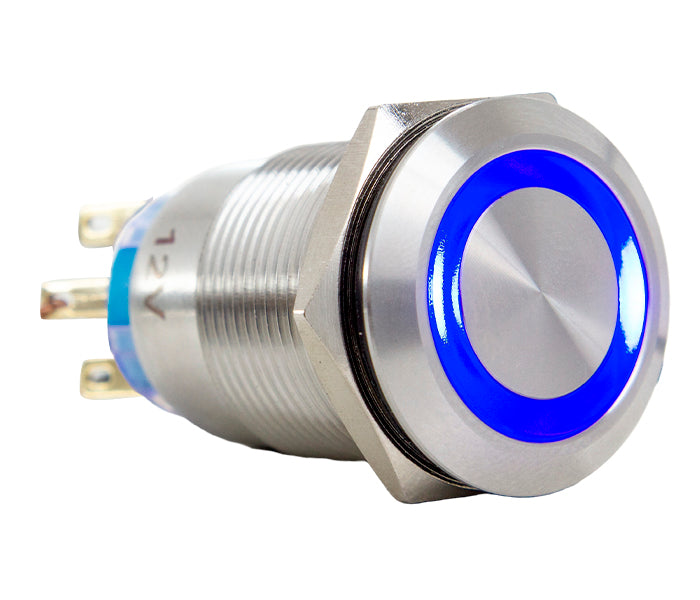

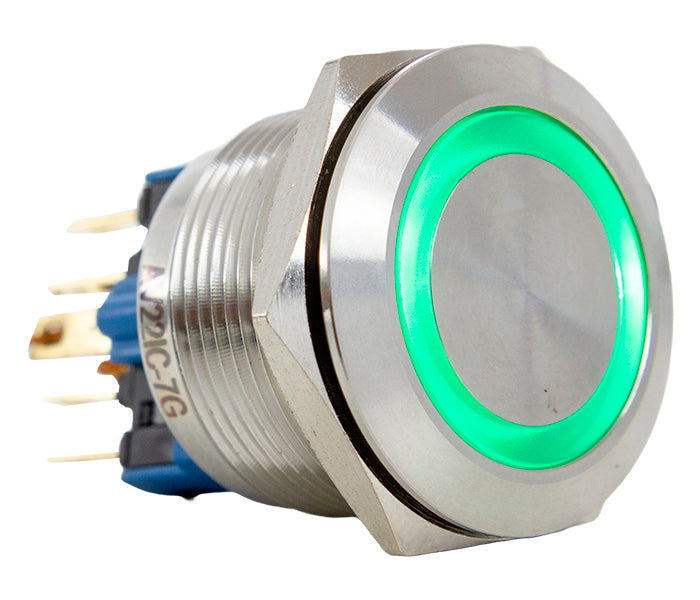

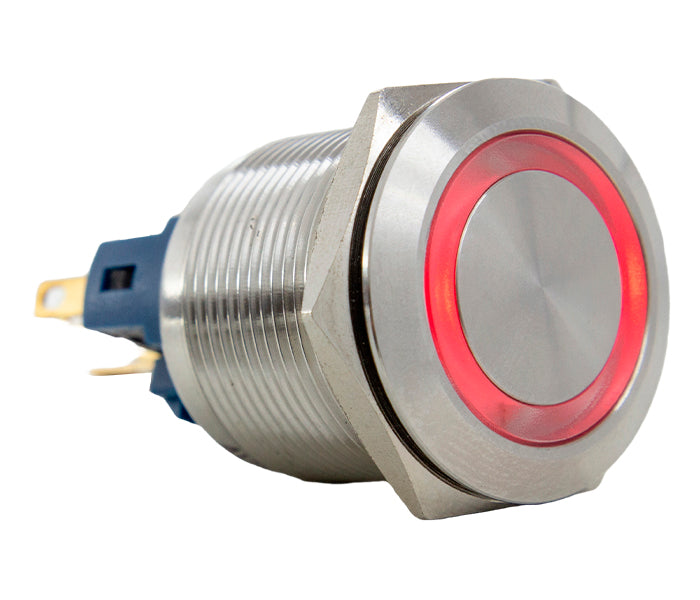

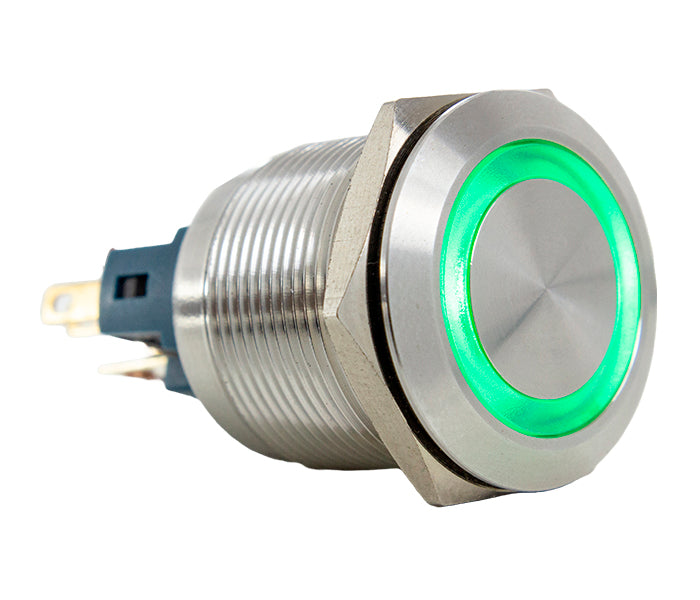

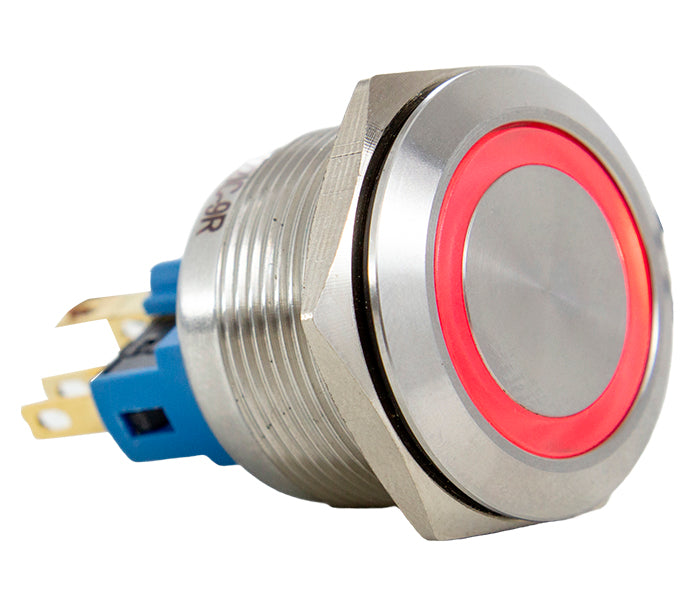

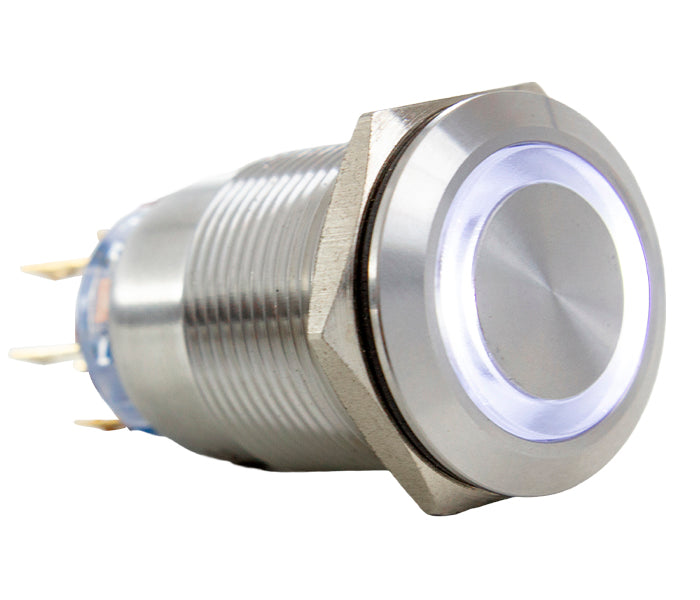

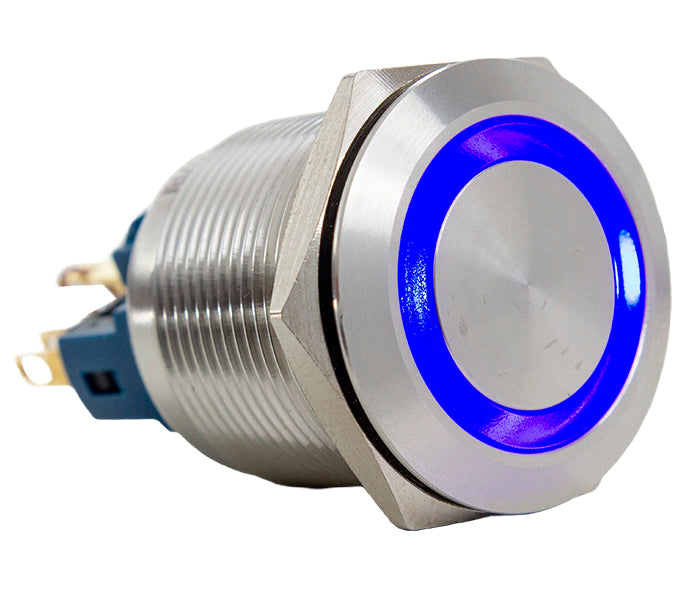

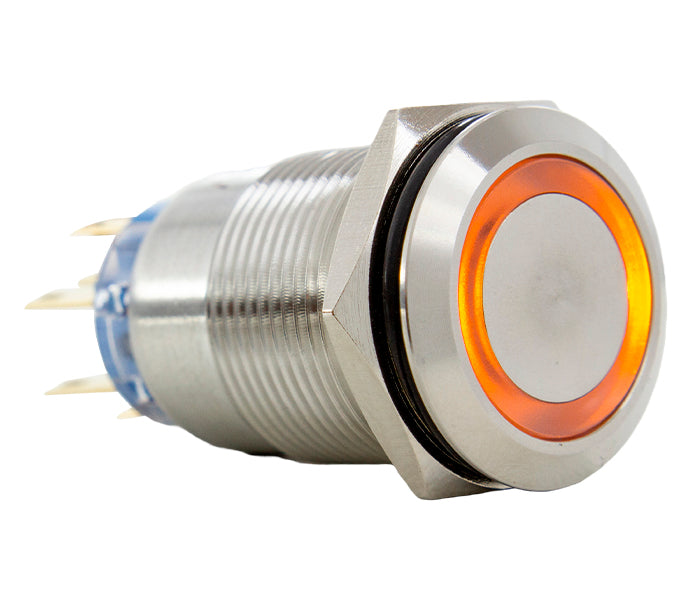

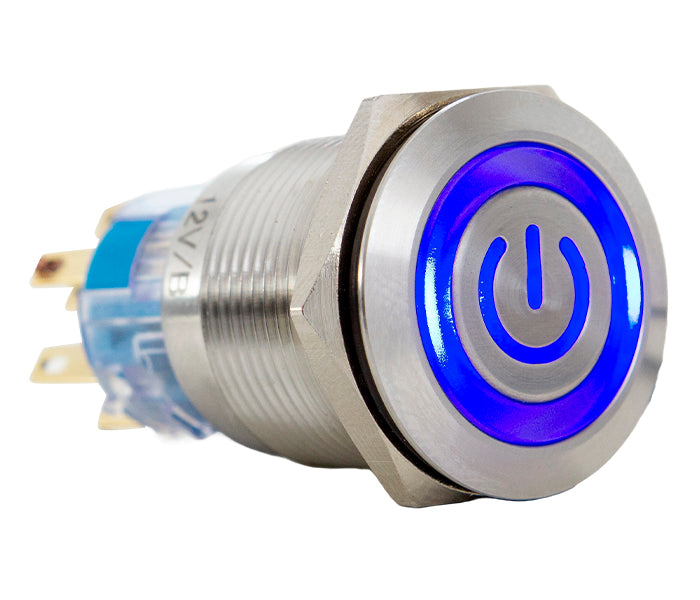

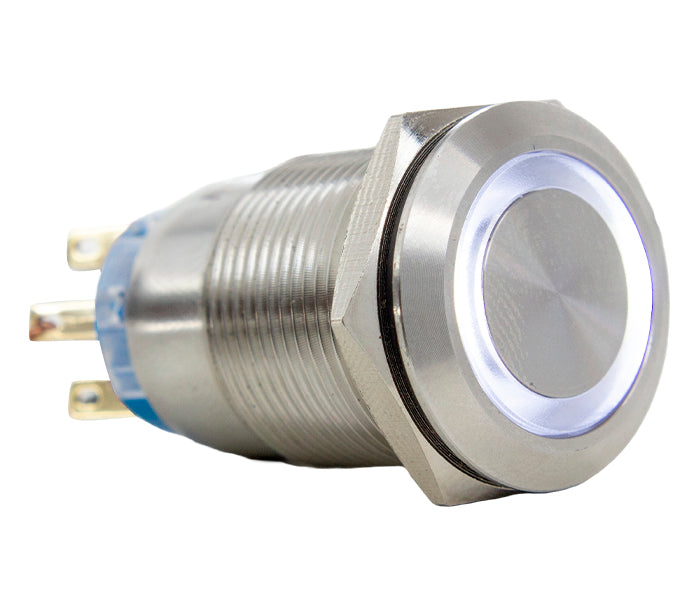

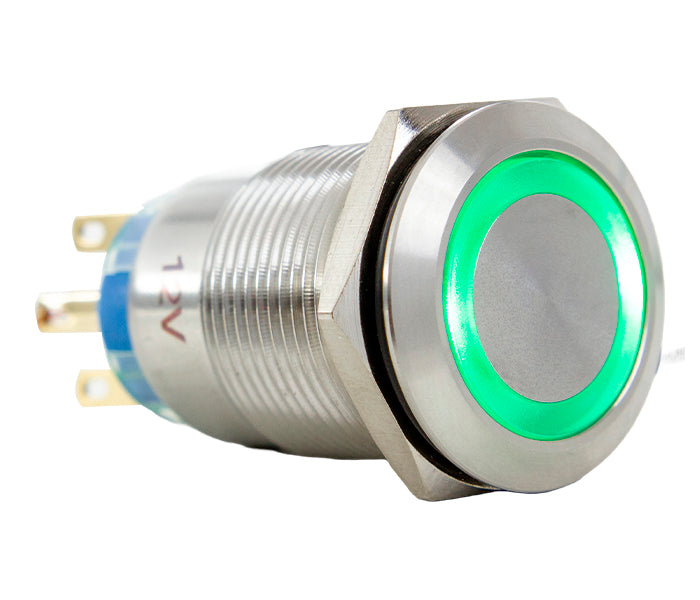

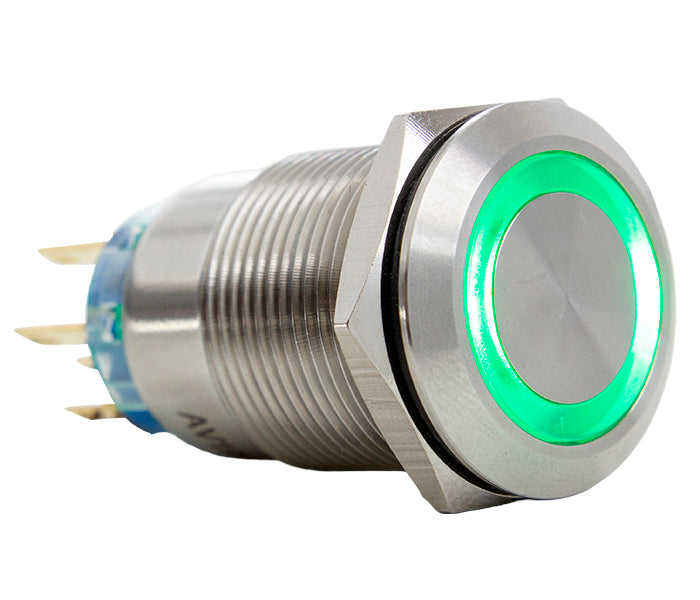

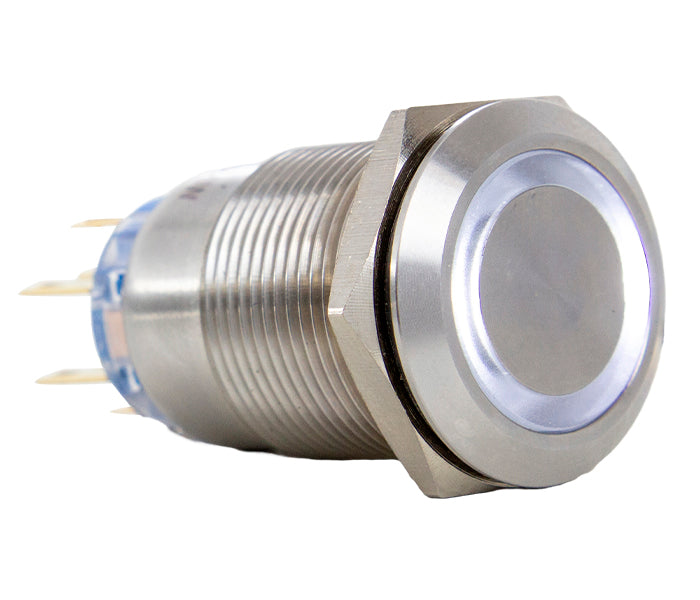

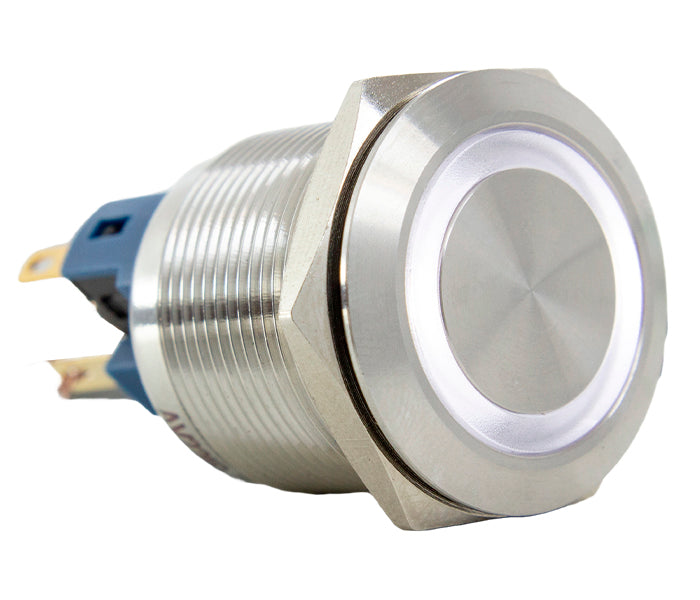

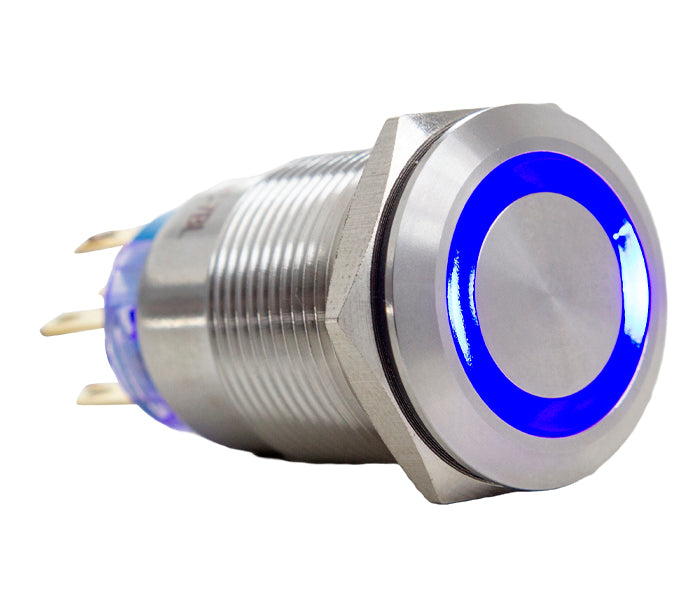

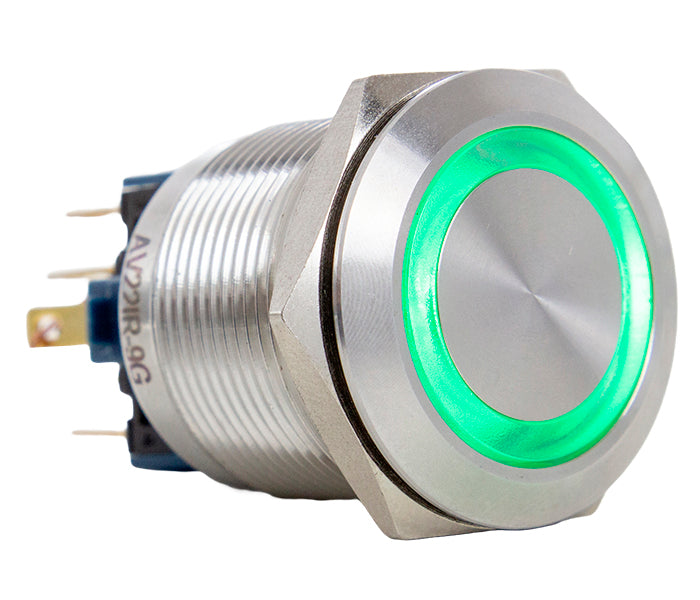

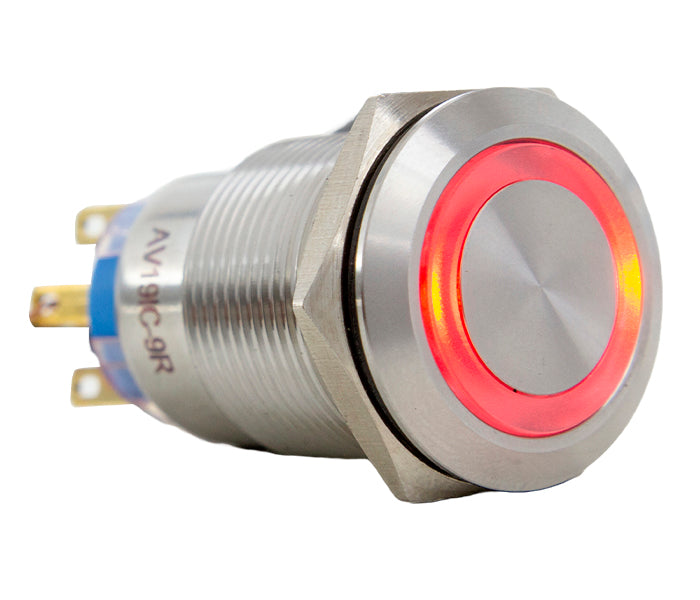

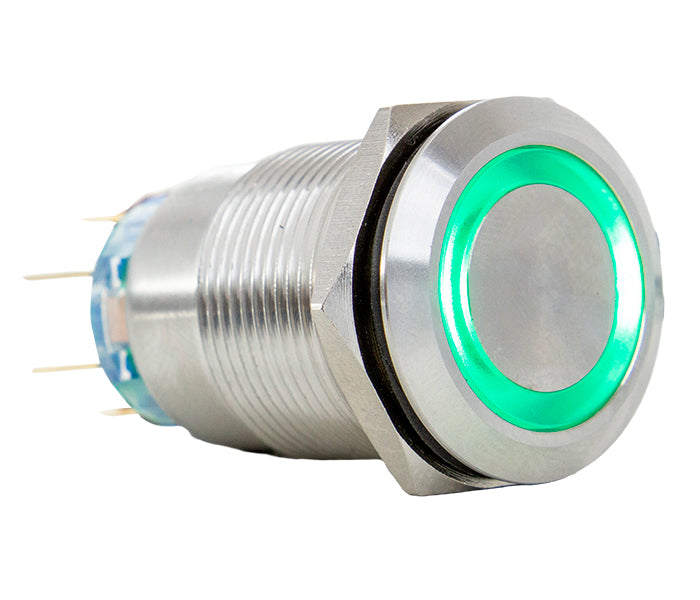

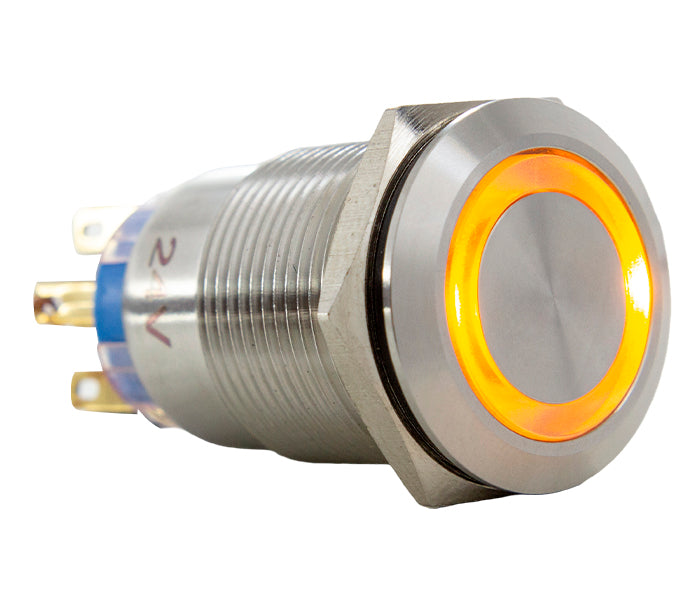

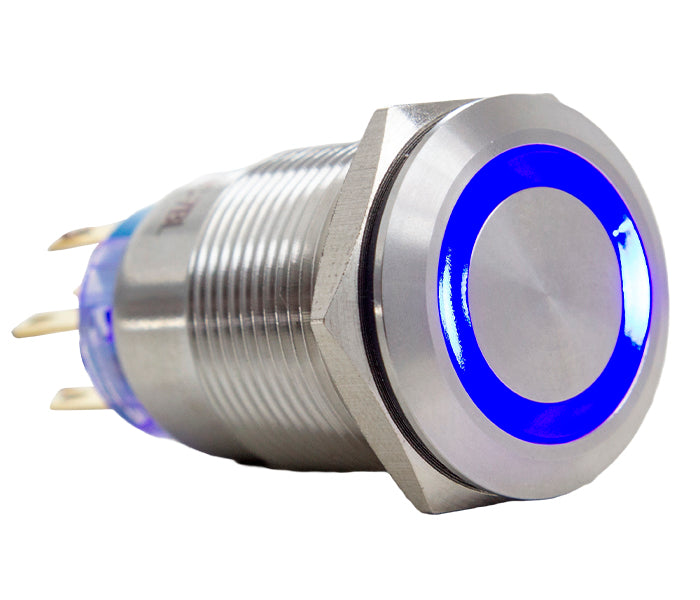

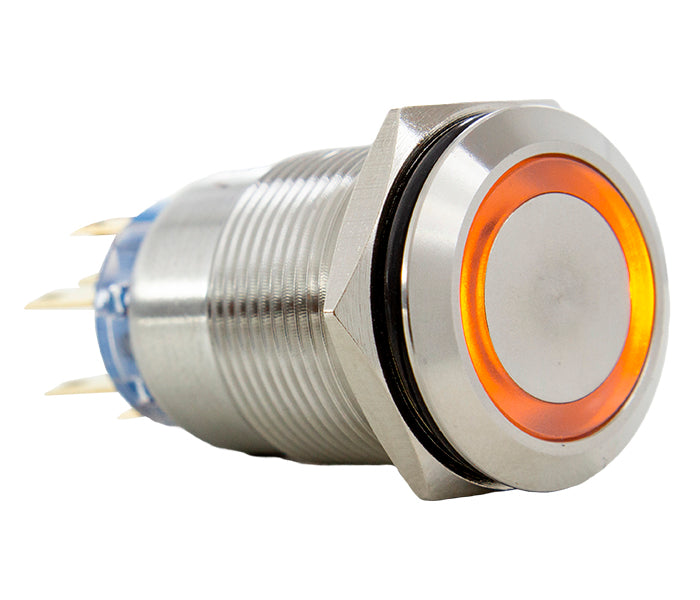

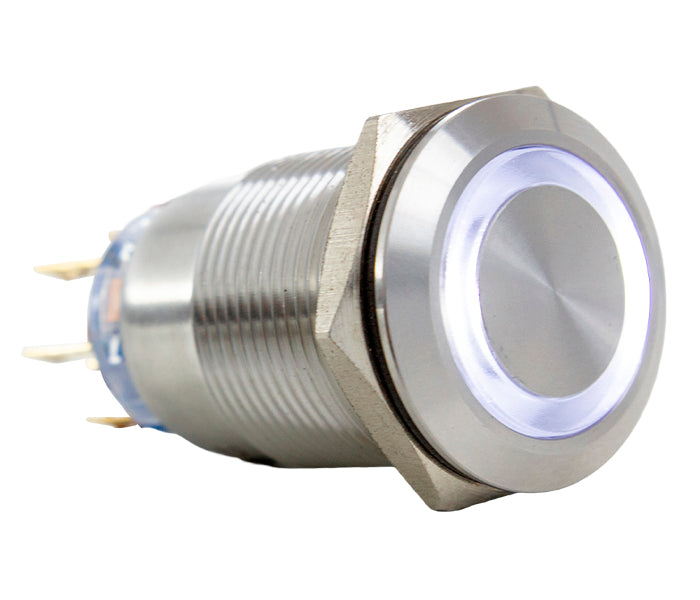

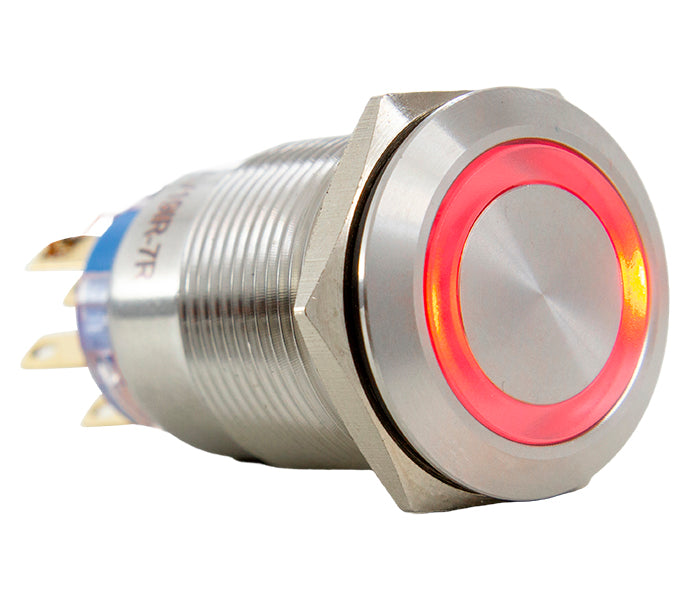

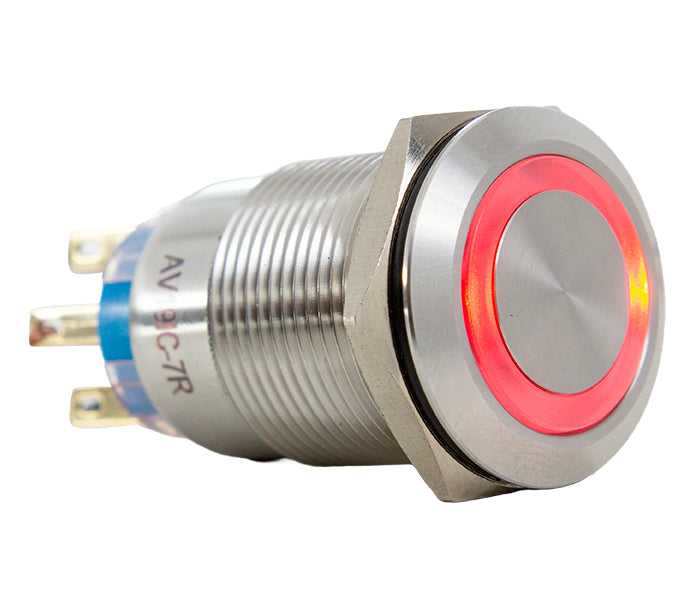

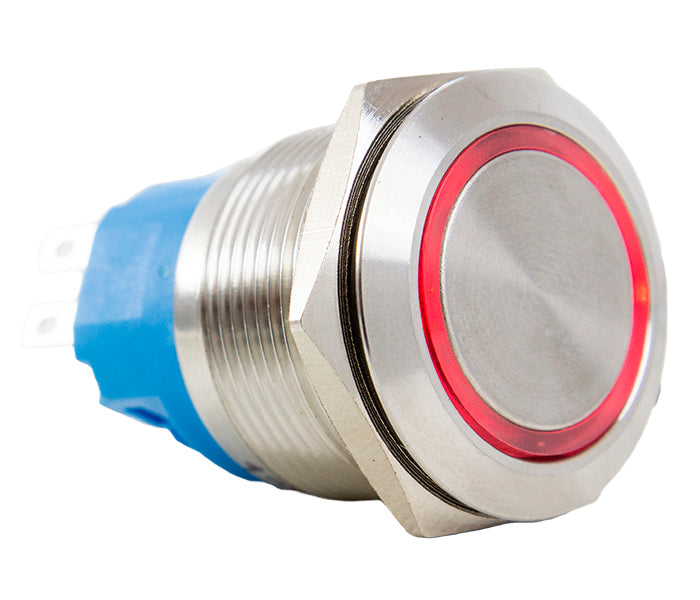

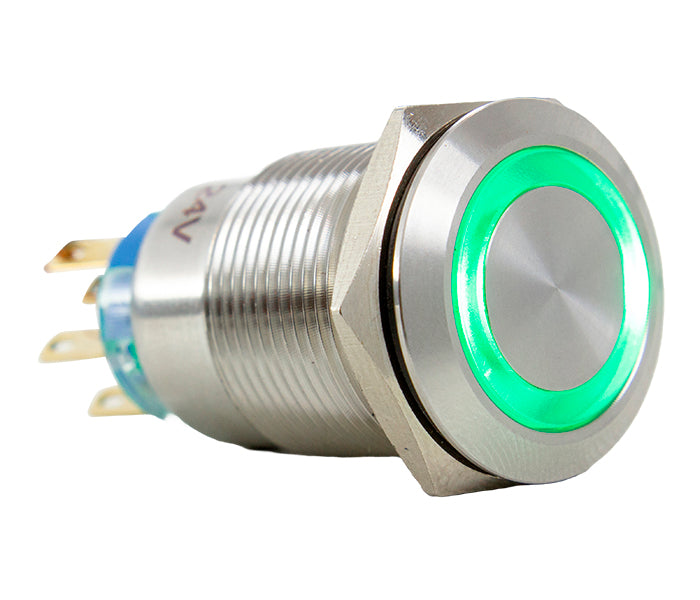

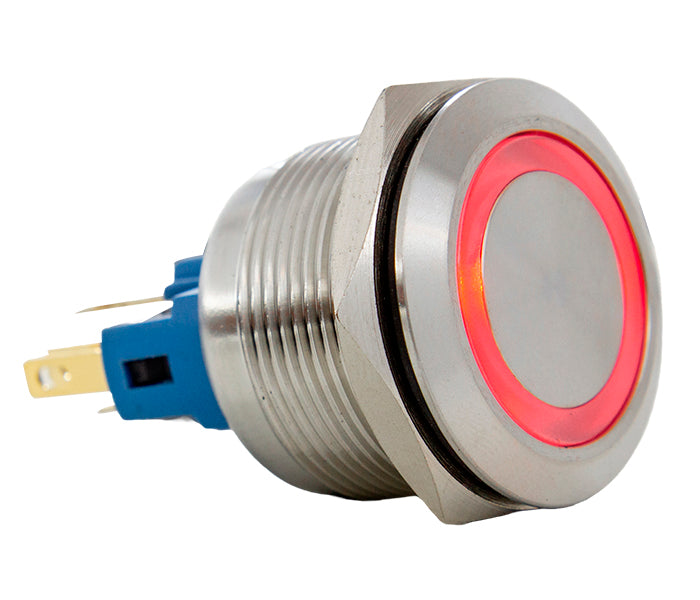

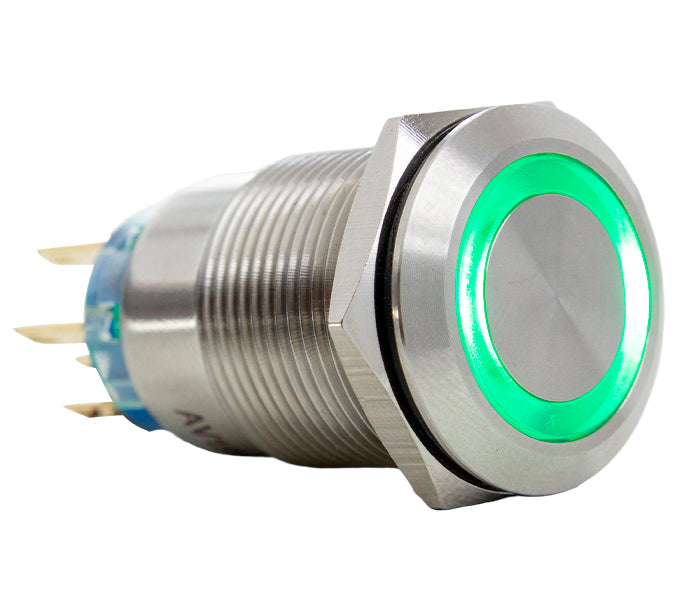

Vandal-proof Push Button Switch Illuminated

CÓD: AV22IC-9BL

Description

The AV line of illuminated pushbuttons offers versatile solutions for control and signaling in electrical panels. With momentary and alternate options, it meets various industrial applications with high reliability. It has IP65 protection rating and robust construction, ensuring performance even in demanding environments.

  • Contact options: 2 CO, 1 CO and 1 NO + 1 NC
  • Panel cutout: 19 mm and 22 mm
  • Momentary and alternate operation mode
  • IP65 protection rating

Select the options below

General specifications
ModelAV19ICAVP19ICAV22IMAV22ICAVP22ICAV19IRAVP19IRAV22IRAVP22IR
Contact arrangement2 Rev1 Rev1NA + 1NF2 Rev1NA + 1NF
Mounting diameter19 mm22 mm19 mm22 mm
Operating modeMomentaryAlternating
Degree of protectionIP65
TerminalFaston 2.8x0.5 or solda (250 °C max. 3 seg)
Operating temperature-20 ~ 55 °C
Electrical life200,000 operations min.
Mechanical life800,000 operations min.400,000 operations min.
Initial contact resistance<50 mΩ max.
Insulation resistance1 GΩ min. - 500 V
Dielectric strength2000 VAC - 1 minuto
Contact rating5A - 48 VDC / 5A - 250 VAC
