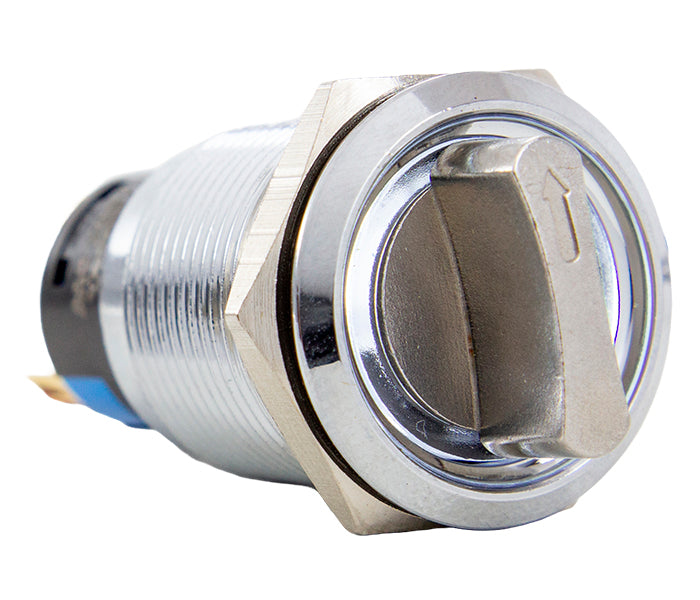

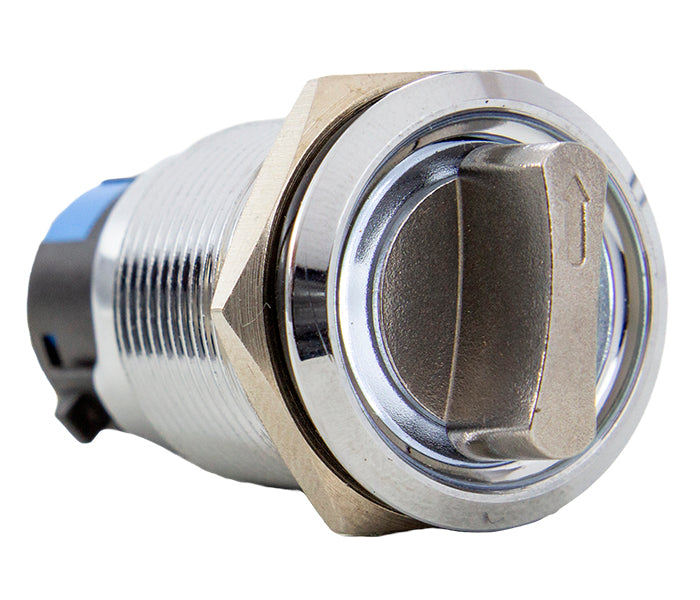

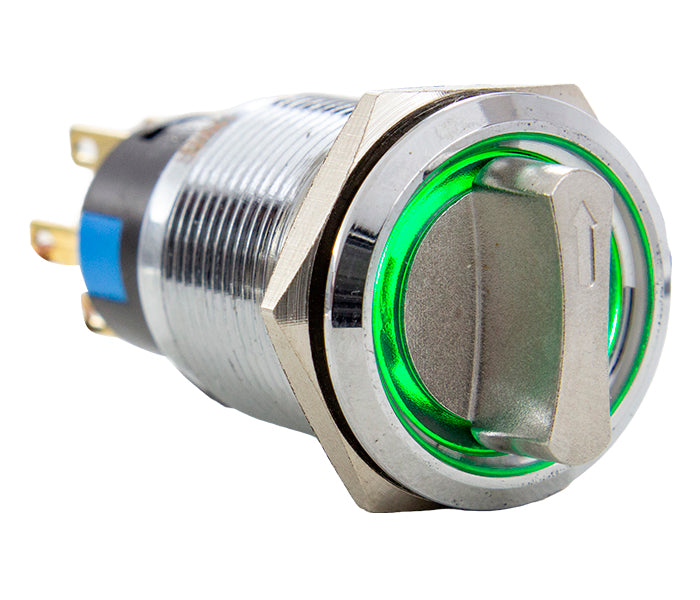

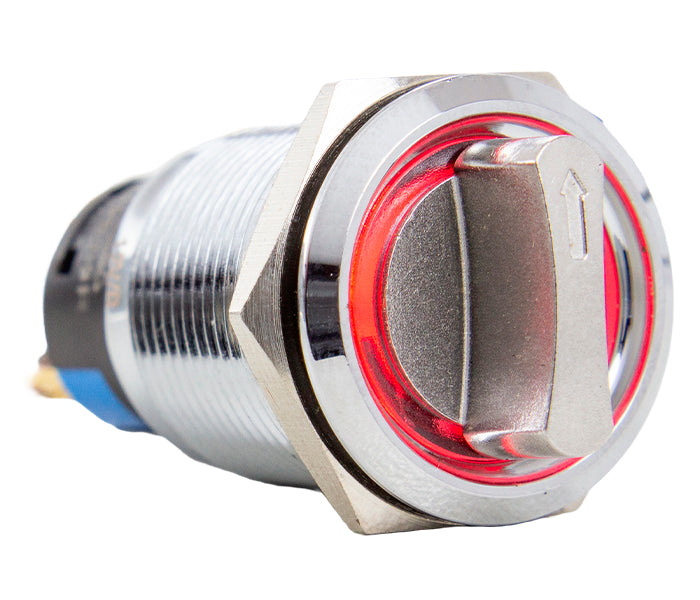

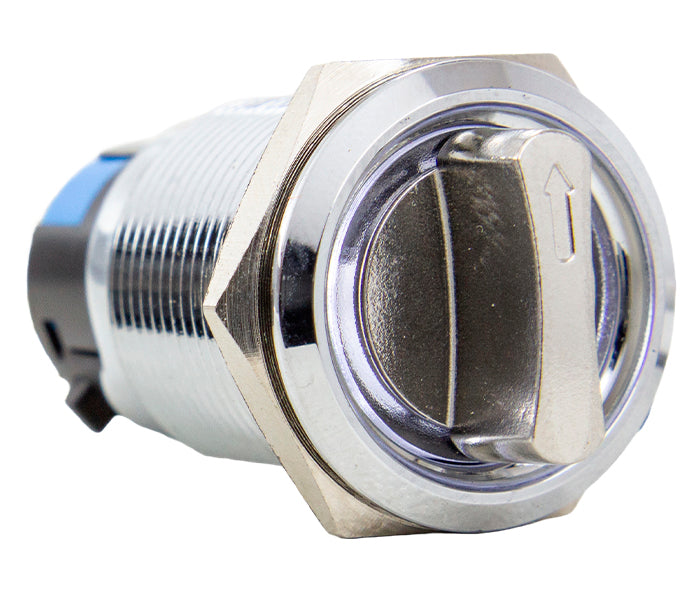

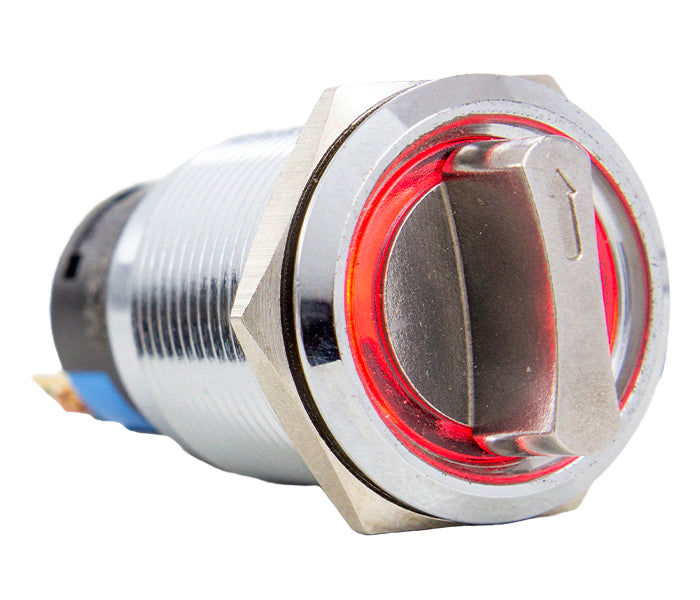

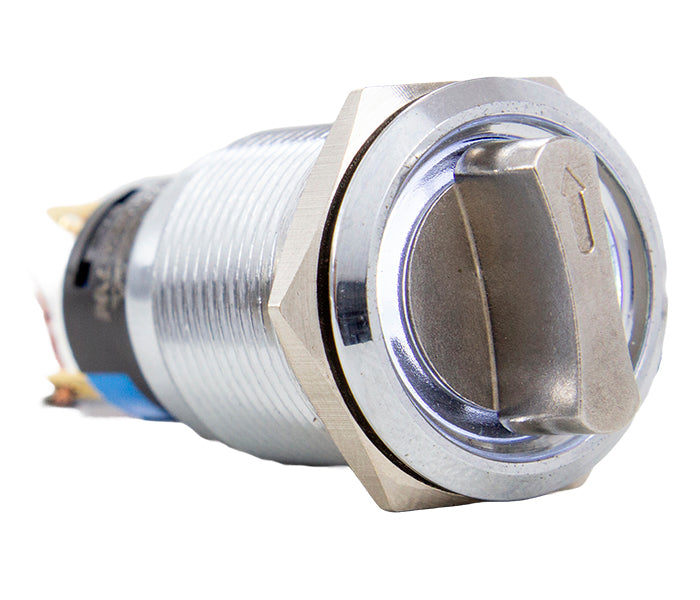

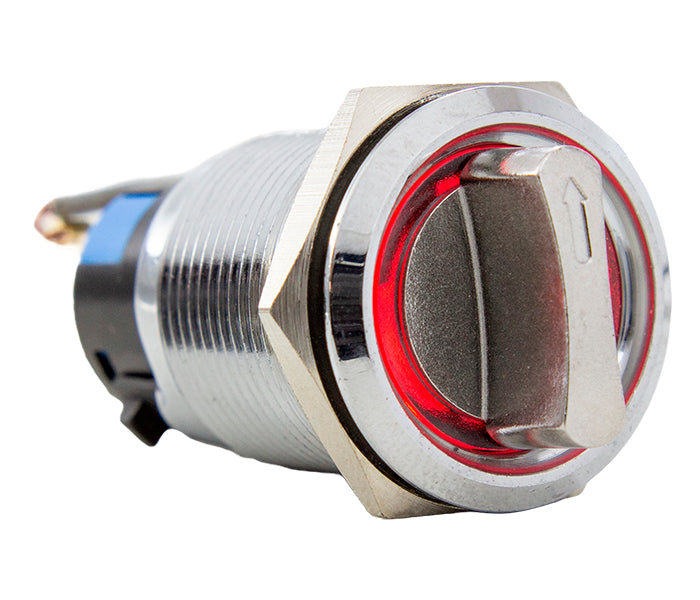

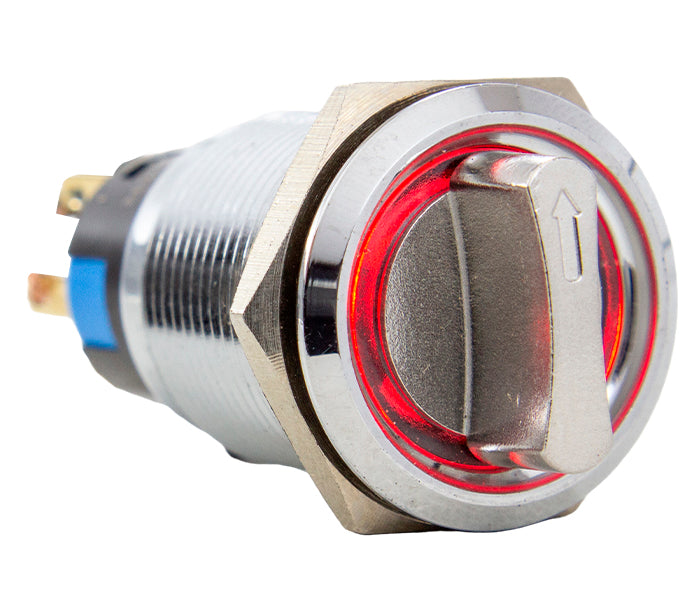

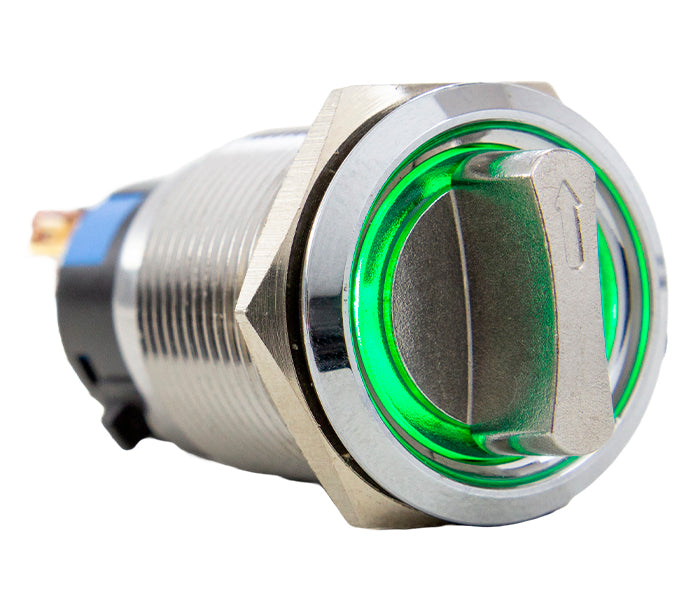

19mm Illuminated Anti-Vandal AV Selector Switch

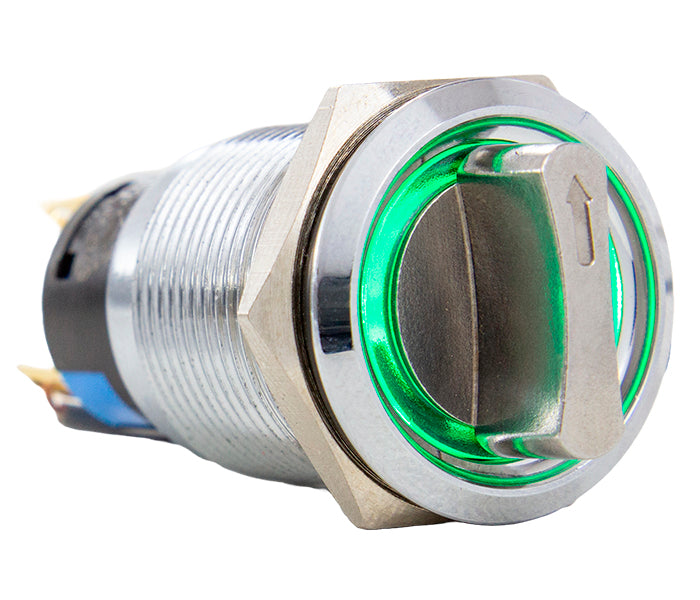

CÓD: AV19S2-7G

Description

AV series selector switch, developed for position control in industrial panels with a robust design and metallic finish. Available in versions with 2 or 3 positions and lighting options, it offers reliability, precision, and easy visual identification.

  • Stainless steel body and liquid ingress protection
  • Available with 2 or 3 positions
  • 12V or 24V (AC/DC) power supply

Select the options below

General specifications
ModelAV19ICAVP19ICAV22IMAV22ICAVP22ICAV19IRAVP19IRAV22IRAVP22IR
Contact arrangement2 Rev1 Rev1NA + 1NF2 Rev1NA + 1NF
Mounting diameter19 mm22 mm19 mm22 mm
Operating modeMomentaryAlternating
Degree of protectionIP65
TerminalFaston 2.8x0.5 or solda (250 °C max. 3 seg)
Operating temperature-20 ~ 55 °C
Electrical life200,000 operations min.
Mechanical life800,000 operations min.400,000 operations min.
Initial contact resistance≤50 mΩ max.
Insulation resistance1 GΩ min. - 500 V
Dielectric strength2000 VAC - 1 minuto
Contact rating5A - 48 VDC / 5A - 250 VAC
