Illuminated 22mm Metallic Selector Switch M20
CÓD: M20ICR2-Y7-1A
Description
Description
M20 series illuminated selector switches, designed for position control in industrial systems with high reliability. Available in different actuation and contact configurations, they offer versatility and robustness for various applications in control panels.
- Available in 2 or 3 fixed positions (45° or 90°)
- Integrated illumination for better visibility
- 1NO or 2NO contact options
- 24V or 220V power supply
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| M20ICR2-Y7-1A | 24VAC/VDC / Yellow / 1NO · 2 Fixed Positions 90° |

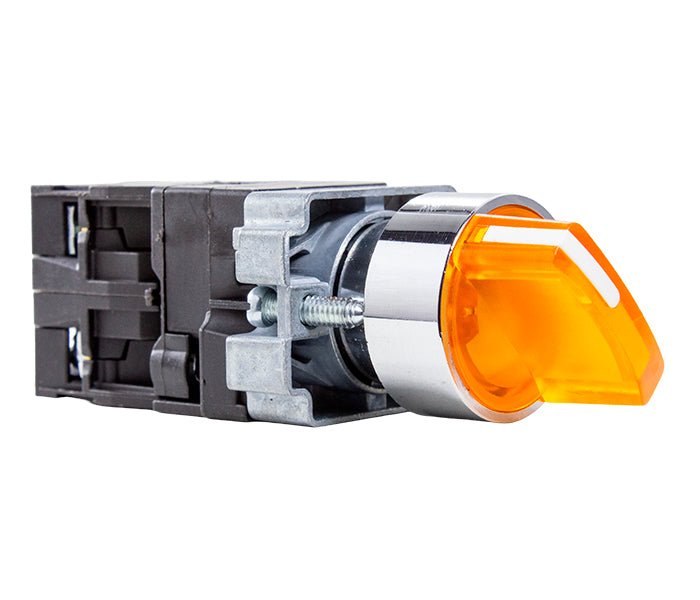

| M20ICR4-Y7-2A | 24VAC/VDC / Yellow / 2-pole · 3 Fixed Positions 45° |

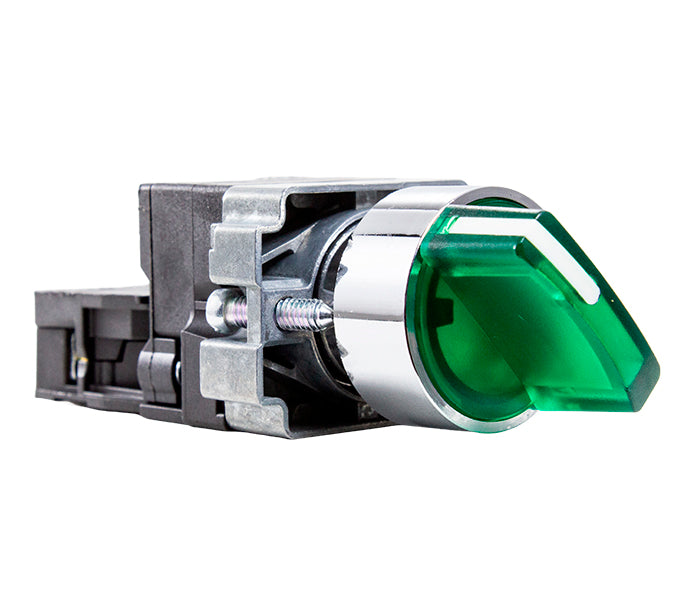

| M20ICR2-G7-1A | 24VAC/VDC / Green / 1NO · 2 Fixed Positions 90° |
| M20ICR2-G7-2A | 24VAC/VDC / Green / 2NO · 2 Fixed Positions 90° |
| M20ICR4-G7-2A | 24VAC/VDC / Green / 2-pole · 3 Fixed Positions 45° |
| M20ICR2-R7-1A | 24VAC/VDC / Red / 1NO · 2 Fixed Positions 90° |
| M20ICR4-R7-2A | 24VAC/VDC / Red / 2-pole · 3 Fixed Positions 45° |

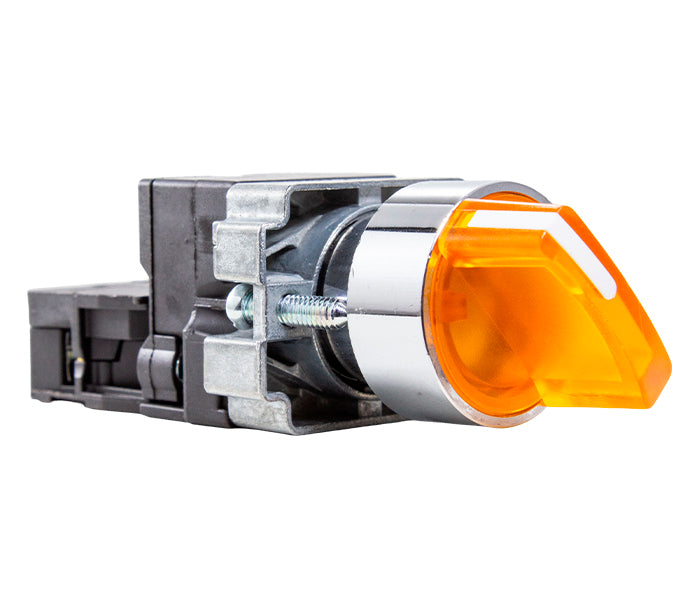

| M20ICR2-Y-1A | 220VAC/VDC / Yellow / 1NO · 2 Fixed Positions 90° |
| M20ICR4-Y-2A | 220VAC/VDC / Yellow / 2-pole · 3 Fixed Positions 45° |

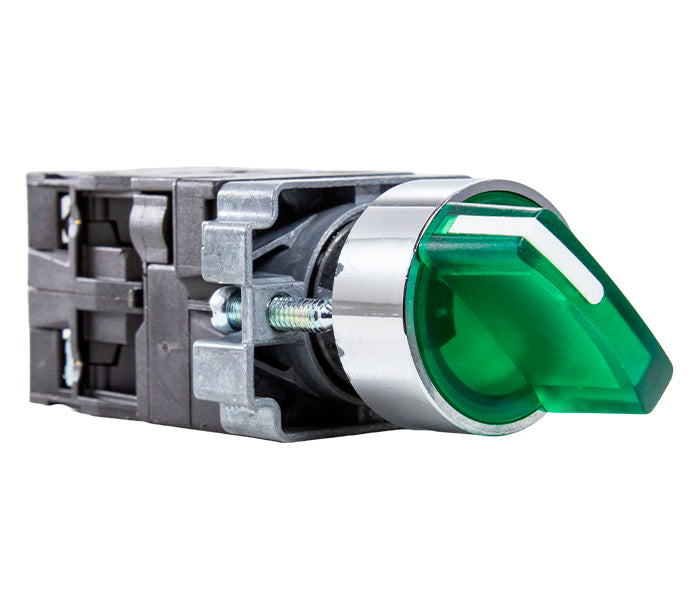

| M20ICR4-G-2A | 220VAC/VDC / Green / 2-pole · 3 Fixed Positions 45° |

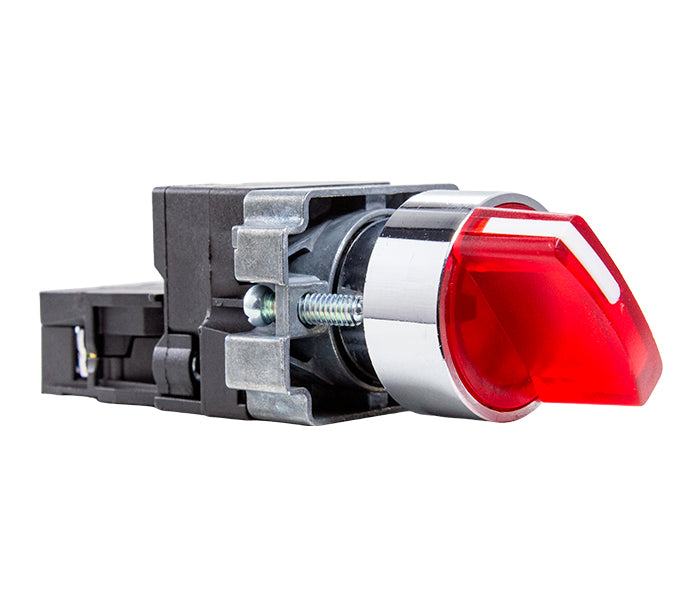

| M20ICR2-R-1A | 220VAC/VDC / Red / 1NO · 2 Fixed Positions 90° |

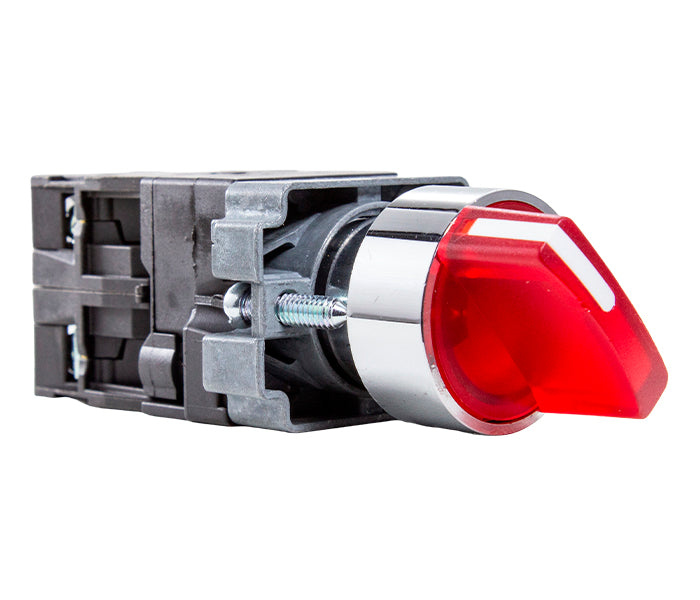

| M20ICR4-R-2A | 220VAC/VDC / Red / 2-pole · 3 Fixed Positions 45° |
