M20 Metal Selector Switch 22mm
CÓD: M20SCR2-B-1A
Description
Description
Selector switches from the M20 series, designed for position control in industrial systems with high reliability. Available in various actuation and contact configurations, they offer versatility and robustness for diverse applications in control panels.
- Metal body
- Options with 2 or 3 positions (maintained or spring return)
- Available with short handle, long handle, or key
- Contact configurations 1NO, 2NO, or 1NO + 1NC
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| M20SCR2-B-1A | 1ST / Short Knob / 2 Fixed 90° Positions |

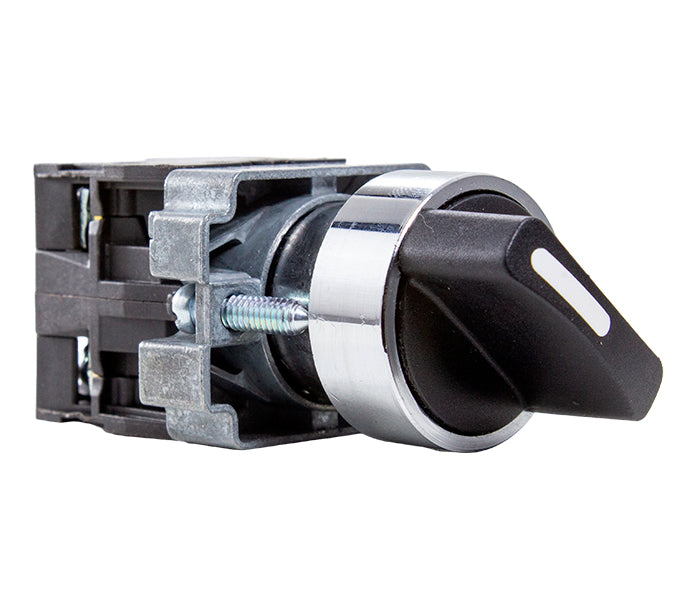

| M20SCR2-B-1C | 1NO+1NC / Short Knob / 2 Fixed 90° Positions |

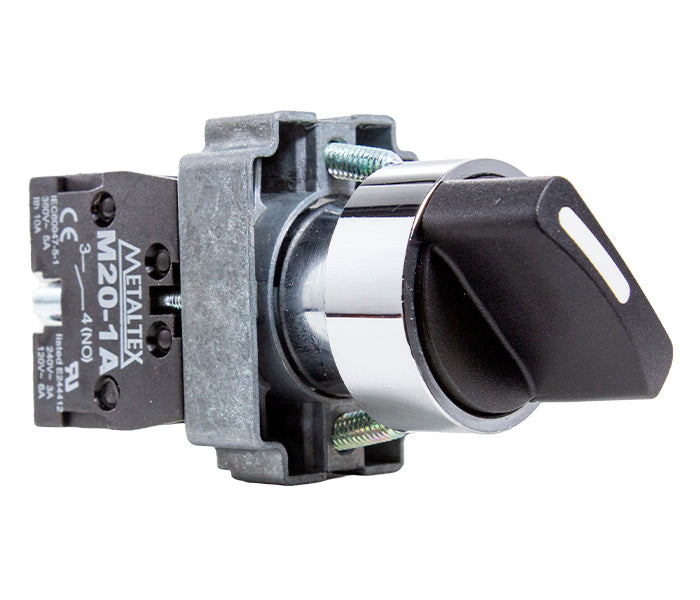

| M20SCR3-B-1A | 1ST / Short Knob / 2 Return Positions 90° |

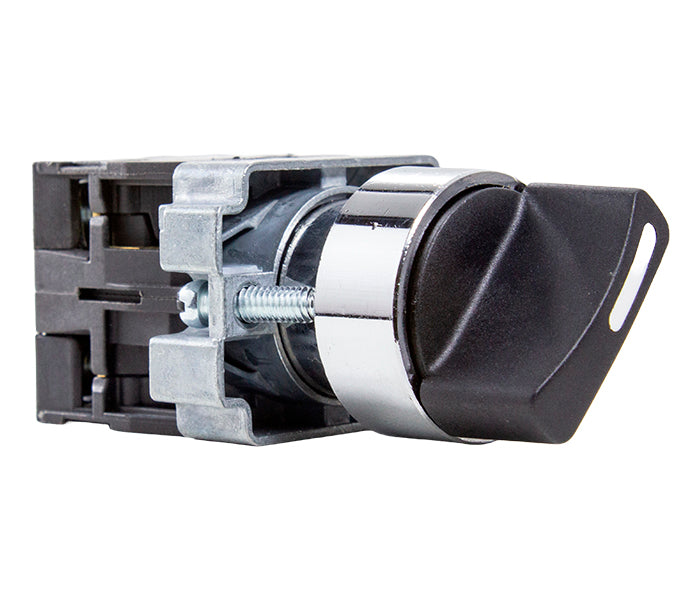

| M20SCR3-B-1C | 1NO+1NC / Short Knob / 2 Return Positions 90° |

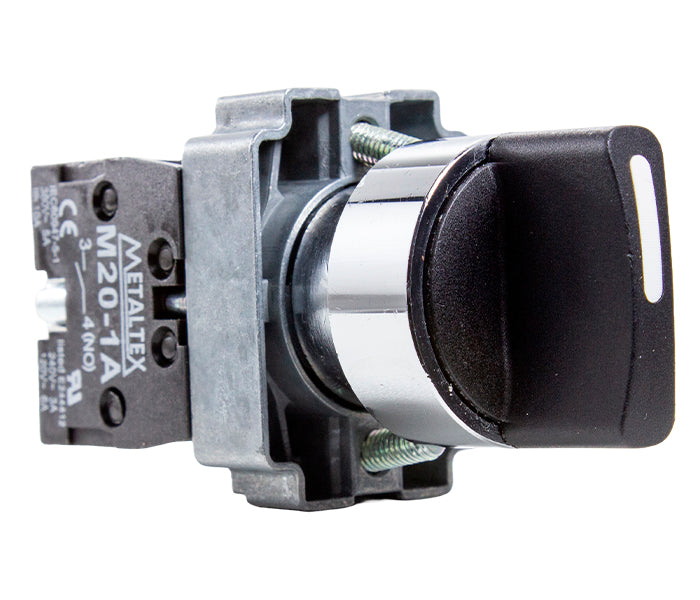

| M20SCR4-B-2A | 2NA / Short Knob / 3 Fixed Positions 45° |

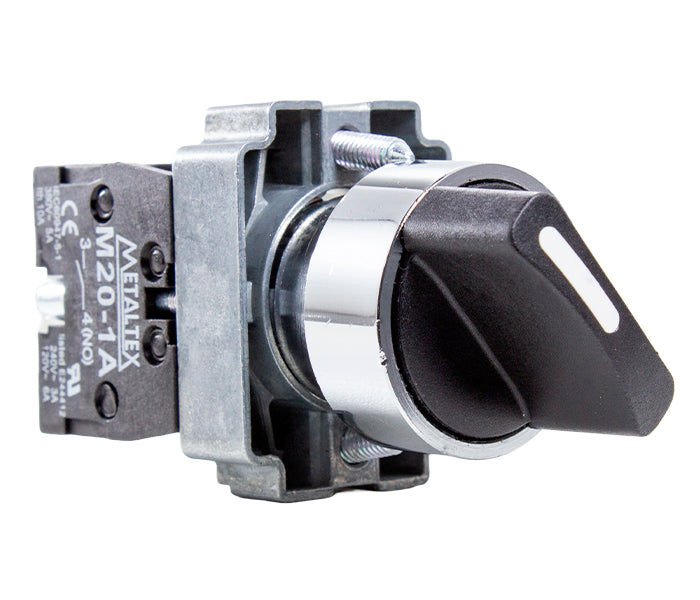

| M20SCR5-B-2A | 2NA / Short Knob / 3 Positions Fixed Right and Left Return 45° |

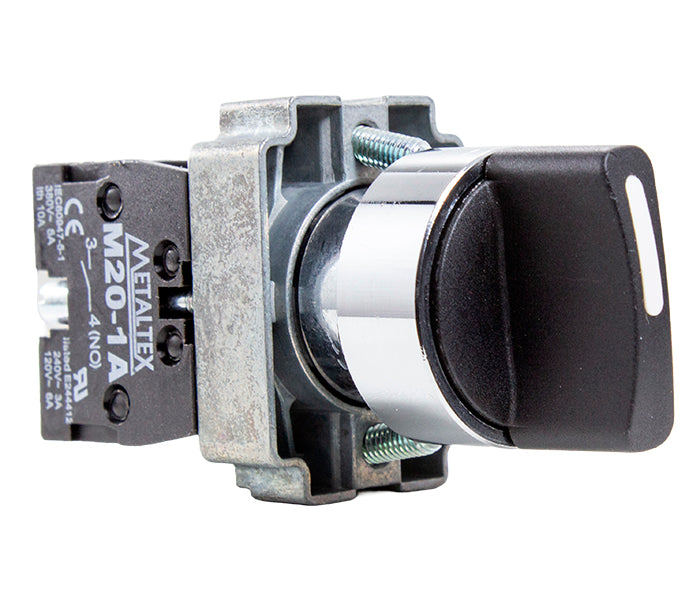

| M20SCR6-B-2A | 2NA / Short Knob / 3 Positions Left and Right Fixed Return 45° |

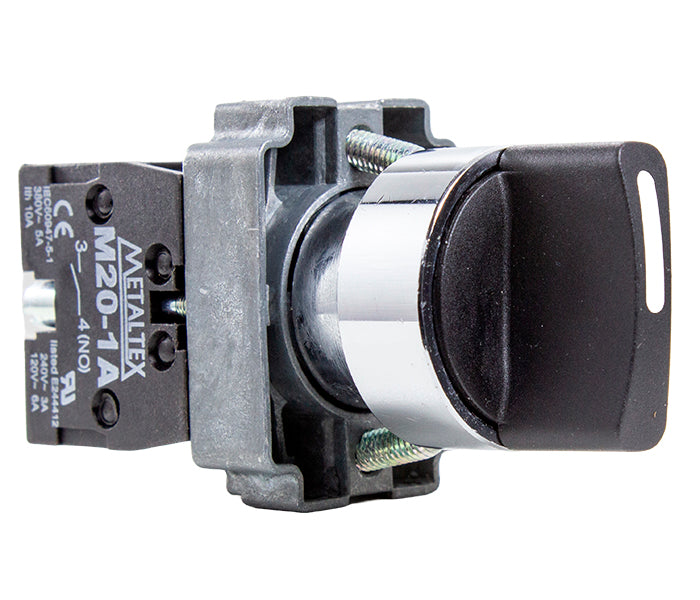

| M20SCR7-B-2A | 2NA / Short Knob / 3-Position Right and Left Return 45° |

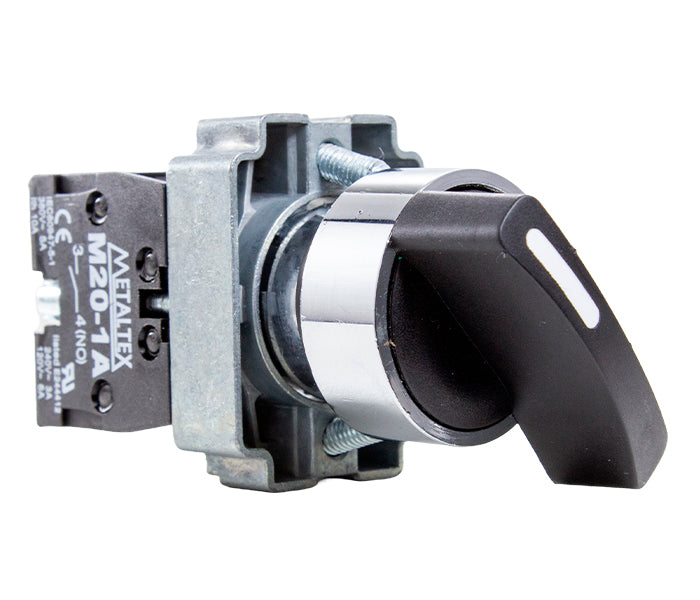

| M20SLR2-B-1A | 1ST / Long Knob / 2 Fixed 90° Positions |
| M20SLR2-B-2A | 2NA / Short Knob / 2 Fixed 90° Positions |

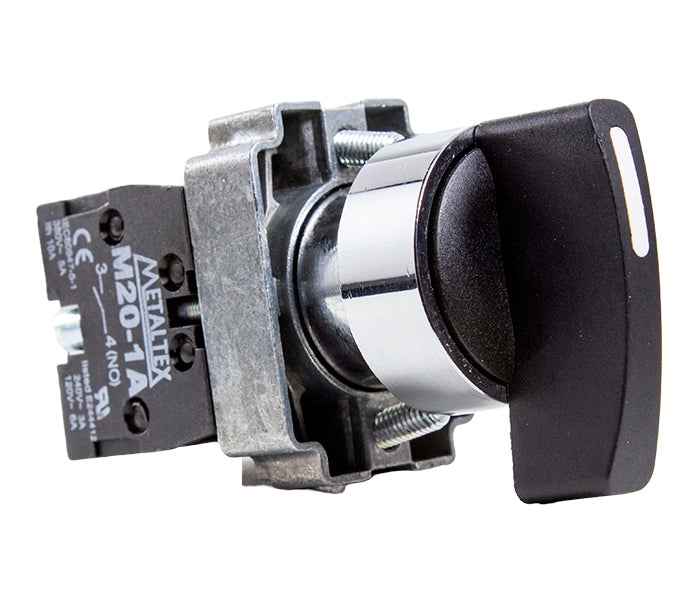

| M20SLR3-B-1A | 2NA / Short Knob / 2 Return Positions 90° |
| M20SLR4-B-2A | 2NA / Long Knob / 3 Fixed Positions 45° |

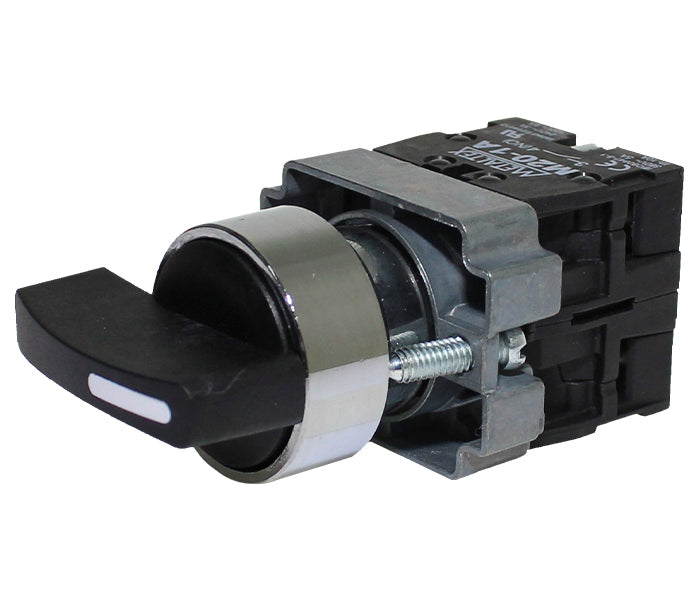

| M20SLR7-B-2A | 2NA / Long Knob / 3-Position Right and Left Return 45° |

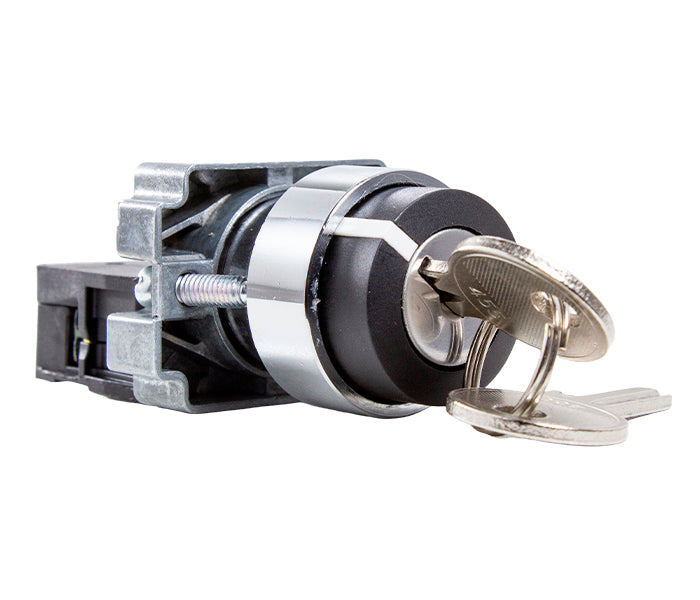

| M20KNR2-B-1A | 1ST / with Key / 2 Fixed 90° Positions |

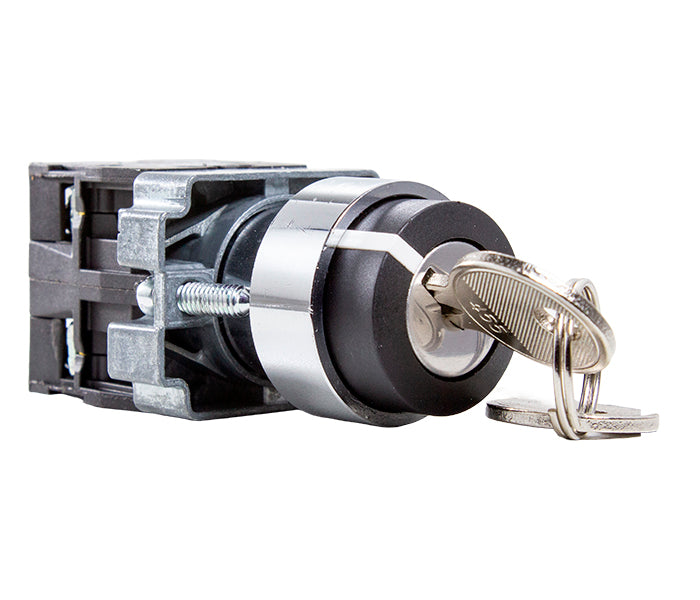

| M20KNR4-B-2A | 2NA / with Key / 3 Fixed Positions 45° |
| M20KSR7-B-2A | 2NA / with Key / 3-Position Right and Left Return 45° |
