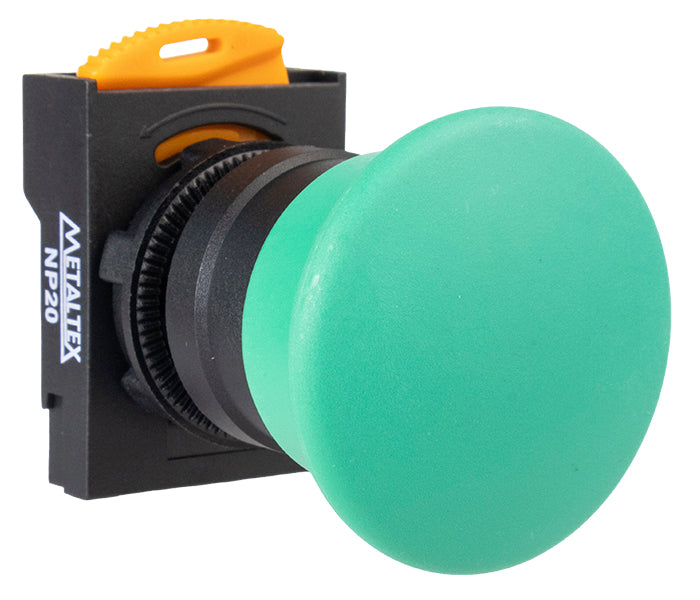

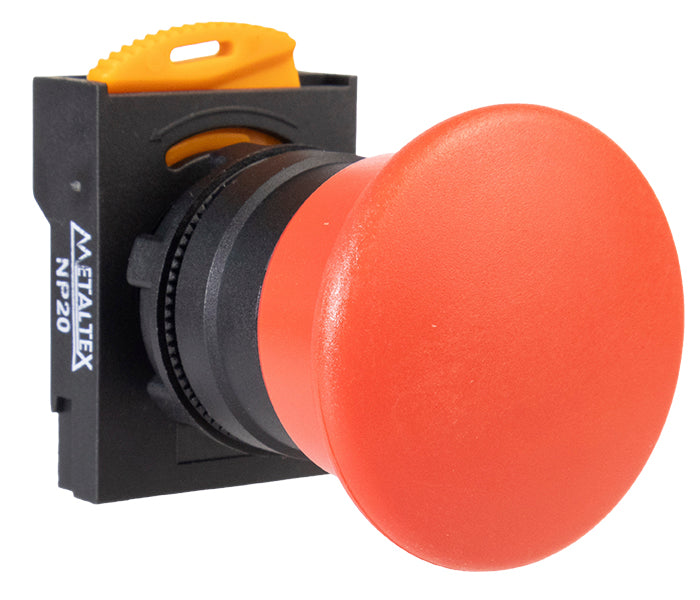

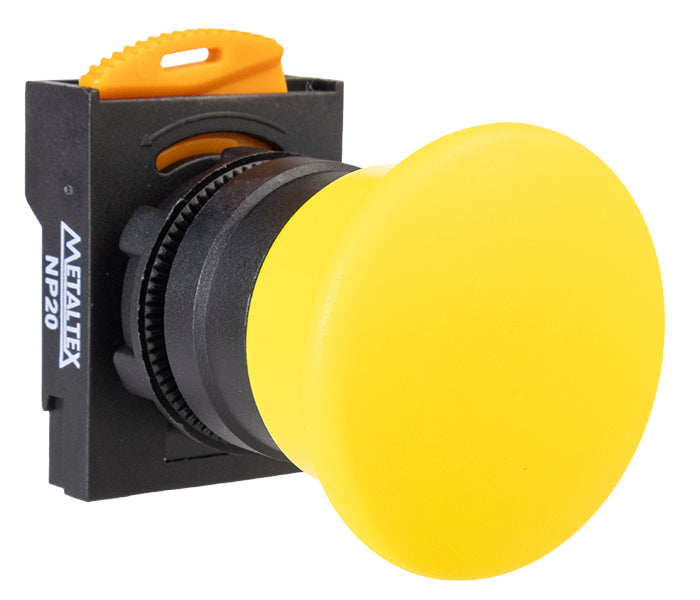

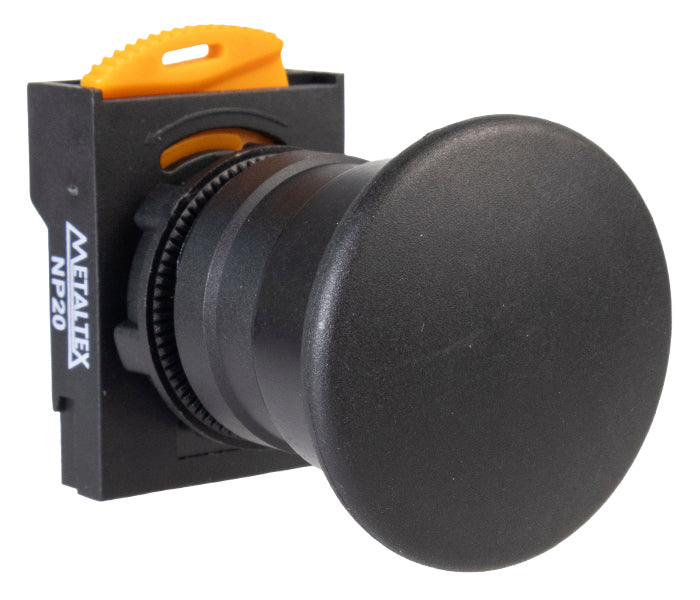

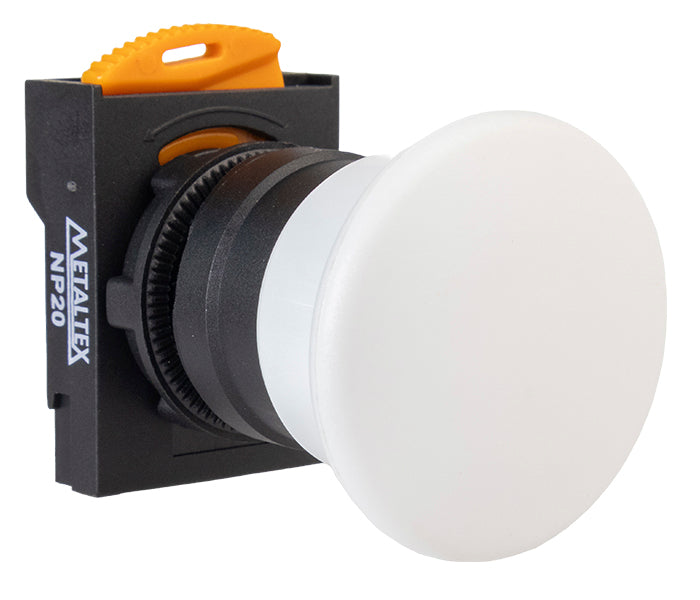

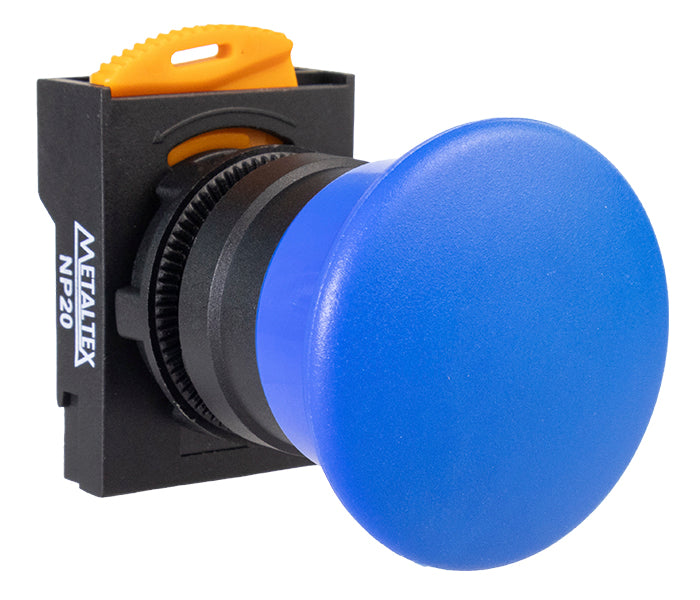

Mushroom Button NP20 Plastic 22mm

CÓD: NP20AM-Y

Description

Modular mushroom-head push button for industrial applications, offering high durability and IP65 protection. Ideal for electrical panels requiring fast and reliable actuation. Contact blocks are sold separately. Up to 4 contact blocks can be added.

  • Plastic body
  • Momentary action
  • IP65 protection rating
  • Available in various colors
  • Modular base for easy installation

Select the options below

General specifications
Protection degreeIP40 and IP65
Body materialThermoplastic V0, self-extinguishing
Electrical life1.000.000 operations
Humidity45% ~ 85% non-condensing
Temperature-5 ~ 40 °C
Altitude< 2000 m
Pollution degreeLevel 3
NormsIEC 60947-5-1
CertificationsTÜV / CE
Mounting diameter22mm
