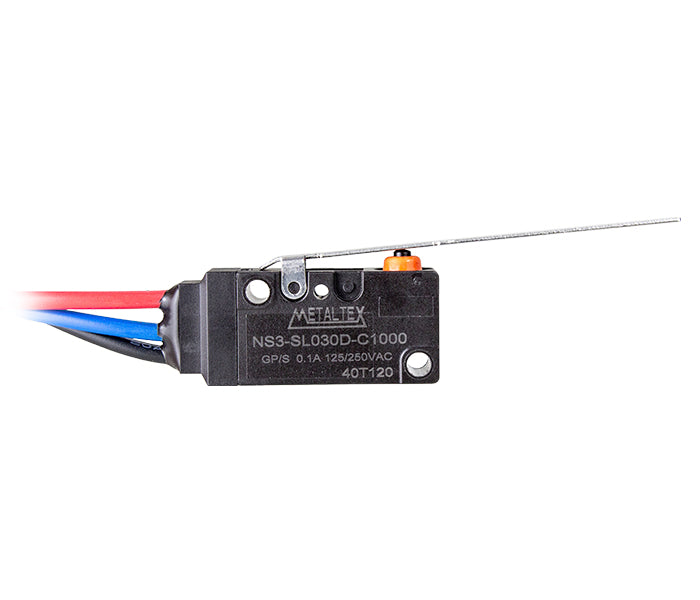

NS3 Sealed Micro Switch Long Lever
CÓD: NS3-SL030D-C1000
Description
Description
The NS3-SL030D-C1000 sealed micro switch is an electromechanical switch designed for applications requiring high reliability in switching low-intensity signals. With IP67 sealing and injected cables, it is ideal for harsh industrial environments, ensuring protection against dust, moisture, and vibrations.
- IP67 protection rating, resistant to dust and water
- Injected cables for enhanced sealing and electrical reliability
- Optimized electrical contact for switching low current signals (micro loads)
- High mechanical and electrical durability
General specifications
General specifications
| Rated capacity | 5A (resistivo) @ 125/250 VAC 5A (resistivo) @ 30 VDC |
| Minimum applicable load (reference value) | 5VDC - 160mA |
| Opening of contact | 1.3 ± 0.1mm |
| Contact material | Alloy of silver |
| Operating force | At the plunger: 180±50gf |
| Allowable operating frequency - Electrical | 20 operations por minuto |
| Allowable operating frequency - Mechanical | 60 operations por minuto |
| Contact resistance (initial) | 200mΩ max. (depends on cable length) |
| Insulation resistance | 100MΩ @ 500VDC |
| Strength dielectric - Between terminals | 1000VAC 50/60Hz - 1 min. |
| Strength dielectric - Between terminals and housing | 1500VAC 50/60Hz - 1 min. |
| Resistance à vibration - Mau funcionamento | 10 a 55 Hz - 1.5 mm amplitude dupla |
| Impact resistance - Destruction | 750m/s² (=75G) max. |
| Resistance too impact - Mau funcionamento | 200m/s² (=20G) max. |
| Mechanical life | 5And6 (5,000,000) operations minimum (@ 60 operations per minuto) |
| Electrical life | 1And5 (100,000) operations minimum (@ 20 operations per minuto) |
| Degree of protection | IP67 |
| Degree of protection against electric shock | Classe II |
| Comparative tracking index | 250 |
| Operating temperature | -40 a +85°C |
| Relative humidity | 85%RH max. |
