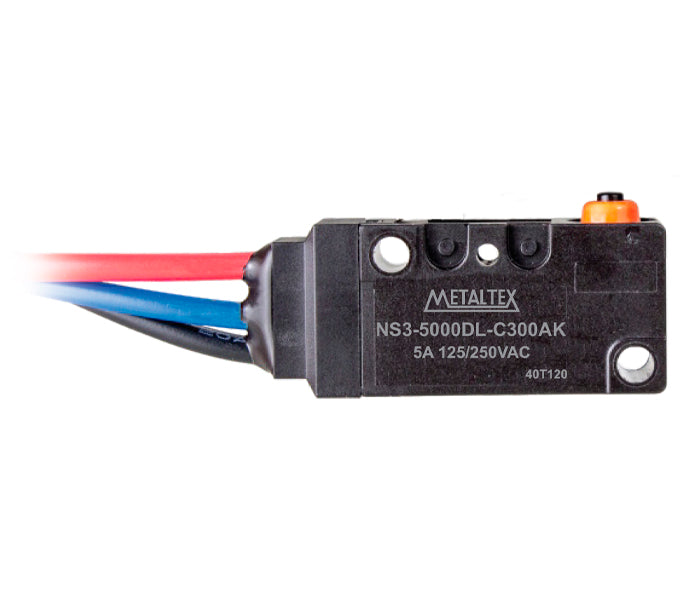

NS3 Sealed Micro Switch Pin

CÓD: NS3-5000DL-C300AK

Description

The NS3-5000DL-C300AK sealed micro switch is a robust electromechanical switch designed for applications in harsh environments. With IP67 sealing and overmolded cables, it offers high protection against dust, moisture, and vibration, making it ideal for industrial automation, machinery, and equipment exposed to severe conditions.

  • IP67 protection rating, resistant to dust and water
  • Overmolded cables for enhanced sealing and electrical reliability
  • Contacts with capacity up to 5A at 125/250VAC or 30VDC
  • High mechanical and electrical durability

General specifications
Rated capacity5A (resistivo) @ 125/250 VAC
5A (resistivo) @ 30 VDC
Minimum applicable load (reference value)5VDC - 160mA
Opening of contact1.3 ± 0.1mm
Contact materialAlloy of silver
Operating forceAt the plunger: 180±50gf
Allowable operating frequency - Electrical20 operations por minuto
Allowable operating frequency - Mechanical60 operations por minuto
Contact resistance (initial)200mΩ max. (depends on cable length)
Insulation resistance100MΩ @ 500VDC
Strength dielectric - Between terminals1000VAC 50/60Hz - 1 min.
Strength dielectric - Between terminals and housing1500VAC 50/60Hz - 1 min.
Resistance à vibration - Mau funcionamento10 a 55 Hz - 1.5 mm amplitude dupla
Impact resistance - Destruction750m/s² (=75G) max.
Resistance too impact - Mau funcionamento200m/s² (=20G) max.
Mechanical life5And6 (5,000,000) operations minimum (@ 60 operations per minuto)
Electrical life1And5 (100,000) operations minimum (@ 20 operations per minuto)
Degree of protectionIP67
Degree of protection against electric shockClasse II
Comparative tracking index250
Operating temperature-40 a +85°C
Relative humidity85%RH max.
