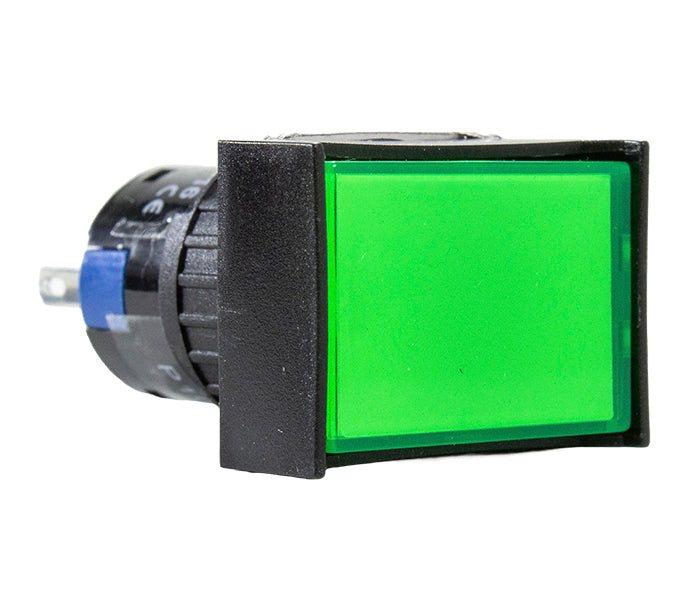

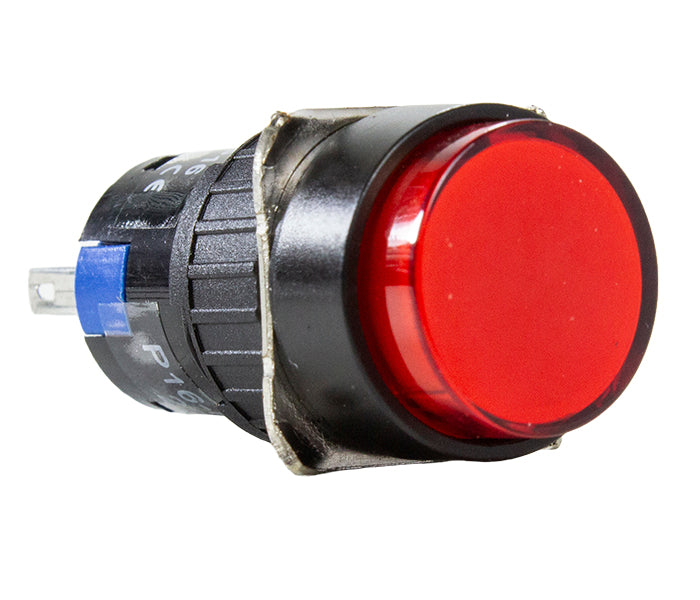

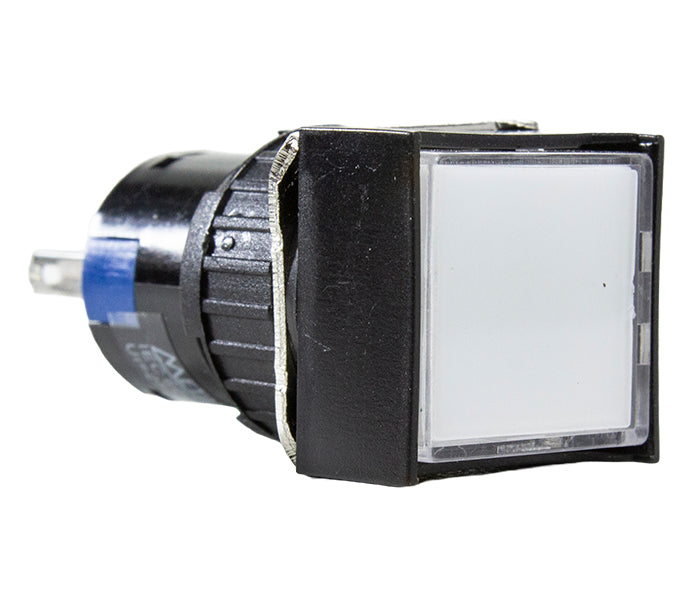

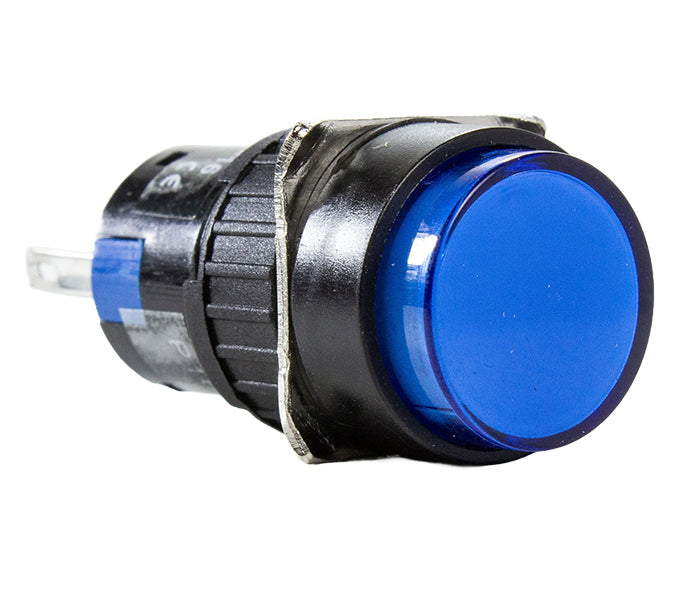

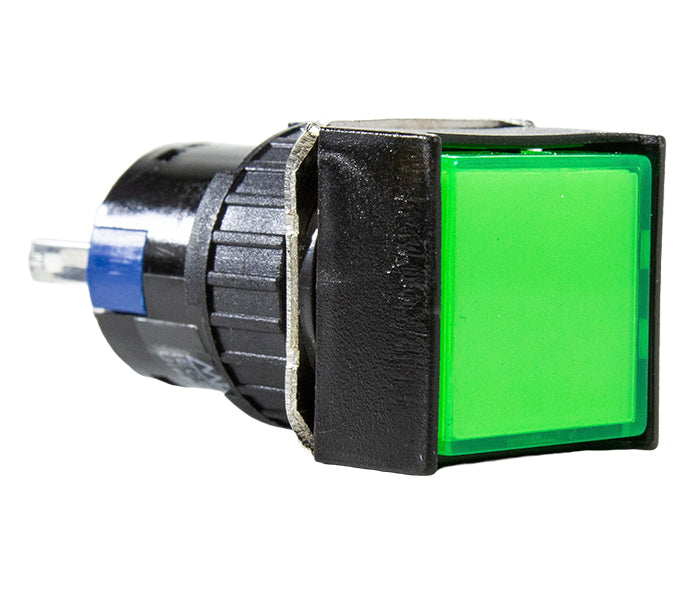

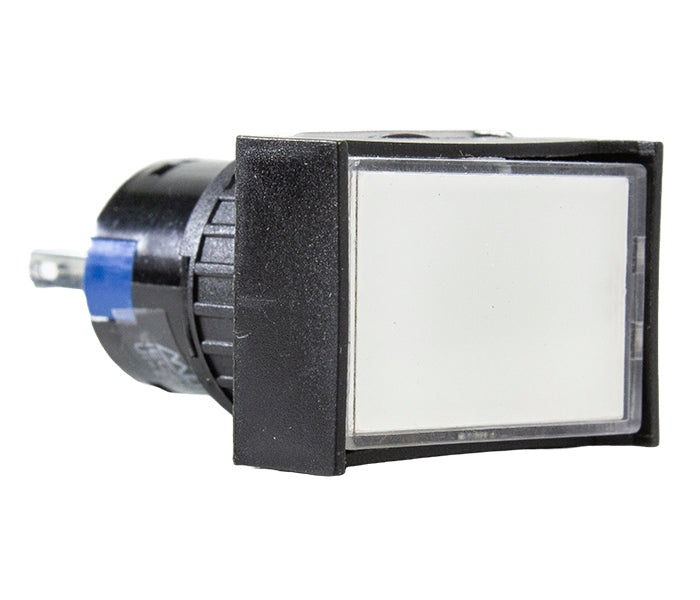

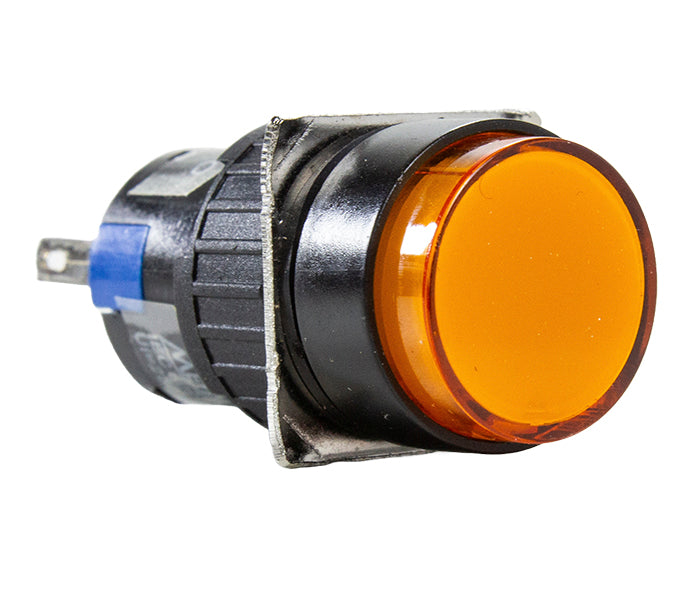

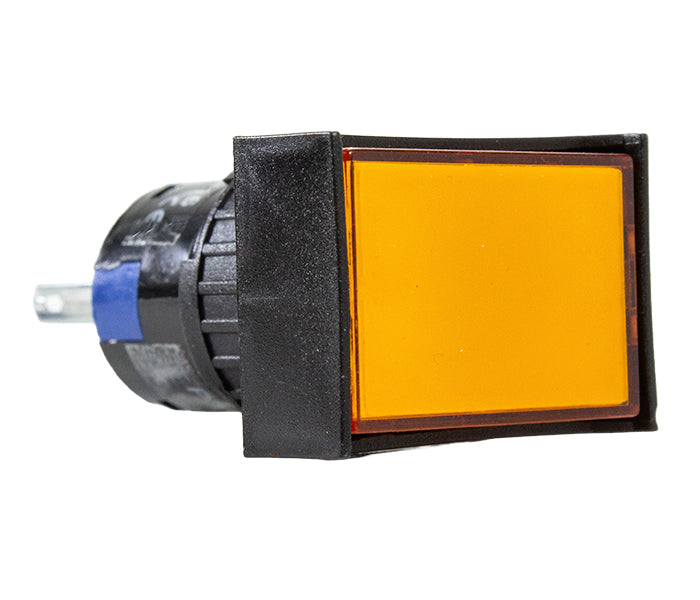

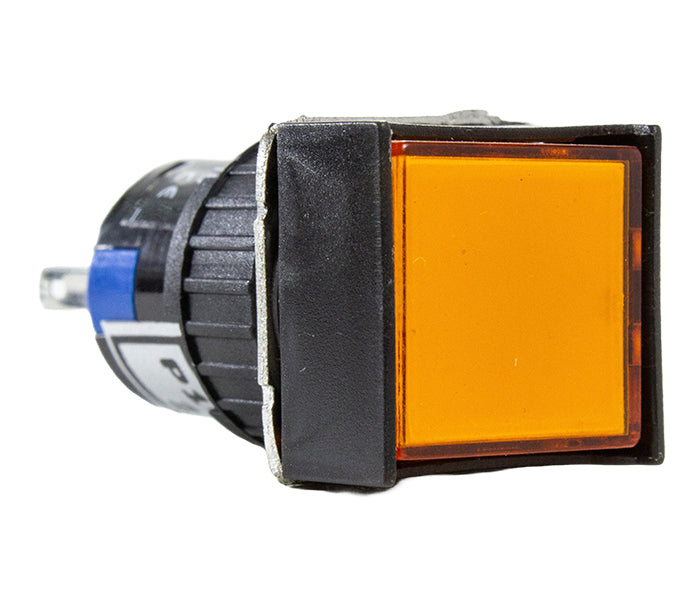

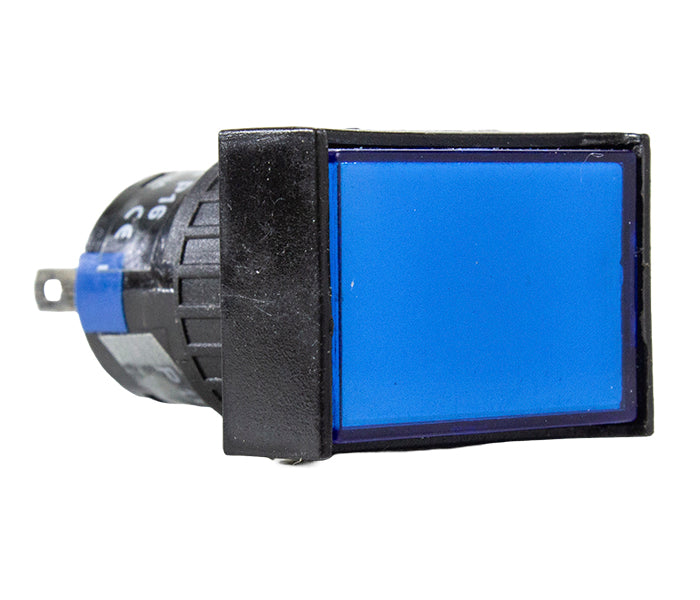

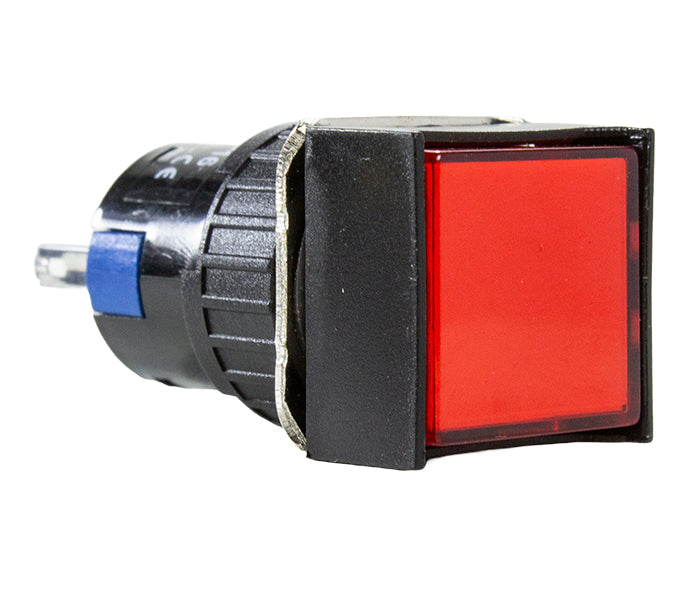

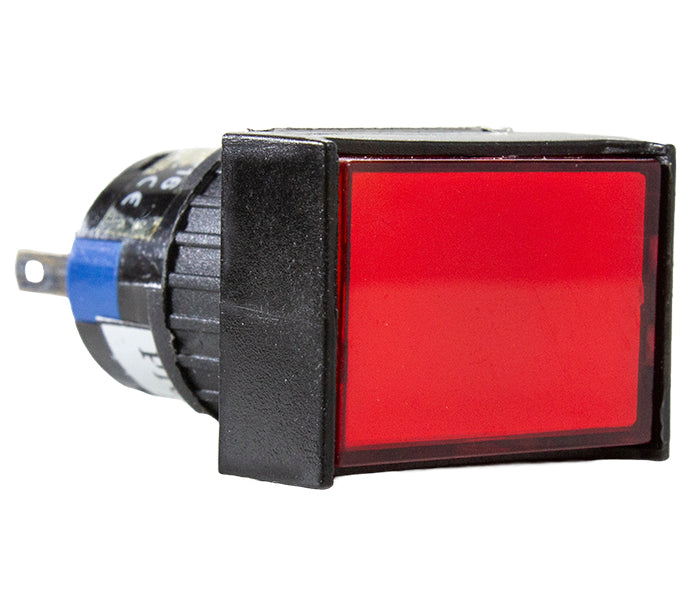

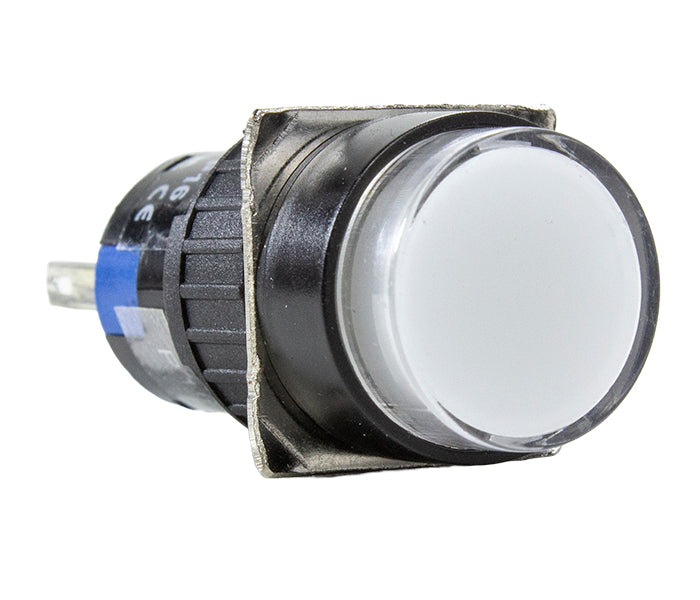

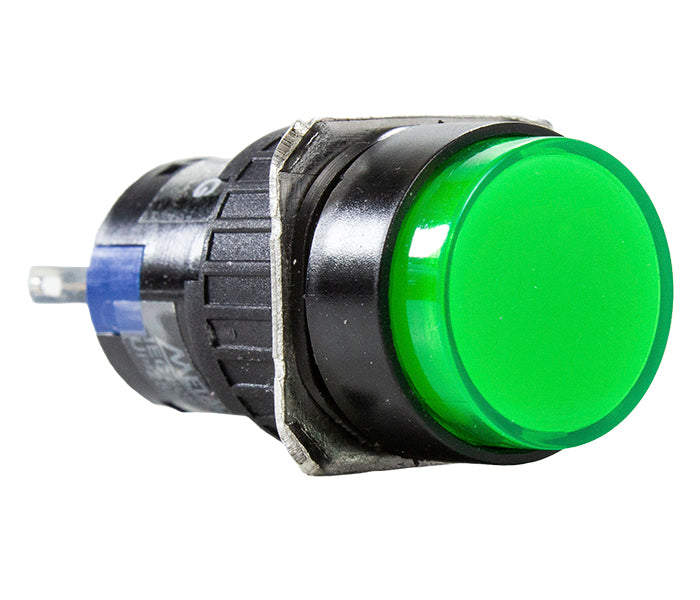

P16 LED Plastic Indicator 16mm

Description

P16 series indicators, developed for visual indication in industrial panels. Available in round, rectangular, and square shapes, they offer versatility, good visibility, and reliability for various signaling applications.

  • Plastic body
  • Available in round, rectangular, and square shapes
  • Direct power supply at 24 VAC/VDC or 220 VAC
  • IP40 protection rating

Select the options below

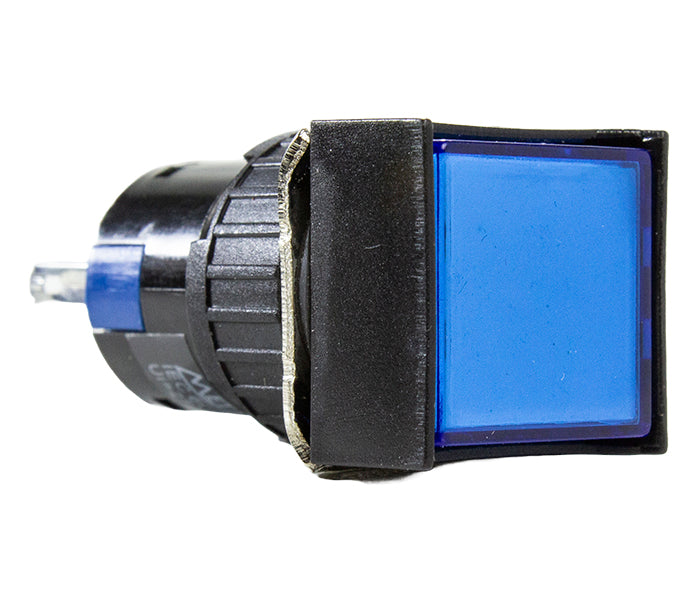

CÓD: P16-PS9-BL

General specifications
Operating temperature-5 ~ 40 °C
Operating humidity45% ~ 85% (Non-condensing)
Dielectric strength2000V, 1min.
Initial contact resistance<20 mΩ
Mechanical lifeMomentary: 1,000,000 operations
Retention: 100,000 operations
Electrical lifeMomentâneo: AC: 500,000, DC: 250,000
Retention: 100,000
Degree of protectionIP40
Insulation voltage250 V (Ui)
Maximum contact current3 A (Ith)
Lamp consumption<20 mA
Operating current rangeAC12: 1 A–110 V; 0.5 A–220 V
AC15: 0.7 A–110 V; 0.5 A–220 V
DC12: 1 A–24 V; 0.2 A–110 V
DC15: 0.7 A–24 V; 0.2 A–110 V
