Mushroom Button P20 Plastic 22mm
CÓD: P20AMR-Y-1A
Description
Description
40mm mushroom head push button, ideal for industrial applications requiring easy activation and high visibility. Its ergonomic shape facilitates use in situations demanding speed, offering reliability and robustness for various commands on control panels.
- Plastic body
- Available in yellow, black, red, and green
- 1NO or 1NC contact options
- Mushroom head with a diameter of 40 mm
Select the options below
Code list
Code list
| Code | Description |
|---|---|

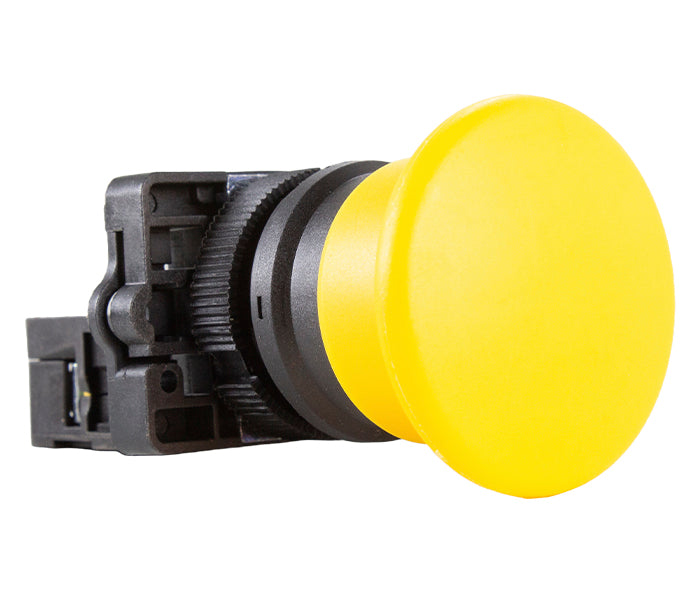

| P20AMR-Y-1A | Yellow / 1NA |

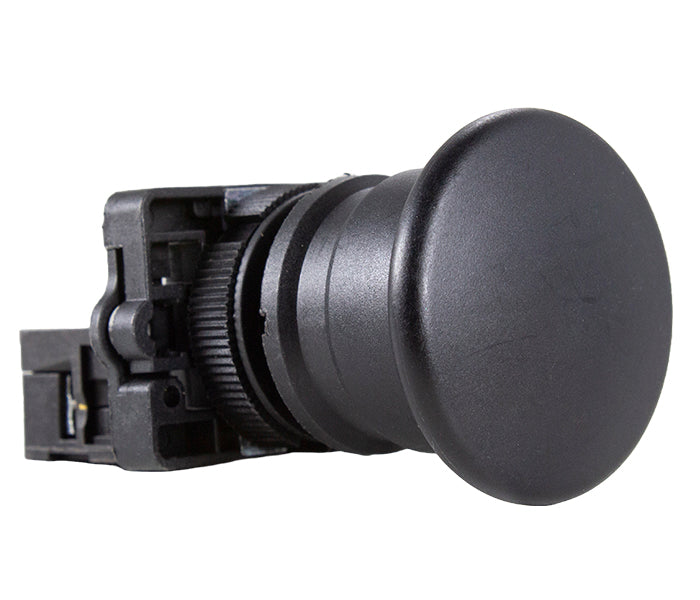

| P20AMR-B-1A | Black / 1NA |

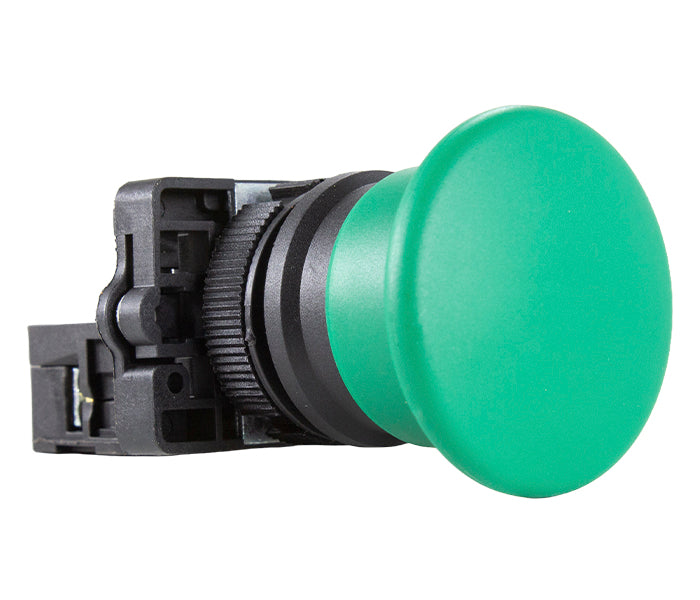

| P20AMR-G-1A | Green / 1NA |

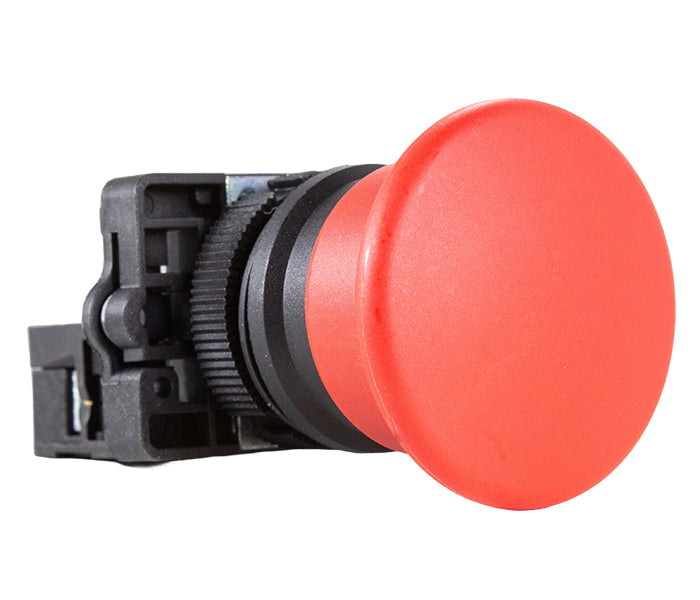

| P20AMR-R-1A | Red / 1NA |

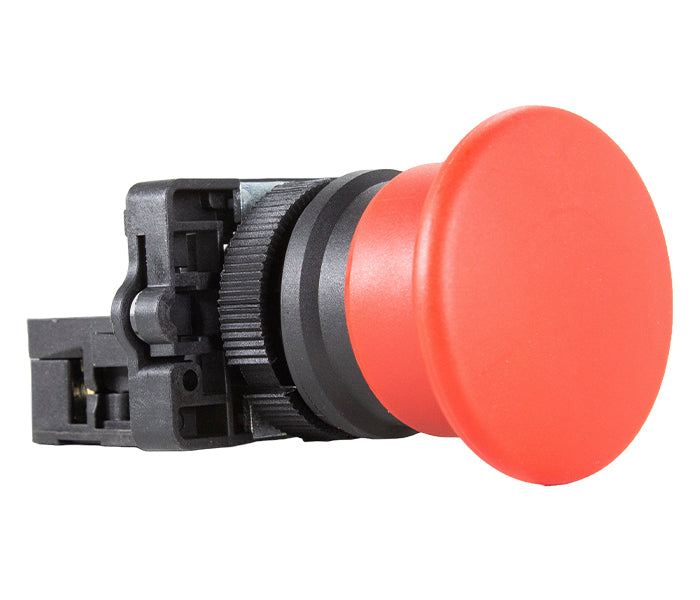

| P20AMR-R-1B | Red / 1NF |
General specifications
General specifications
| Model | Illuminated | Non-illuminated |
|---|---|---|
| Degree of protection | IP40 and IP66 (with silicone cover) | |
| Body material | V0 thermoplastic, self-extinguishing | |
| Electrical life | 1,000,000 operations | |
| Humidity | 45% ~ 85%, non-condensing | |
| Temperature | -5 ~ 40 °C | |
| Altitude | <2000m | |
| Pollution degree | Level 3 | |
| Standards | IEC 60947-5-1 / UL Certified | |
| Mounting diameter | 22.5mm | |
| Actuation type | Spring return | |
| Compatible LED lamps (illuminated buttons) | Metaltex L1 line (BA9s socket) | - |
| Signal type | Continuous | - |
| Current consumption 12 VDC/VAC | 3.5 mA | - |
| Current consumption 24 VDC/VAC | 7.5 mA | - |
| Current consumption 110 VDC/VAC | 3.8 mA | - |
| Current consumption 220 VDC/VAC | 2.8 mA | - |
| Model | M20-1A | M20-1B | M20-1A/D | M20-1B/D |
|---|---|---|---|---|
| Degree of protection | IP20 | |||
| Contact material | AgNi | AgNi + Flash Au | ||
| Operating voltage Ue | 380 V | |||
| Insulation voltage Ui | 660 V | |||
| Rated current Ie | AC-15: 6 A-120 V / 3 A-240 V / 5A-380 V DC-13: 2.7 A-24 V / 0.55 A-125 V / 0.27 A-250 V | |||
| Thermal current Ith | 10 A | |||
| Minimum switching current | - | 5 V/5 mA | ||
| Initial contact resistance | <50mΩ | |||
| Electrical life | 500,000 operations | |||
