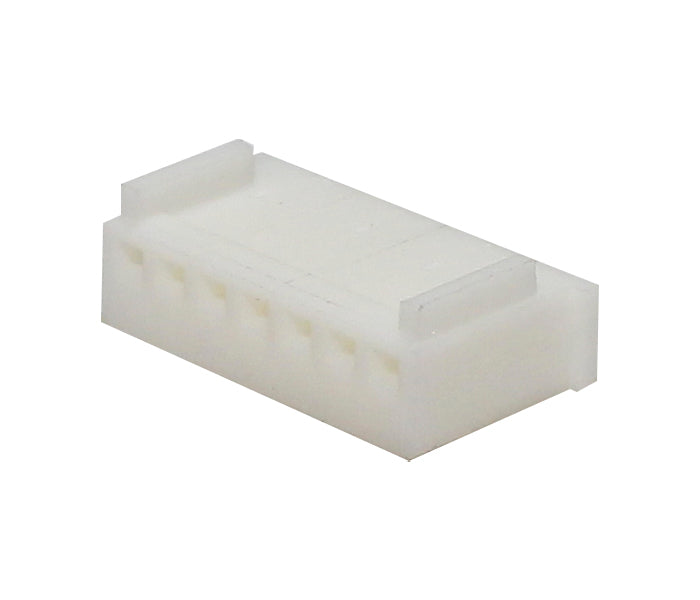

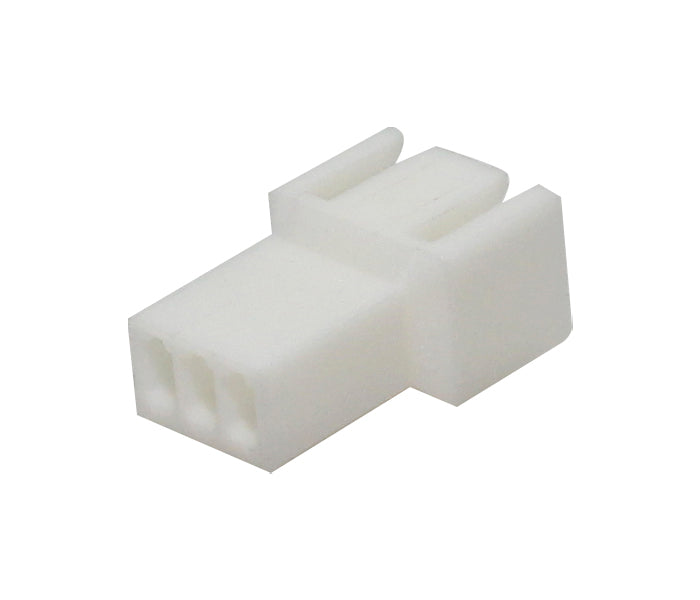

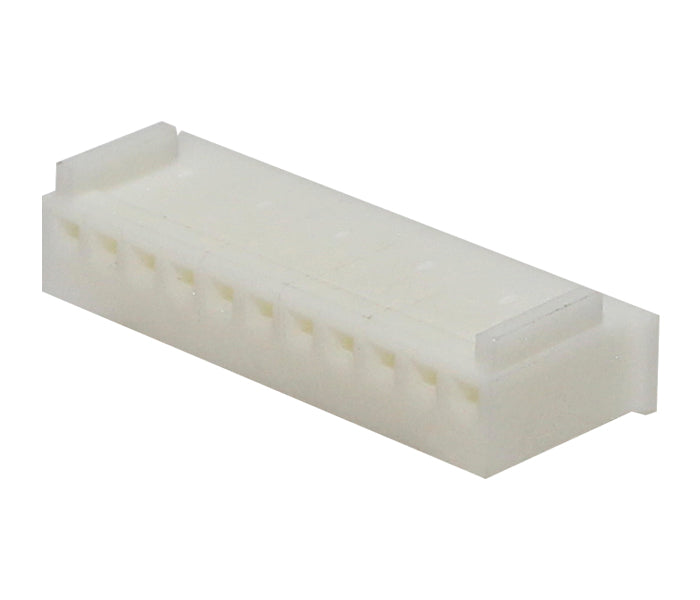

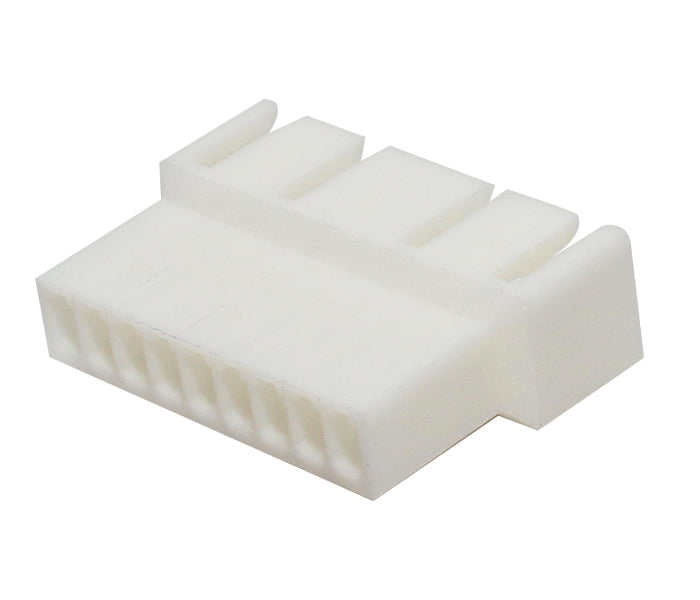

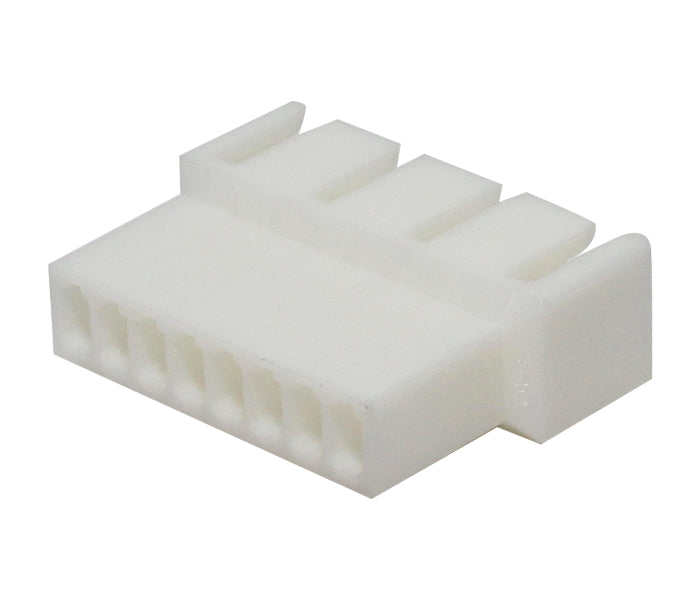

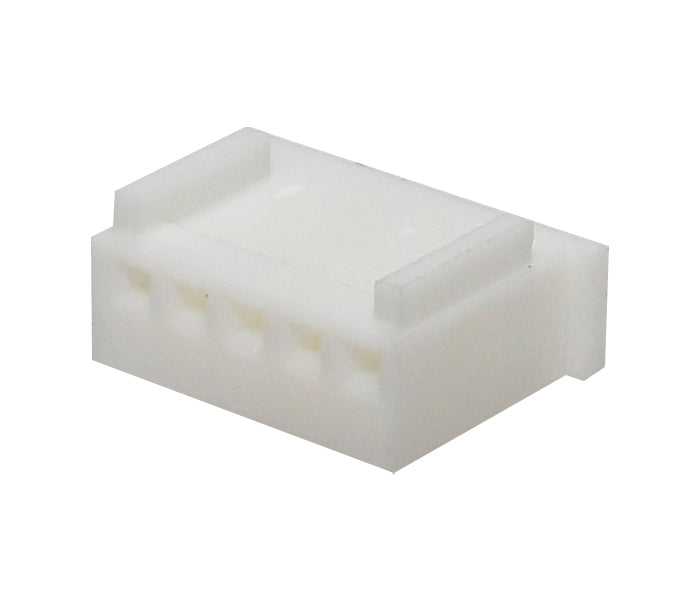

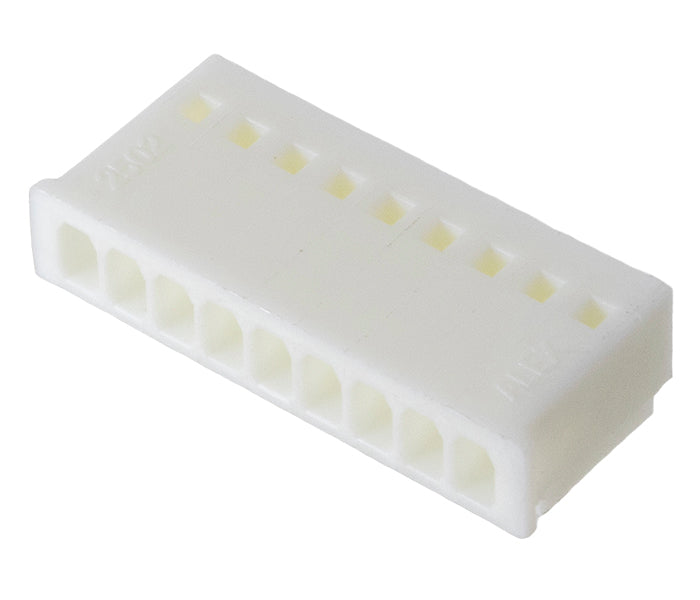

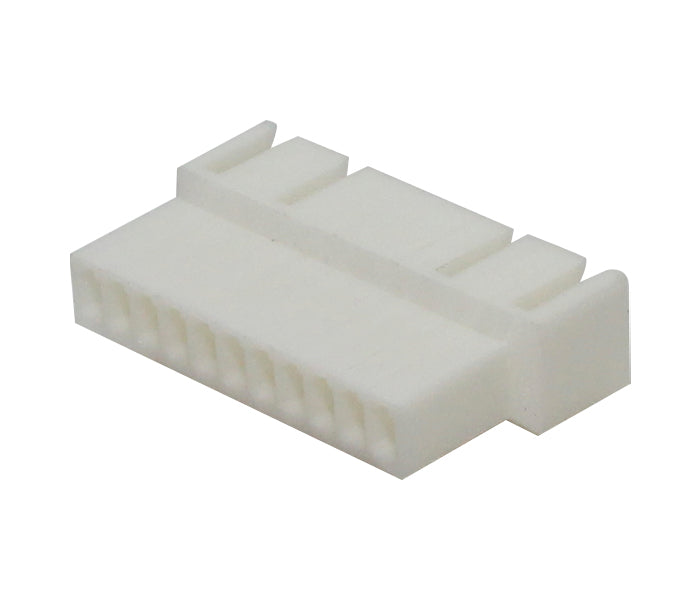

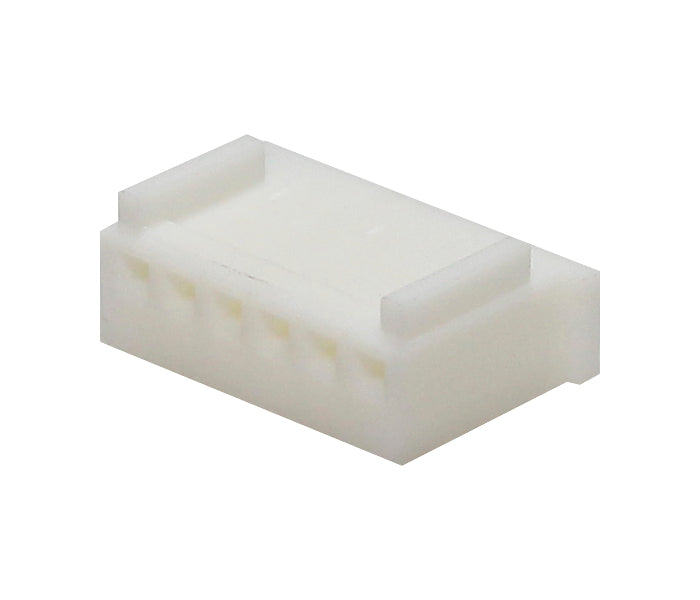

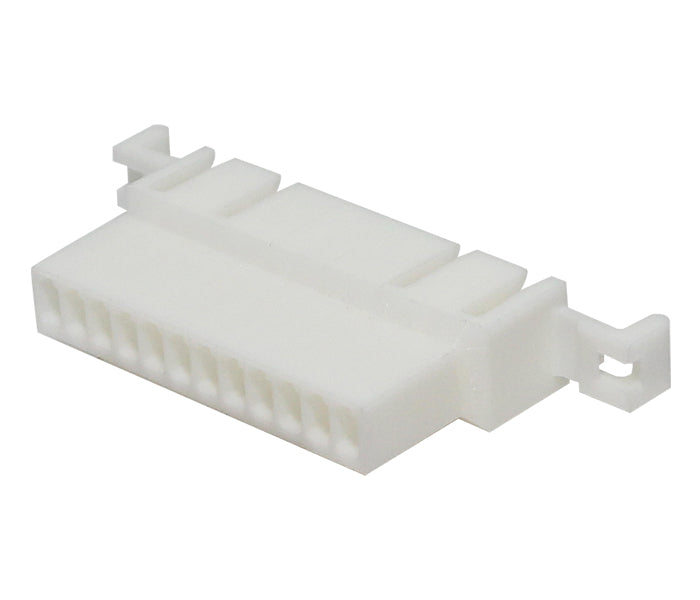

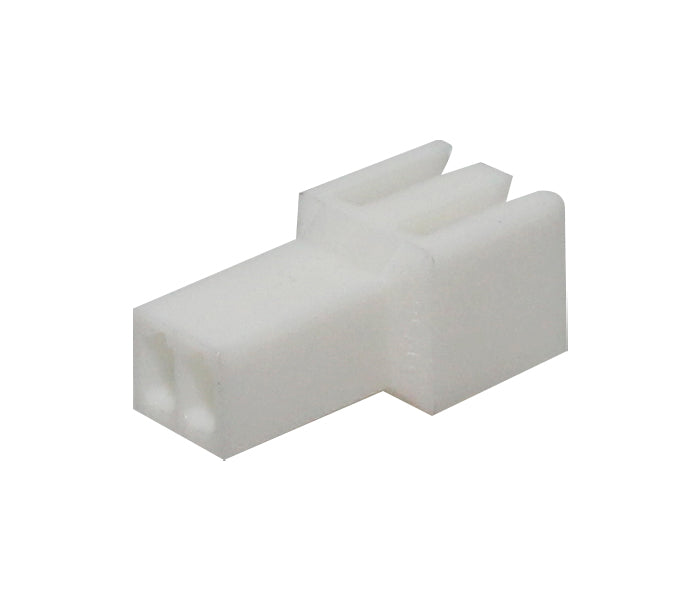

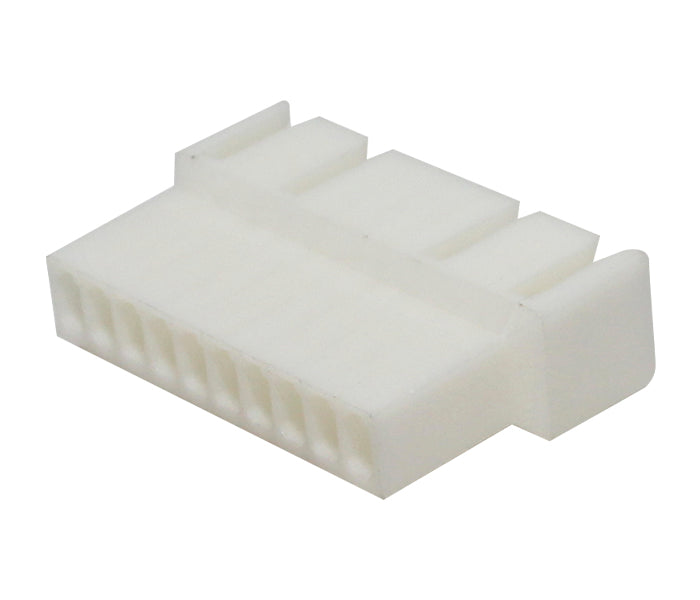

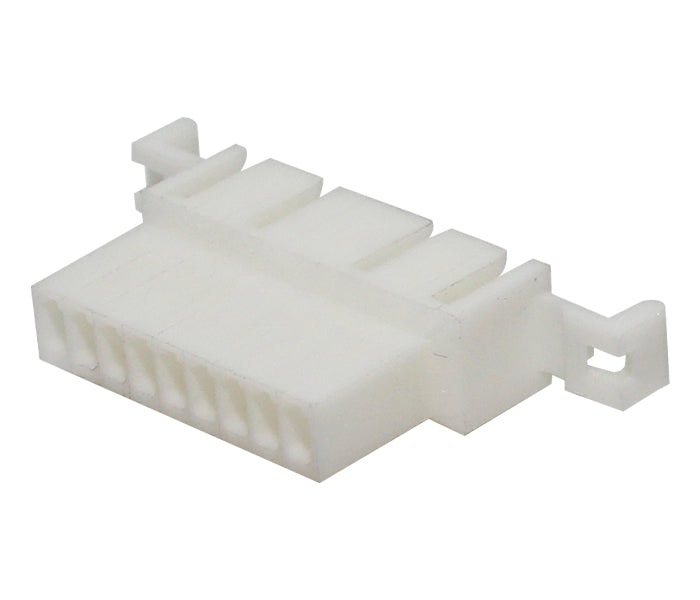

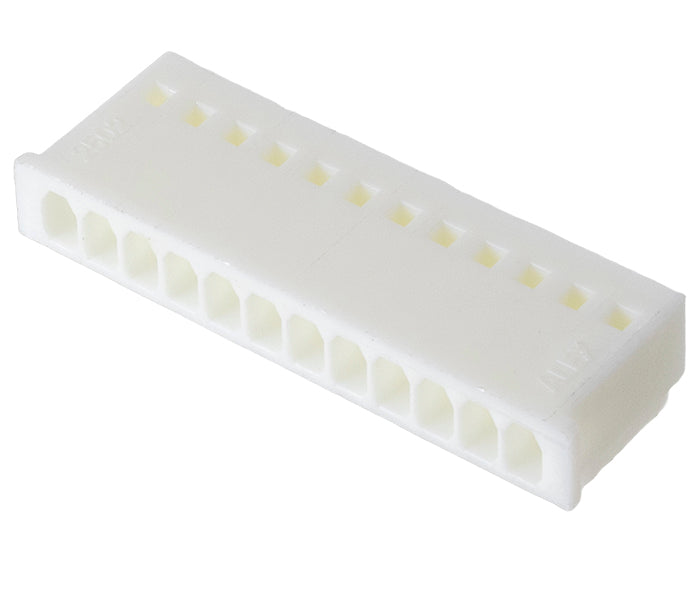

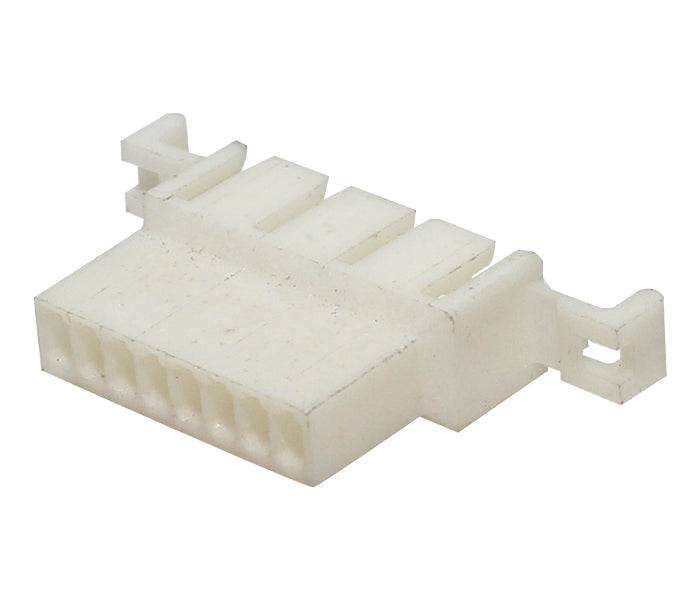

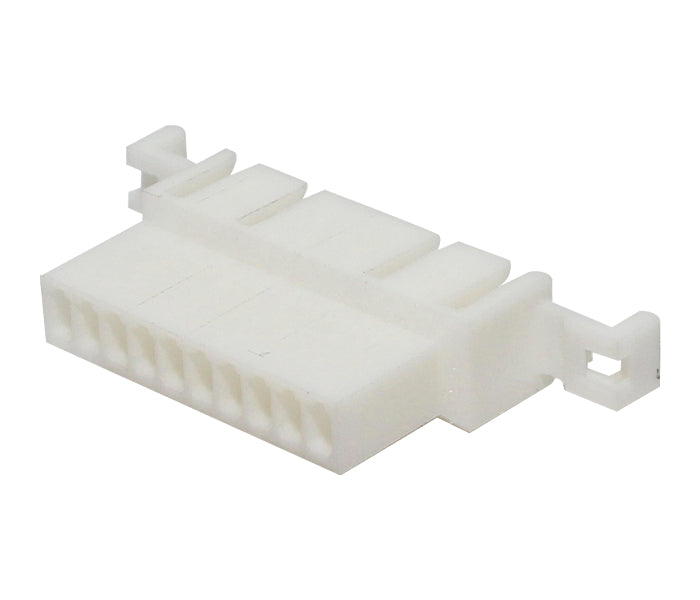

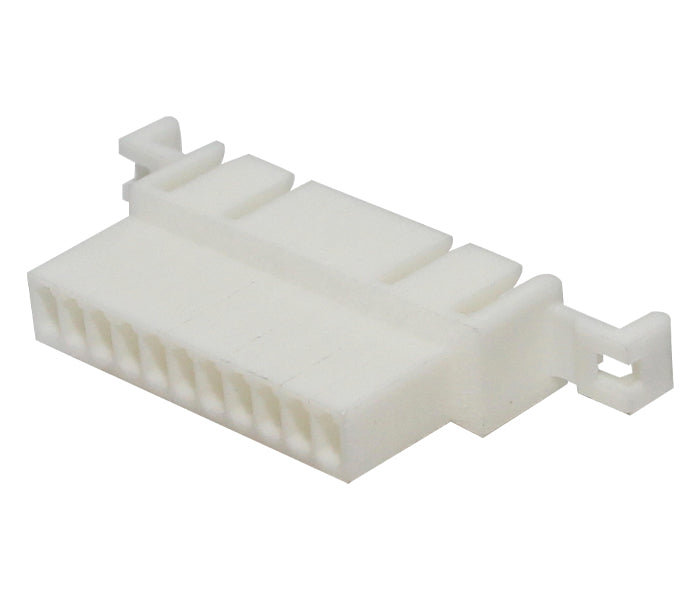

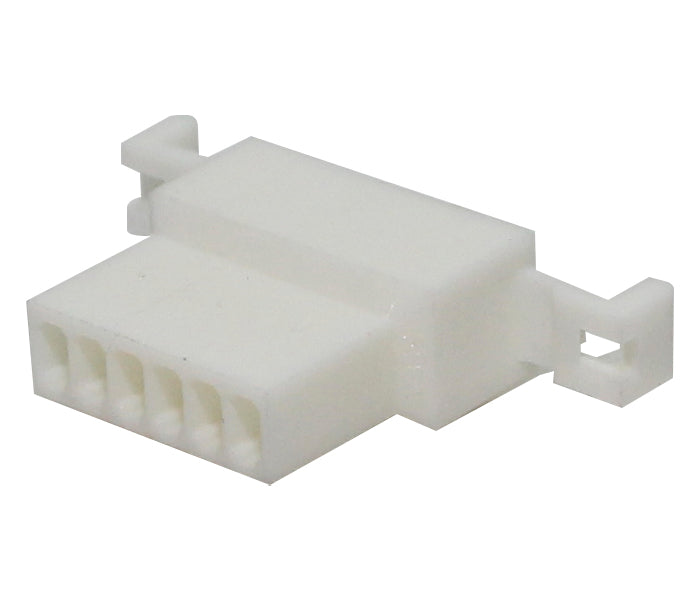

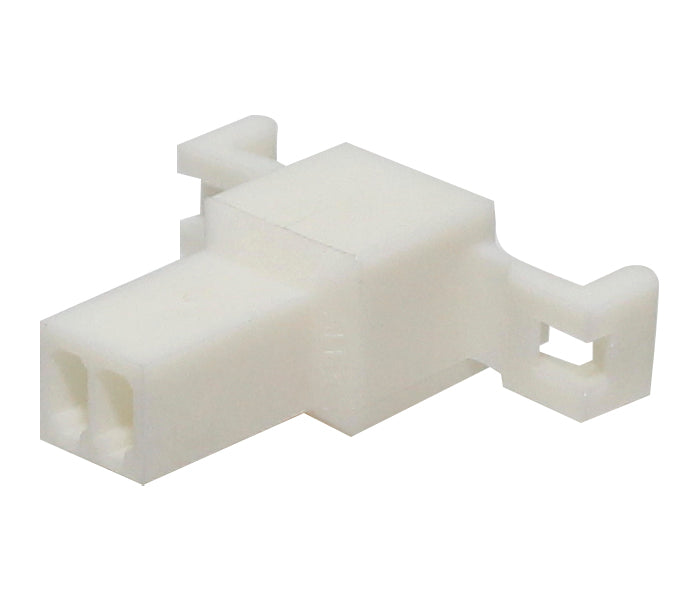

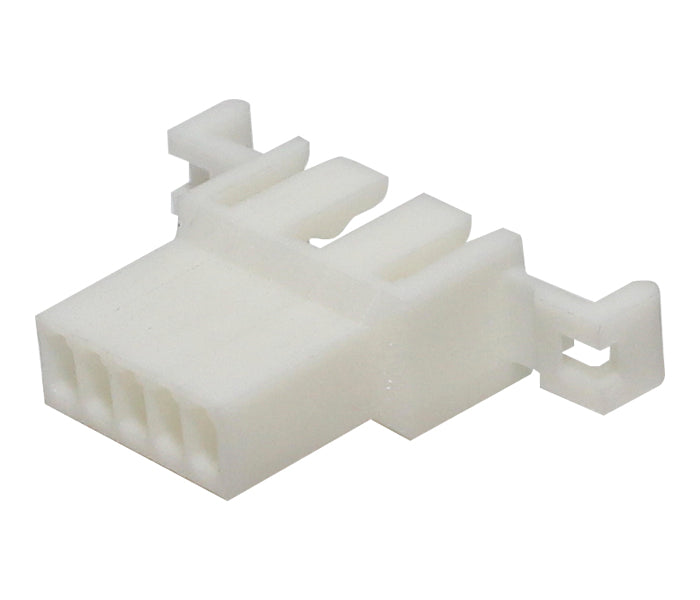

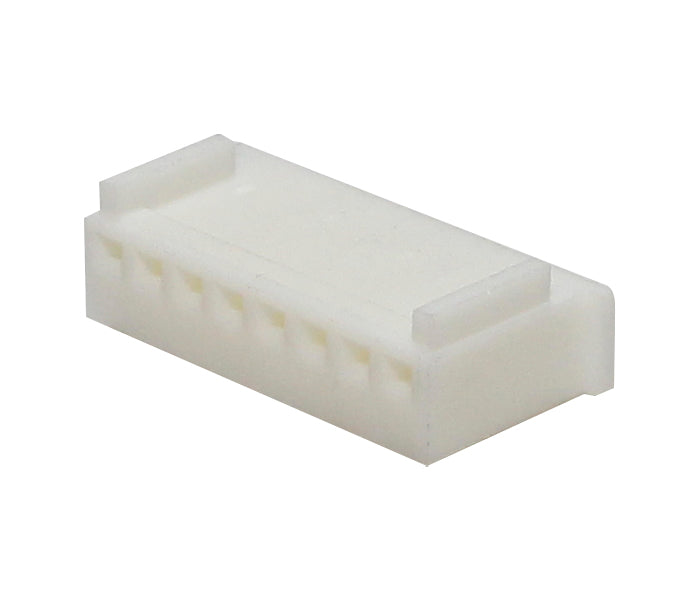

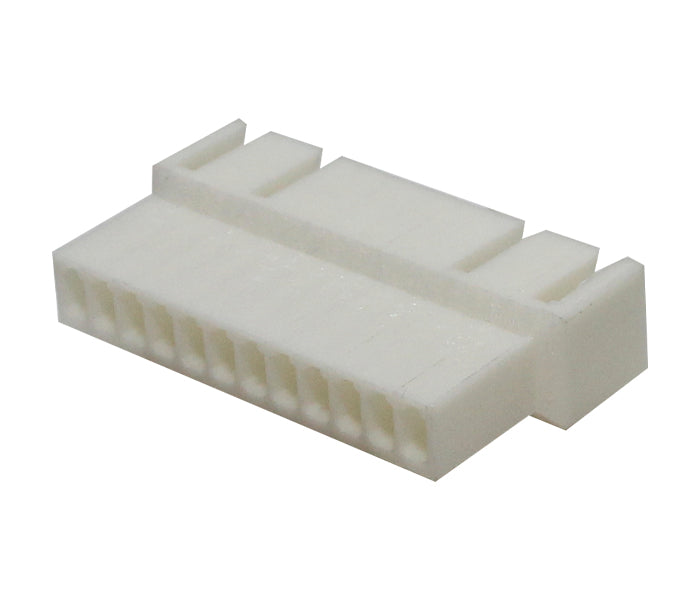

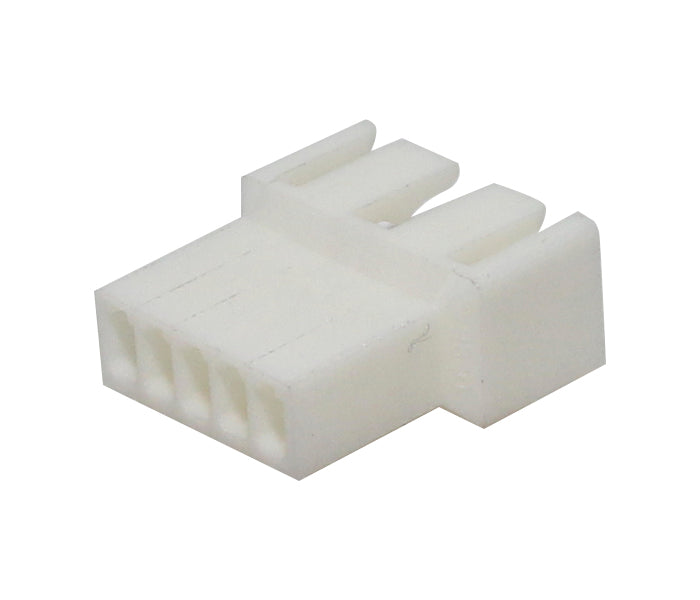

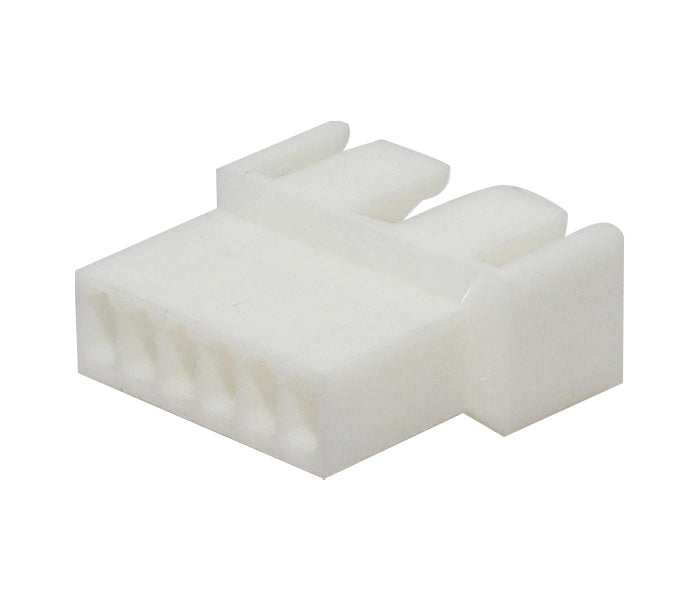

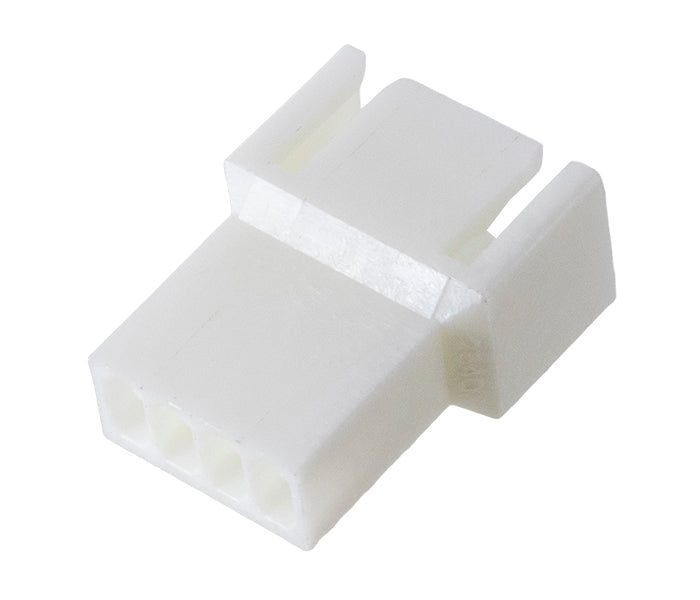

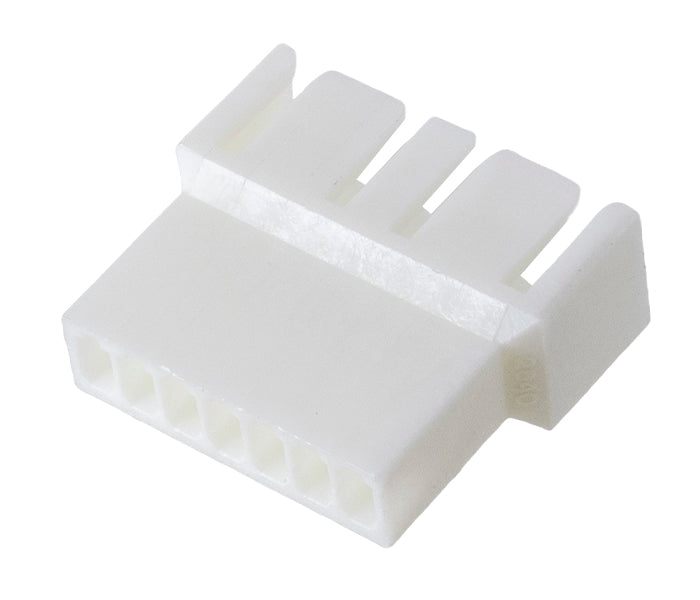

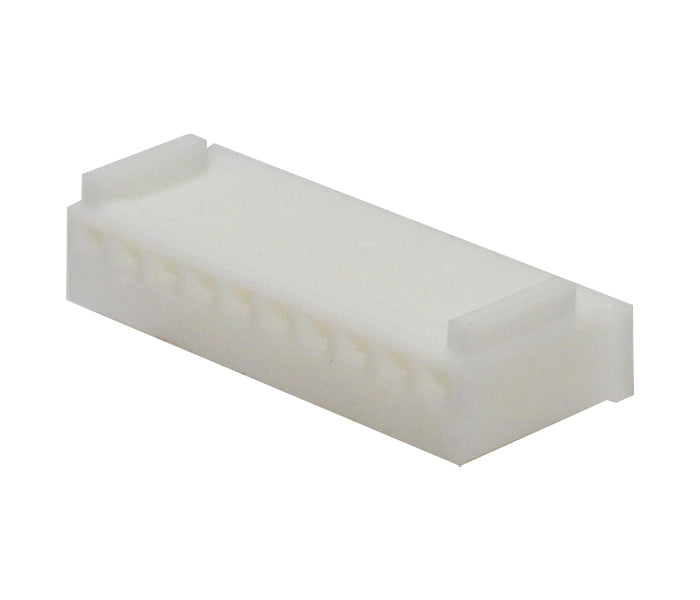

SC Connector Cable-to-Cable 2.50mm

CÓD: SCF1-02

Description

The SC series wire-to-wire connector is designed to join cables securely and reliably. Available in male and female versions, it adapts to different mounting configurations. With a capacity of up to 3A and 250V, it ensures electrical stability in low-power applications.

  • Available in 2 to 12 way versions
  • Maximum current of 3A and voltage up to 250V

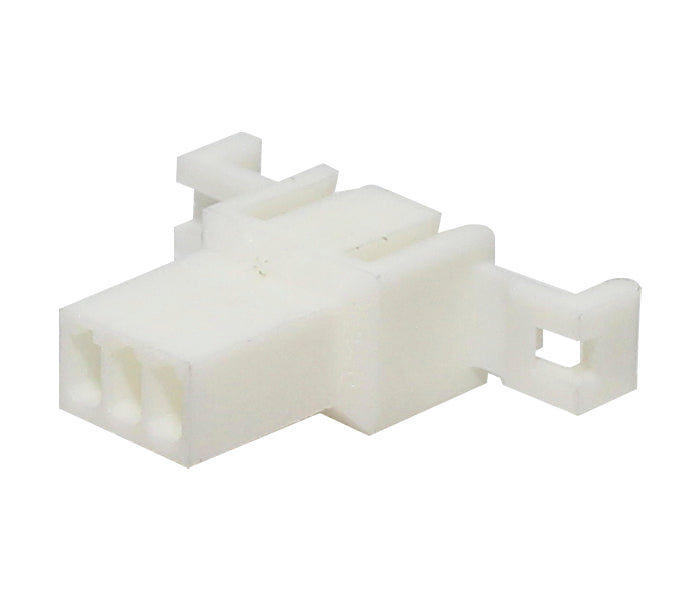

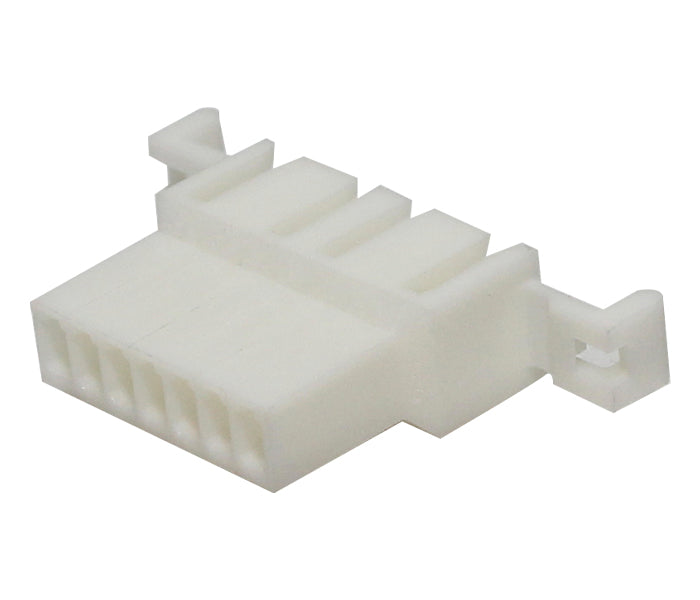

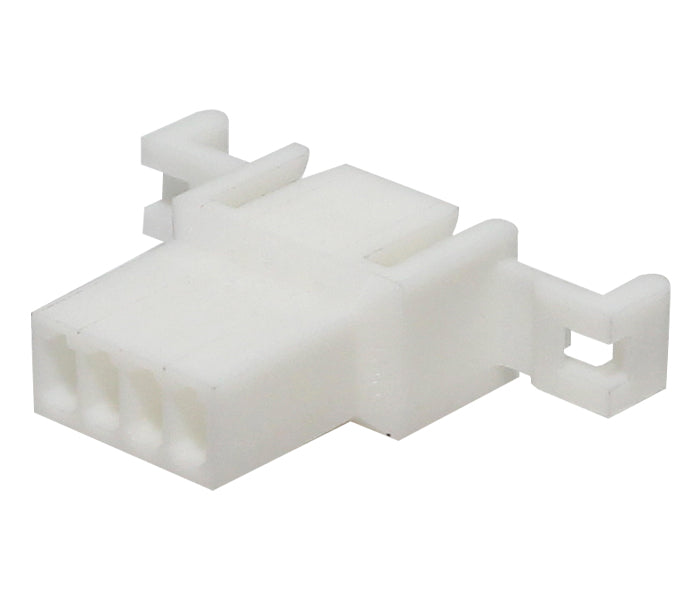

  • Female or male (option with ear)
  • Supports 28 to 22 AWG wires

Select the options below

General specifications
Contact rating3A
Max. operating voltage250VAC or VDC
Max. initial contact resistance20mΩ
Insulation resistance1000MΩ min. (500VDC)
Dielectric strength1500VAC (1 minuto)
Operating temperature-40 ~ 105°C
Insulator materialPA66 UL94V-0
PCB connector terminal materialTin-plated brass
Material of the terminals of crimparsTin-plated brass
Applicable wire gauge for crimp terminal28 ~ 22 AWG (0.08mm² ~ 0.30mm²)

Compare to lines

SC Connector Cable-to-Cable 2.50mm SC Connector Cable-to-Cable 2.50mm see details
Terminal for SC Cable Terminal for SC Cable see details
Description
The SC series wire-to-wire connector is designed to join cables securely and reliably. Available in male and female versions, it adapts to different mounting configurations. With a capacity of up to 3A and 250V, it ensures electrical stability in low-power applications.


Available in 2 to 12 way versions

Maximum current of 3A and voltage up to 250V

Female or male (option with ear)

Supports 28…
2.50 mm wire-to-wire connector terminal for cable-to-cable connection, ensuring a secure and reliable connection. Available in female and male housing versions, with or without ears, from 2 to 12 ways. Supports up to 3A and 250 VAC/VDC, meeting various electronic and industrial applications.


Wire-to-wire connector terminal with 2.50 mm pitch

Compatible with 28 to 22 AWG cables, from 2 to 12 co…
