Automation

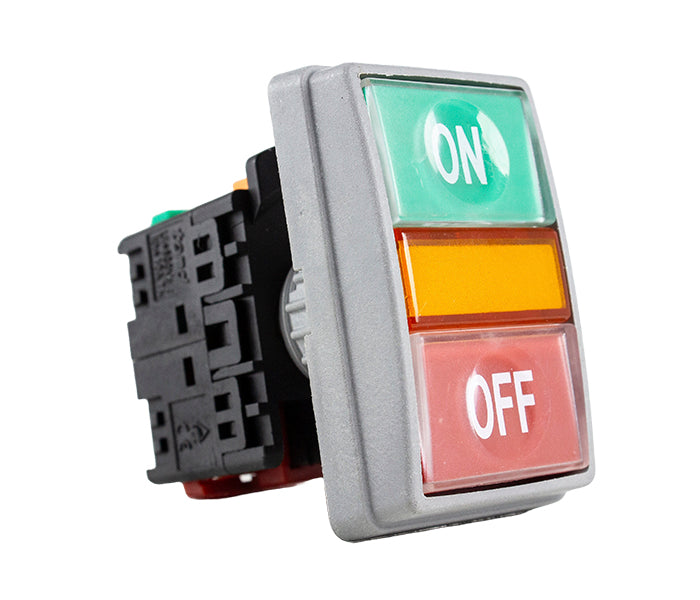

Double Push Button TN2 Plastic 22mm

CÓD: TN2BTY-1AB

Description

TN2 series double rectangular button, ideal for ON/OFF command applications in industrial panels. With a compact design and clear function identification, it provides practicality, reliability, and ease of operation.

  • Plastic body
  • Rectangular shape with dual function (ON/OFF)
  • 1NO+1NC contact

General specifications
Degree of protectionIP40 for illuminated and double-touch models
IP65 for non-illuminated models
Operating voltage Ue380V
Insulation voltage Ui660V
Humidity45 ~ 85%, non-condensing
Temperature-5 ~ 40ºC
Rated current Ie5A
Thermal current Ith10A
Initial contact resistance<50mΩ
Service lifeElectrical: 500 x 103
Mechanical: 106

Compare to lines

Double Push Button TN2 Plastic 22mm Double Push Button TN2 Plastic 22mm see details
NP20 LED Lighting Block NP20 LED Lighting Block see details
Description
TN2 series double rectangular button, ideal for ON/OFF command applications in industrial panels. With a compact design and clear function identification, it provides practicality, reliability, and ease of operation.


Plastic body

Rectangular shape with dual function (ON/OFF)

1NO+1NC contact


Lighting block for pushbuttons, indicator lights, and selector switches from the NP20 series. Ensures efficient visual signaling in industrial automation systems.


Available for 12V, 24V, 110V, and 220V (AC/DC)

Available in white, blue, red, yellow, and green

Easy coupling with devices
