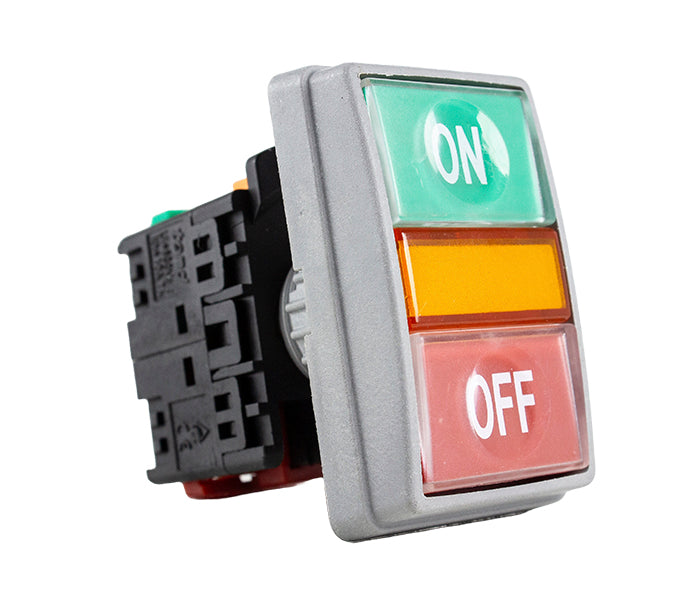

Illuminated 22mm Plastic Double Push Button TN2

CÓD: TN2IT7O-L1AB

Description

Illuminated rectangular pushbutton from the TN2 line, ideal for control applications with visual signaling in industrial panels. With LED illumination, it allows easy identification of the operating status, ensuring greater safety and efficiency.

  • Plastic body
  • Two independent switches with distinct colors (green and red) and LED
  • 1NO+1NC contact
  • Available in 24 VAC/VDC and 220 VAC voltages

Select the options below

General specifications
Degree of protectionIP40 for illuminated and double-touch models
IP65 for non-illuminated models
Operating voltage Ue380V
Insulation voltage Ui660V
Humidity45 ~ 85%, non-condensing
Temperature-5 ~ 40ºC
Rated current Ie5A
Thermal current Ith10A
Initial contact resistance<50mΩ
Service lifeElectrical: 500 x 103
Mechanical: 106

Compare to lines

Illuminated 22mm Plastic Double Push Button TN2 Illuminated 22mm Plastic Double Push Button TN2 see details
NP20 LED Lighting Block NP20 LED Lighting Block see details
Description
Illuminated rectangular pushbutton from the TN2 line, ideal for control applications with visual signaling in industrial panels. With LED illumination, it allows easy identification of the operating status, ensuring greater safety and efficiency.


Plastic body

Two independent switches with distinct colors (green and red) and LED

1NO+1NC contact

Available in 24 VAC/VDC and 220 VAC voltages


Lighting block for pushbuttons, indicator lights, and selector switches from the NP20 series. Ensures efficient visual signaling in industrial automation systems.


Available for 12V, 24V, 110V, and 220V (AC/DC)

Available in white, blue, red, yellow, and green

Easy coupling with devices
