Tactile Switch A07
CÓD: A07-1-4.3
Description
Description
A07 series tactile switches, developed for electronic applications that require a larger actuation area and robustness. With a 12x12 mm format, they offer excellent tactile response and reliability, making them ideal for control interfaces in various equipment.
- 12x12 mm format for better actuation area
- Available in different heights for various applications
- Precise tactile feedback with high durability
Select the options below
Code list
Code list
| Code | Description |
|---|---|

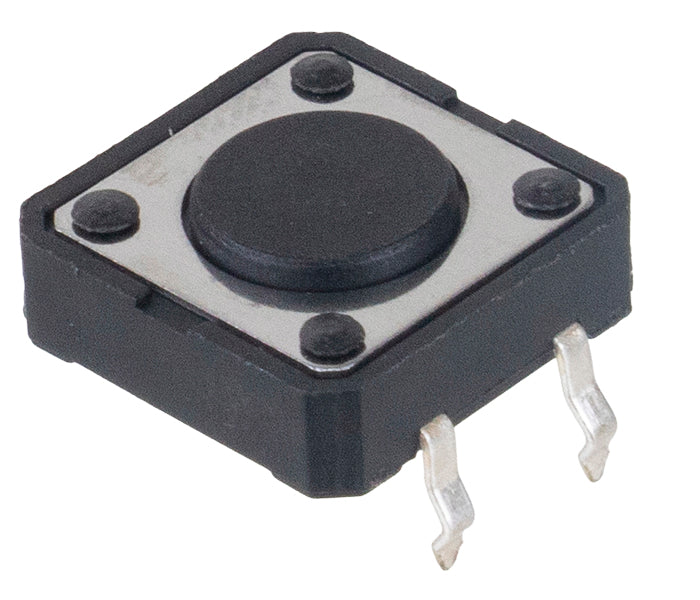

| A07-1-4.3 | 4.3mm |

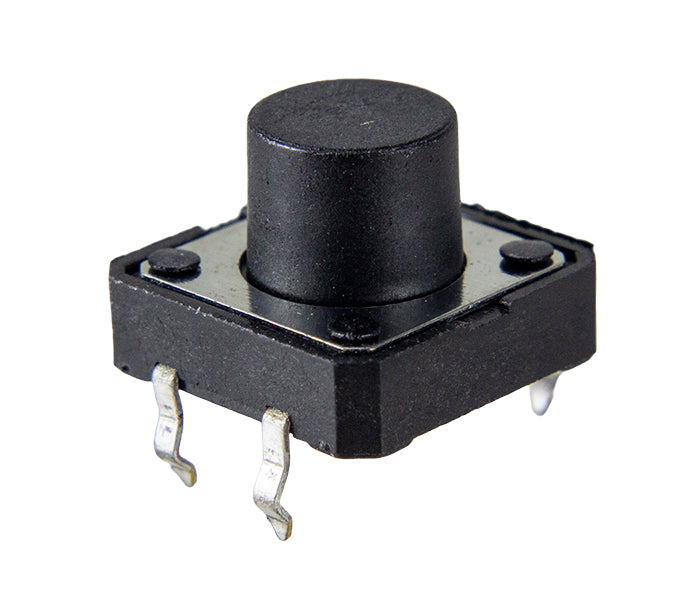

| A07-1-8.5 | 8.5mm |

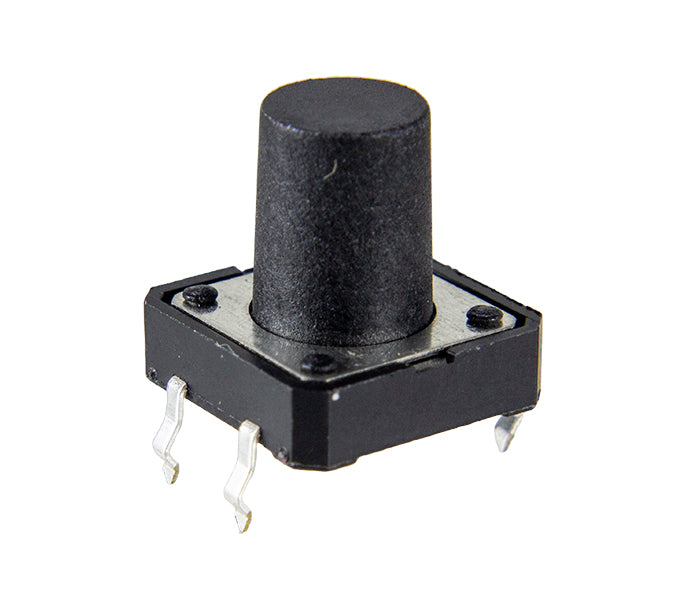

| A07-1-12.0 | 12.0mm |
General specifications
General specifications
| Max. contact load | 12 VDC - 50mA |
| Contact arrangement | 1 NO |
| Contact resistance | 100mΩ max. |
| Insulation resistance | 100MΩ min. |
| Dielectric strength | 250 VAC |
| Electrical life | > 100,000 |
| Actuation force | 160gf ± 50gf |
| Travel | 0.3mm |
