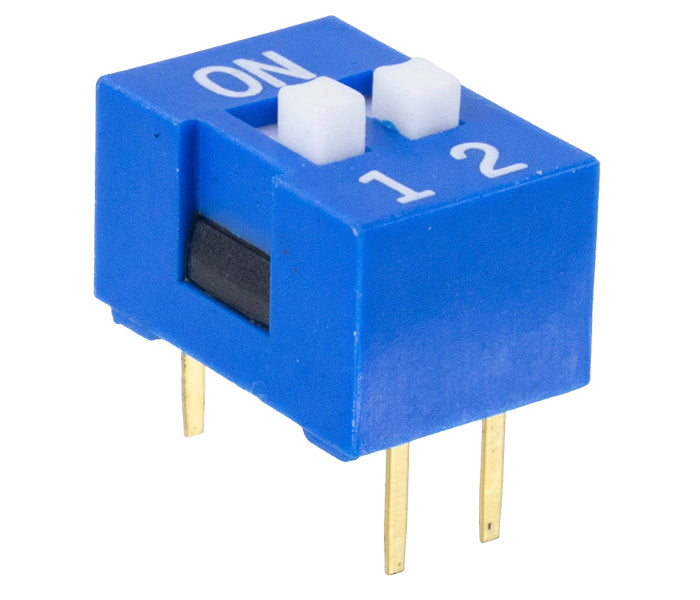

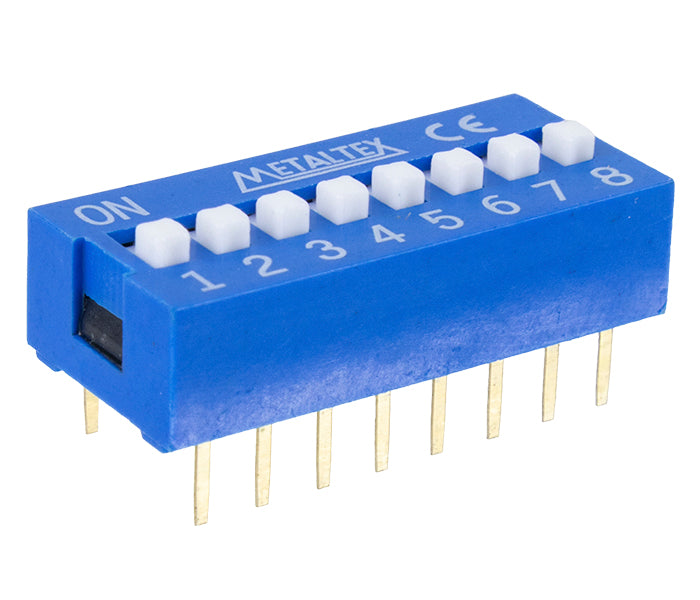

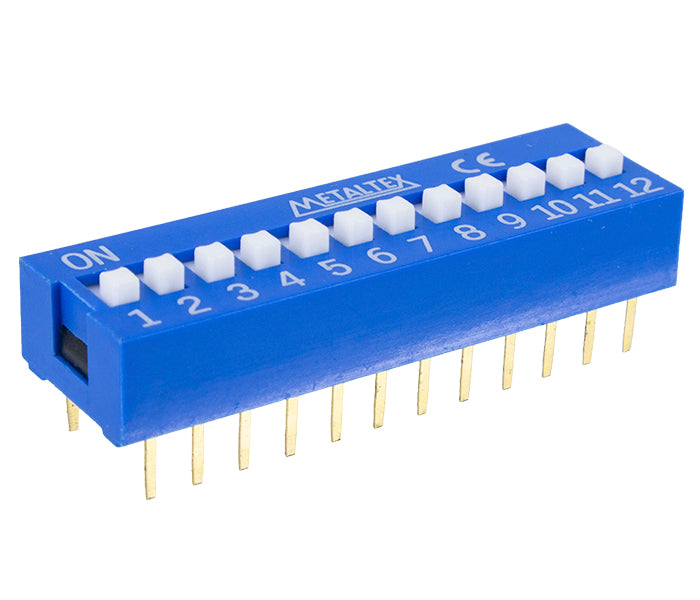

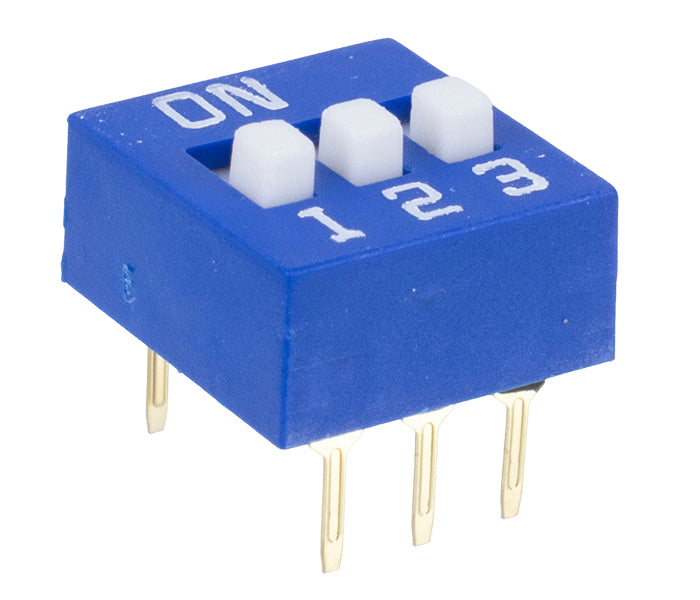

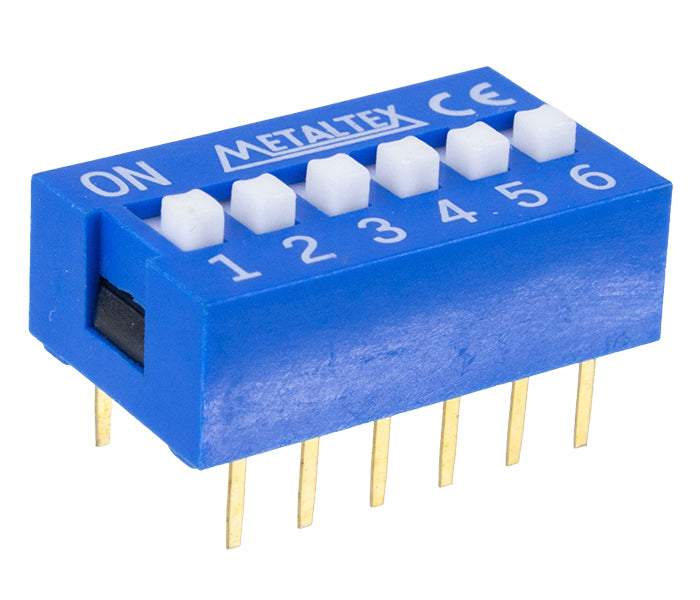

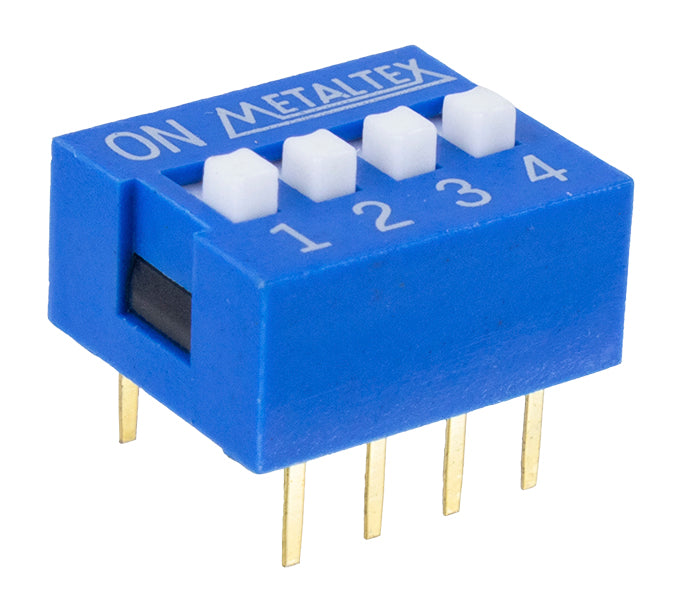

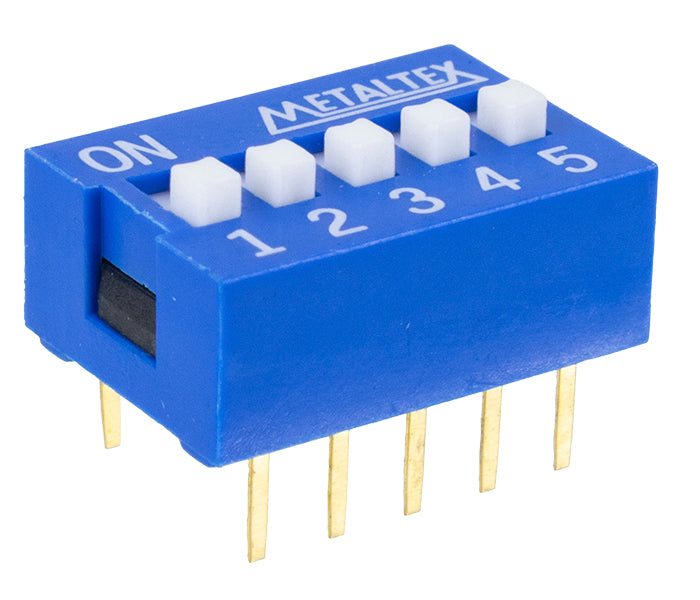

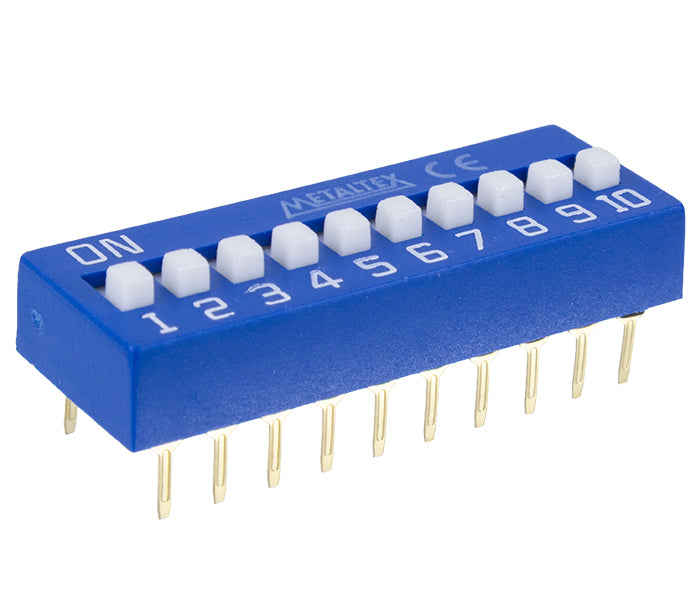

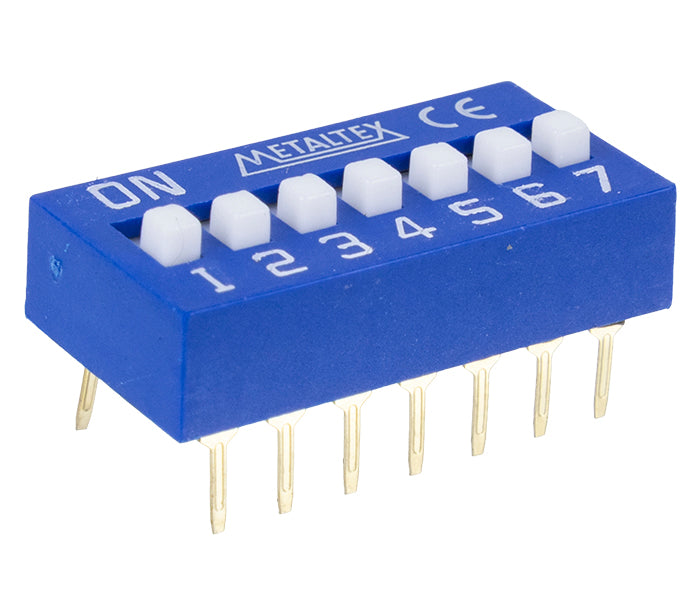

180-Degree DIP Switch DS
CÓD: DS-02
Description
Description
DS Series DIP switches, ideal for simple and economical electronic circuit configuration. Compact and reliable, they allow manual adjustments on electronic boards and are widely used in industrial and electronic applications.
- Available with multiple positions (2 to 12 ways)
- Resistant thermoplastic encapsulation
- Suitable for configuration and selection in electronic circuits (SPST - normally open)
- 180° mounting
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| DS-02 | 02-Way |
| DS-03 | 03-Way |
| DS-04 | 04-Way |
| DS-05 | 05-Way |
| DS-06 | 06-Way |
| DS-07 | 07-Way |
| DS-08 | 08-Way |
| DS-10 | 10-Way |
| DS-12 | 12-Way |
General specifications
General specifications
| Maximum switching load on contact | 24VDC - 25mA |
| Maximum conduction load | 50VDC - 100mA |
| Initial contact resistance | 100mΩ max. |
| Insulation resistance | >100MΩ - 500VDC |
| Dielectric strength | >500VAC - 1 minuto |
| Electrical life | >2000 operations |
| Contact arrangement | Normalmente aberto |
| Contact material | Phosphor bronze with gold plating over nickel |
| Insulator material | P.B.T. UL94V-0 |
