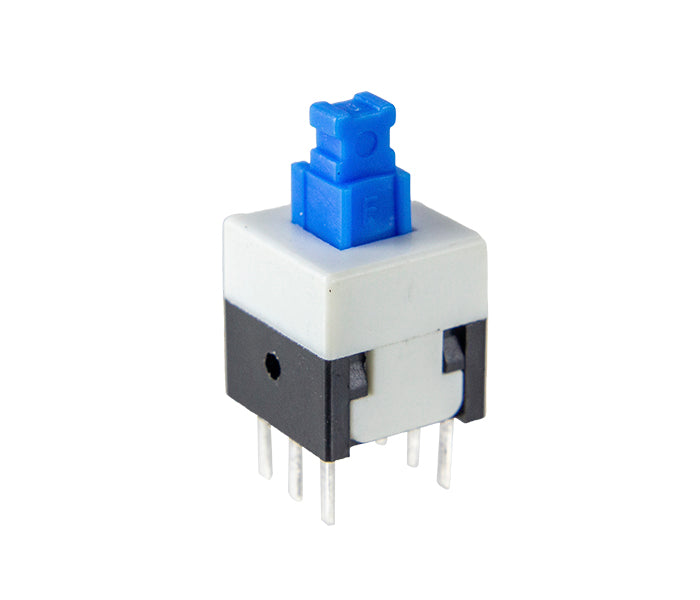

Micro Switch PSW for PCB
CÓD: PSW-8,0R
Description
Description
PSW series pushbutton switches, designed for electronic applications that require precise and reliable activation. Compact and versatile, they are available in momentary or latching versions, making them ideal for mounting on boards and circuits.
- Available in momentary (M) and latching (R) versions
- Option with tactile feedback ("click") for better response to activation
- Compact and suitable for PCB mounting
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| PSW-8,0R | 8x8mm / Retentive |

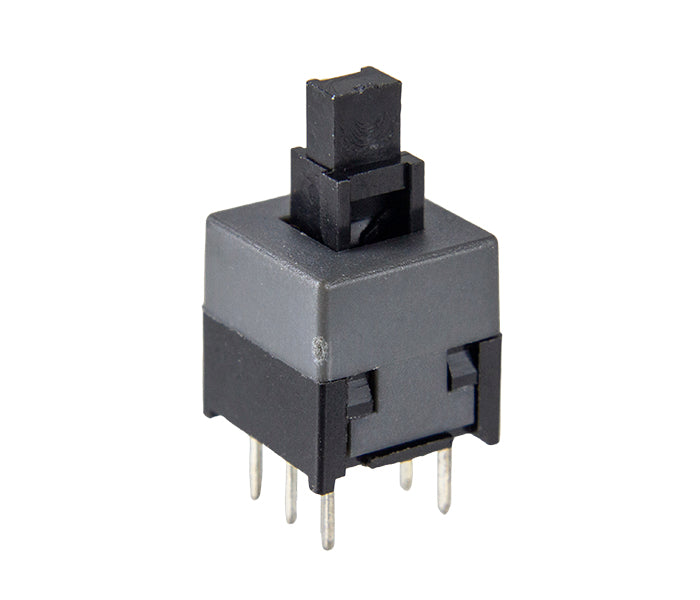

| PSW-8,5M | 8.5x8.5mm / Momentary |

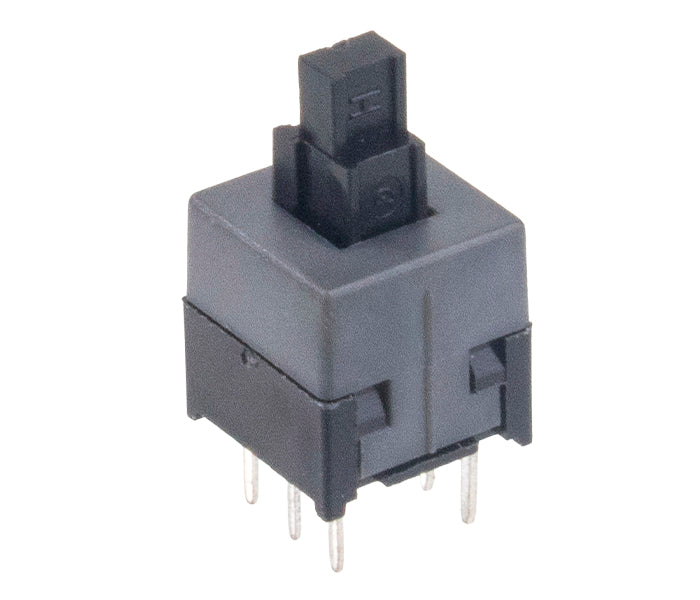

| PSW-8,5M-K | 8.5x8.5mm / Momentary with 2 clicks |

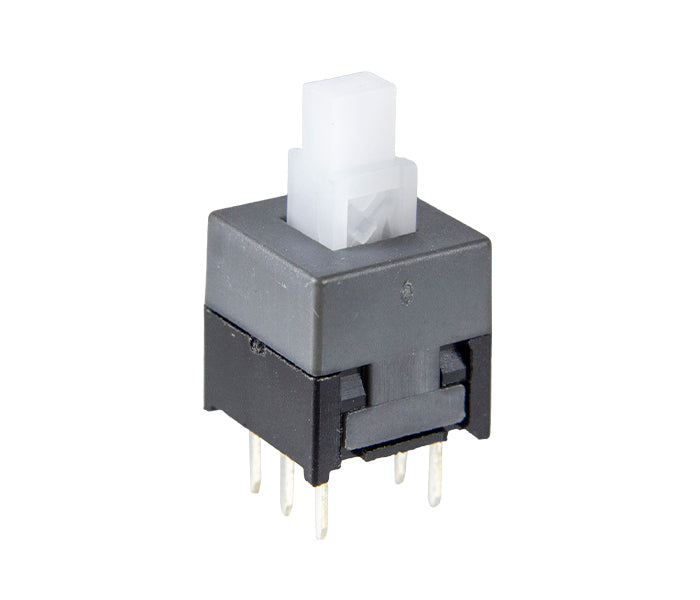

| PSW-8,5R | 8.5x8.5mm / Retentive |
General specifications
General specifications
| Carga | DC 50V 0.3A |
| Operating temperature | -40~70°C |
| Resistance of the contact | 30mΩ max. |
| Insulation resistance | 100MΩ min. |
| Dielectric strength | AC 250V (60Hz) - 1min |
| Service life | 10,000 |
| Operating force | 300±70g |
| Travel | 1.5±0.2mm |
