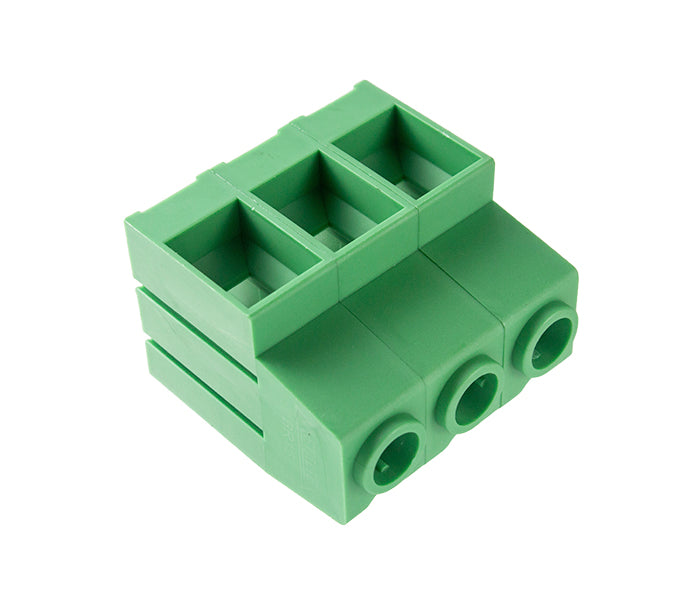

BR15 180° terminal block for PCB
CÓD: BR1503V
Description
Description
The BR15 is a high-performance modular terminal block, designed for secure connections in demanding systems. With a capacity of 65A/300V, it meets industrial applications requiring high power and reliability. Its construction uses flame-retardant materials and resistant metal components, ensuring superior durability. Versatile and robust, it is suitable for organized assemblies with reinforced mechanical support and ease of testing.
- Allows adjacent mounting and composition of up to 5 ways
- Supports up to 65A and 300V, ideal for high-power applications
- PA66 flame-retardant body, M4 galvanized steel screws, and nickel-plated/tinned metal contacts
- Features test probe holes (Ø2.3mm) and double PCB pins for greater support
Select the options below
Code list
Code list
| Code | Description |
|---|---|
| BR1503V | 3-Way |
| BR1504V | 4-Way |
| BR1505V | 5-Way |
General specifications
General specifications
| Rated voltage | 300V |
| Rated current | 65A |
| Contact resistance | 20mΩ |
| Insulation resistance | 500MΩ/500VDC |
| Dielectric strength | 2500VAC/1min. |
| Operating temperature | -40°C a/to +105°C |
| Torque max. | 1.2Nm (10.6Lb.in) |
| Housing | PA66, UL94V-0 |
| Parafuso | Steel M4, zinc-plated |
| Terminals | Tin-plated brass |
| Alojamento (gaiola) | Nickel-plated phosphor bronze |
| Gauge of wires | 20 a 6AWG (0.5 ~ 10mm²) |
| Colors | Green |
