90° Modular Terminal Block BR3 for PCB
CÓD: BR3R-02
Description
Description
The BR3 is a 5mm pitch modular terminal block with a 90° design, ideal for practical connections. It supports up to 8A/300V, ensuring safety and reliability in compact electrical systems. Built with flame-retardant materials and resistant metals, it offers durability and robustness. Versatile and compact, it is suitable for organized assemblies in electrical panels and electronic circuits.
- Allows the combination of blocks (2 or 3 ways)
- Supports 8A and 300V, suitable for low and medium power applications
- PA66 flame-retardant body, zinc-plated steel screws, and nickel-plated/tinned metal contacts
- For wires from 24 to 18 AWG (0.2–1.0mm²), with a 5mm pitch
Select the options below
Code list
Code list
| Code | Description |
|---|---|

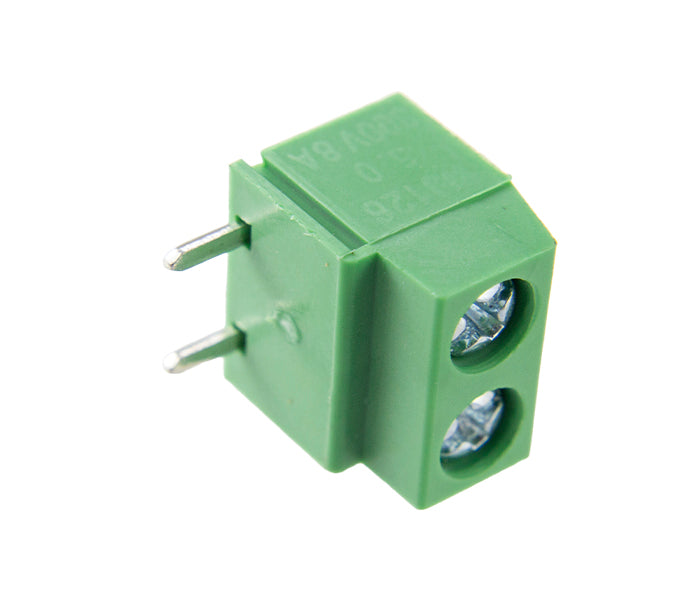

| BR3R-02 | 2-Way |

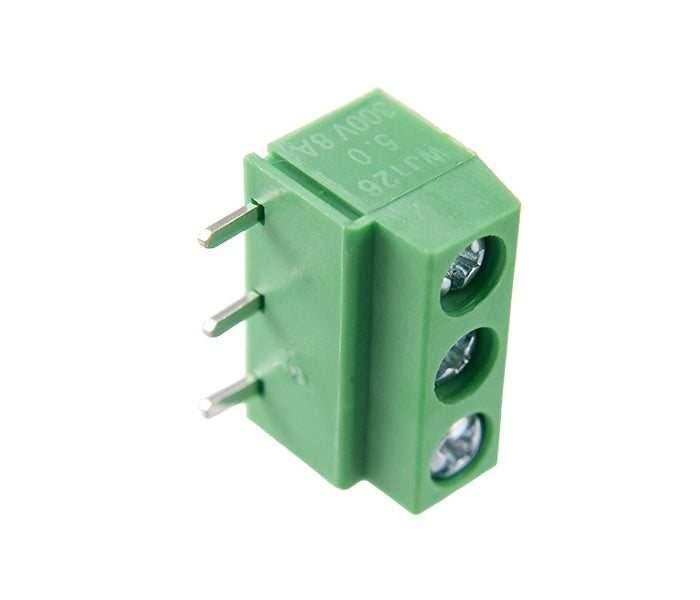

| BR3R-03 | 3-Way |
General specifications
General specifications
| Rated voltage | 300V |
| Rated current | 8A |
| Contact resistance | 20mΩ |
| Insulation resistance | 500MΩ (1000VDC) |
| Dielectric strength | 2000 VAC (1 minuto) |
| Operating temperature | -40ºC ~ +105ºC |
| Maximum torque | 0.4Nm (3.6Lb.in) |
| Housing | PA66, UL94V-0 |
| Parafuso | M2.5 steel - Zinc-plated |
| Terminals | Tin-plated brass |
| Contact | Nickel-plated phosphor bronze |
| Applicable cable | 24 ~ 18AWG (0.2 ~ 1.0mm²) |
| Colors | Green |
