Modular Terminal Block BR2 for PCB
CÓD: BR202A
Description
Description
The BR2 is a versatile modular terminal block, available in 5mm or 10mm pitch for different applications. With a capacity of 10A/300V, it ensures secure and reliable connections in electrical systems. Its robust construction uses flame-retardant materials and resistant metals for greater durability. Compact and practical, it is suitable for organized assemblies in industrial and residential electrical panels.
- Allows the combination of blocks (2 or 3 ways)
- Supports 10A and 300V, suitable for medium power applications
- PA66 flame-retardant body, zinc-plated steel screws, and nickel-plated/tinned metal contacts
- For 22 to 14 AWG (0.5–2.5mm²) wires, available in blue
Select the options below
Code list
Code list
| Code | Description |
|---|---|

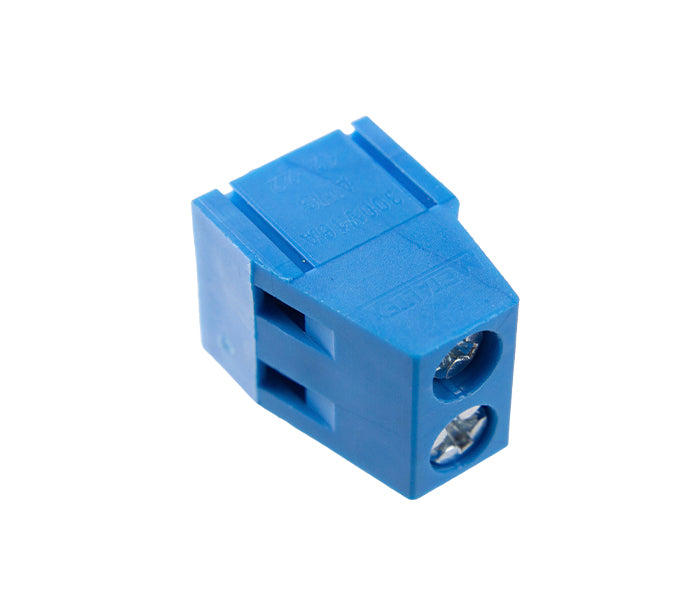

| BR202A | 2-Way / 5mm |

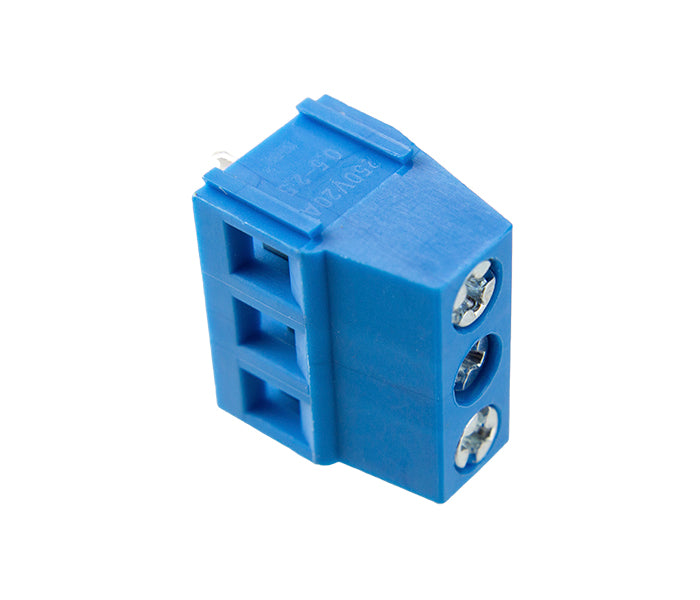

| BR203A | 3-Way / 5mm |

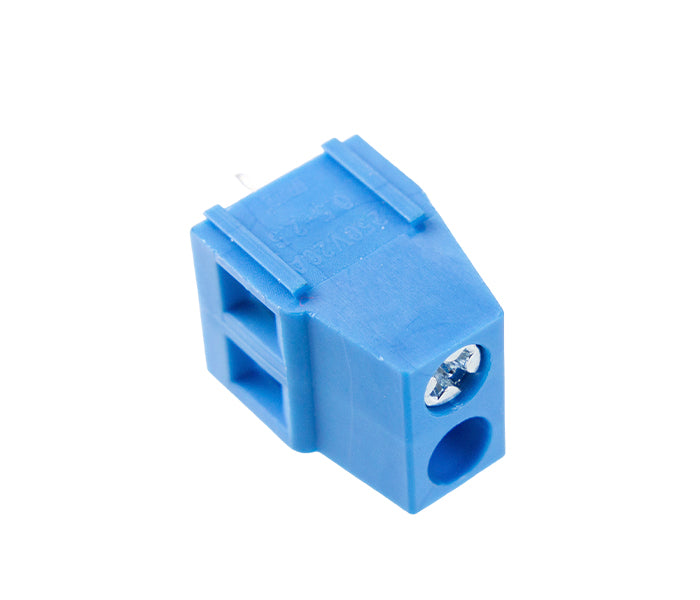

| BR212A | 2-Way / 10mm |

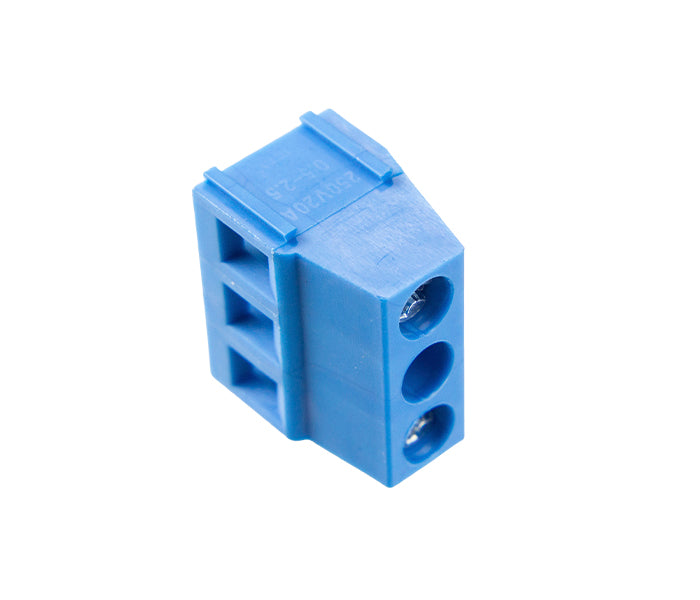

| BR213A | 3-Way / 10mm |
General specifications
General specifications
| Rated voltage | 300V |
| Rated current | 10A |
| Contact resistance | 20mΩ |
| Insulation resistance | 500MΩ (1000VDC) |
| Dielectric strength | 2000 VAC (1 minuto) |
| Operating temperature | -40ºC ~ +105ºC |
| Maximum torque | 0.4Nm (3.6Lb.in) |
| Housing | PA66, UL94V-0 |
| Parafuso | M2.5 steel - Zinc-plated |
| Terminals | Tin-plated brass |
| Contact | Nickel-plated brass |
| Applicable cable | 22 ~ 14AWG (0.5 ~ 2.5mm²) |
| Color | Blue |
