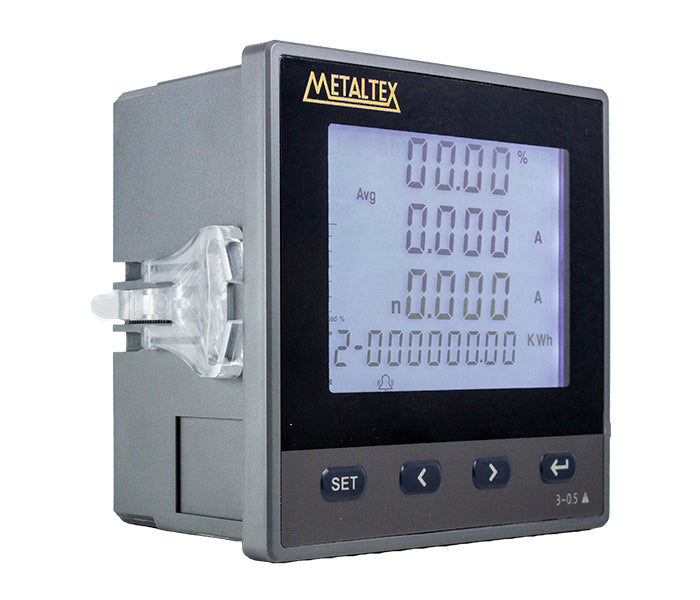

KWDT Energy Meter
CÓD: KWDT-M
Description
Description
The KWDT line consists of three-phase digital energy multimeters, developed for comprehensive monitoring of electrical systems. With high precision and various analysis functions, they allow for real-time monitoring of electrical parameters and energy consumption, making them ideal for industrial, building, and energy efficiency applications.
- Comprehensive measurement of single-phase, two-phase, and three-phase networks, including bidirectional energy
- LCD display with backlight
- RS485 communication with Modbus-RTU protocol
- Advanced functions such as harmonic analysis, energy efficiency, and load monitoring
General specifications
General specifications
| Power supply | 85 ~ 265 VAC 100 ~ 300 VDC |
| Consumption | ≤ 5VA |
| Communication | RS-485 (Modbus-RTU) |
| Speed of communication | 1200 ~ 38400 bps |
| Measurement class | Alimentação: 0.5 |
| Frequency (Hz): ± 0.2 | |
| Power active: 1.00 | |
| Power reactive: 2.00 | |
| Display mode | Display LCD with backlight |
| Operating temperature | -10 °C ~ 45 °C |
| Storage temperature | -25 °C ~ 50 °C |
| Relative humidity (RH) | < 85% |
| Insulation resistance | > 100 MΩ |
| Degree of protection | IP52 |
