Tactile Switch A06
CÓD: A06-4.3-D1
Description
Description
Tactile switches from the A06 series, ideal for electronic applications requiring precise activation and tactile feedback. Compact and reliable, they are widely used in printed circuit boards, offering durability and consistency in use.
- Compact 6x6 mm format with 4 terminals
- Available in different heights for various applications
- Tactile feedback with good response to actuation
Select the options below
Code list
Code list
| Code | Description |
|---|---|

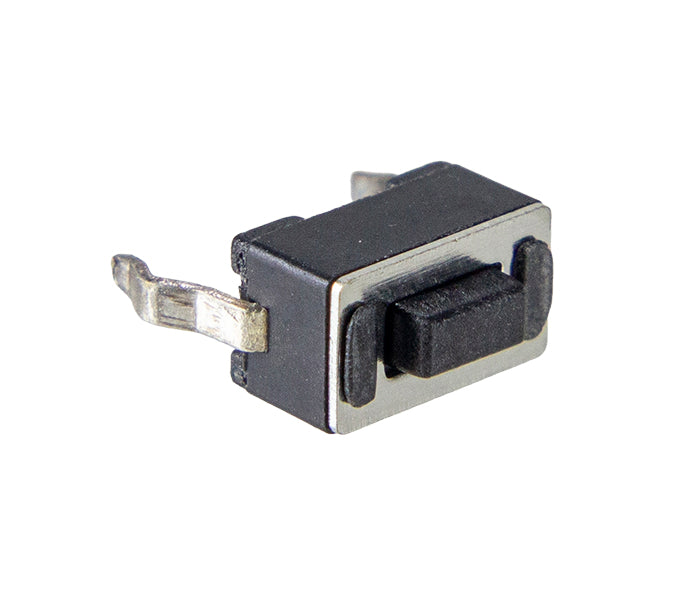

| A06-4.3-D1 | 2 Terminals / 4.3mm |

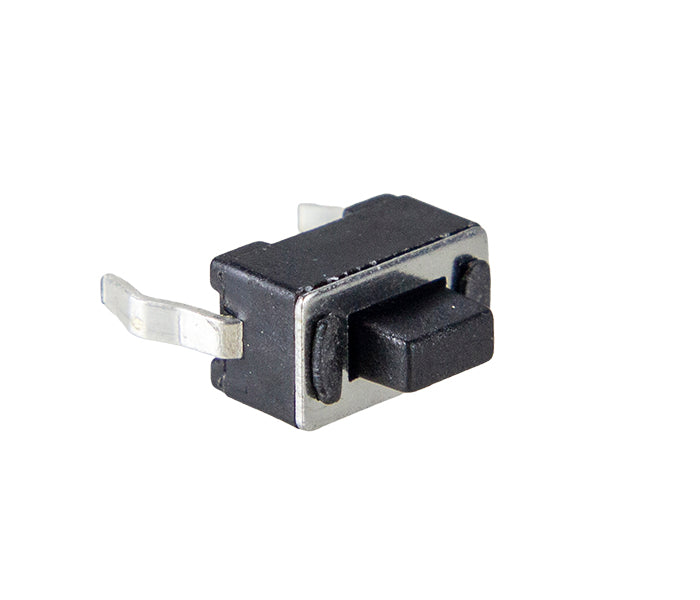

| A06-5-D1 | 2 Terminals / 5mm |

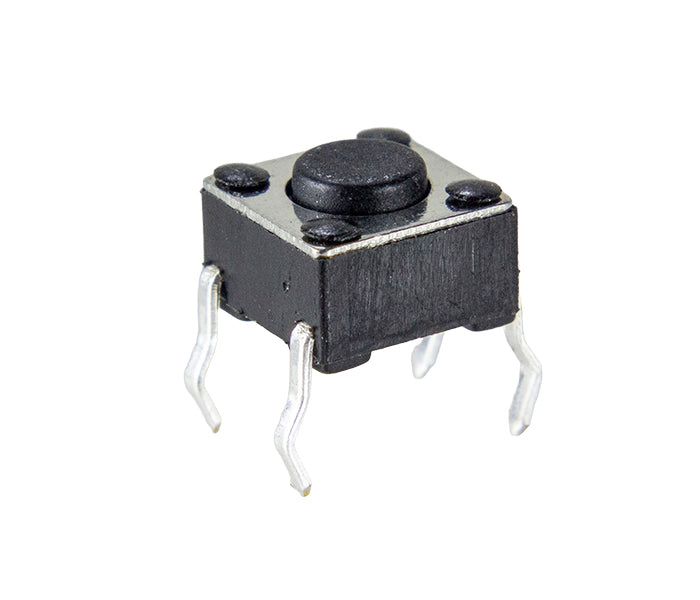

| A06-4.3 | 4 Terminals / 4.3mm |

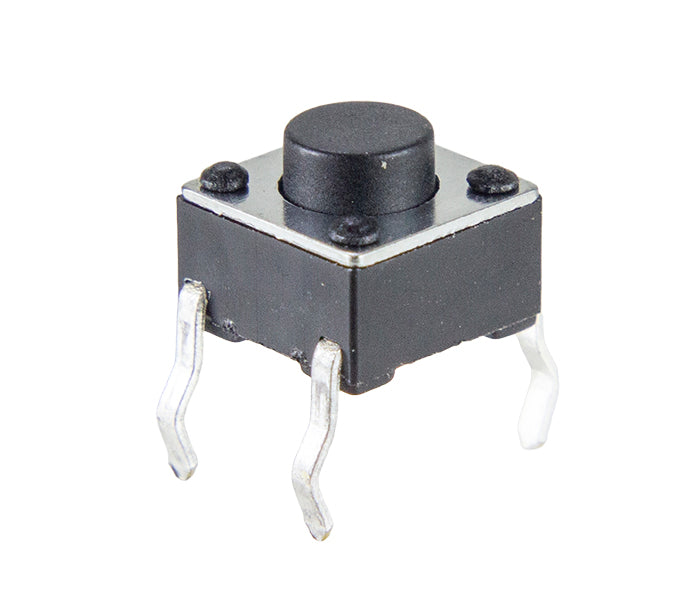

| A06-5.0 | 4 Terminals / 5mm |

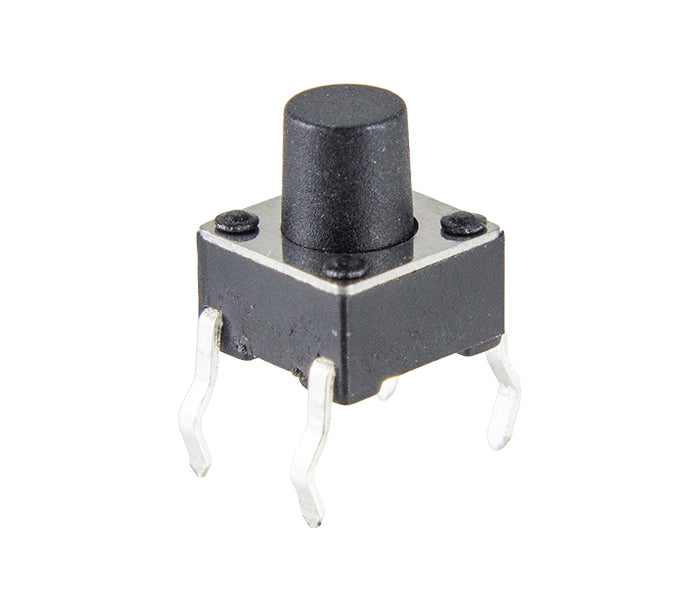

| A06-7.0 | 4 Terminals / 7mm |

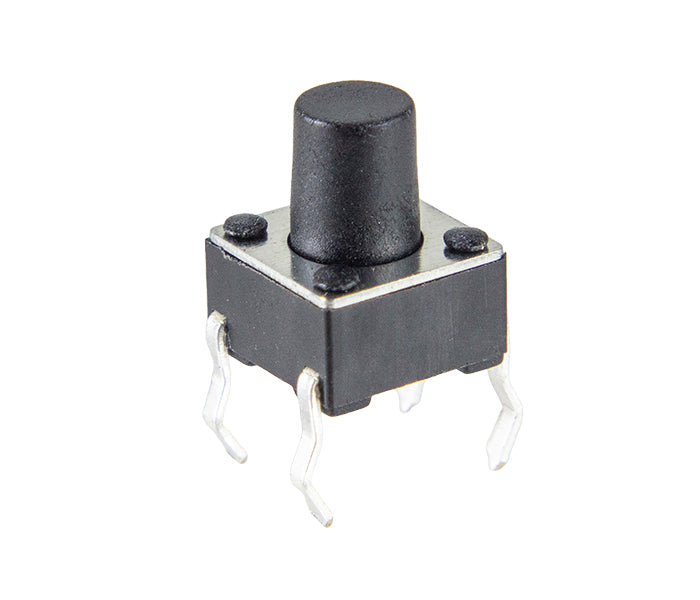

| A06-7.5 | 4 Terminals / 7.5mm |

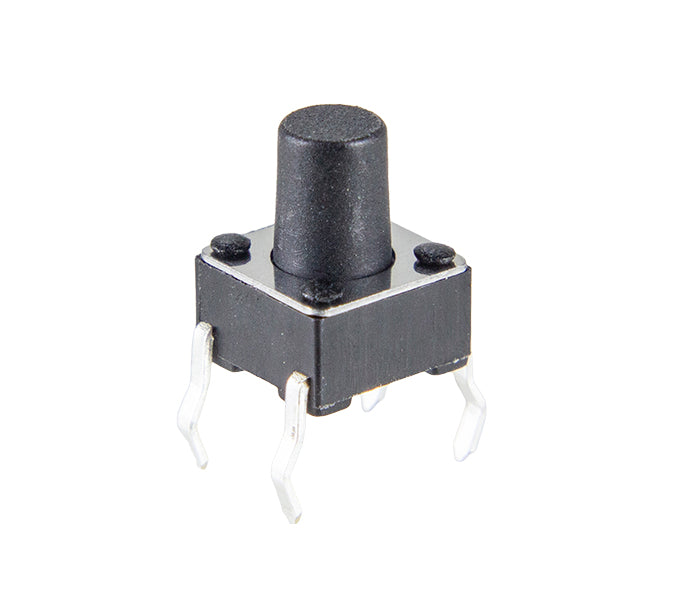

| A06-7.7 | 4 Terminals / 7.7mm |

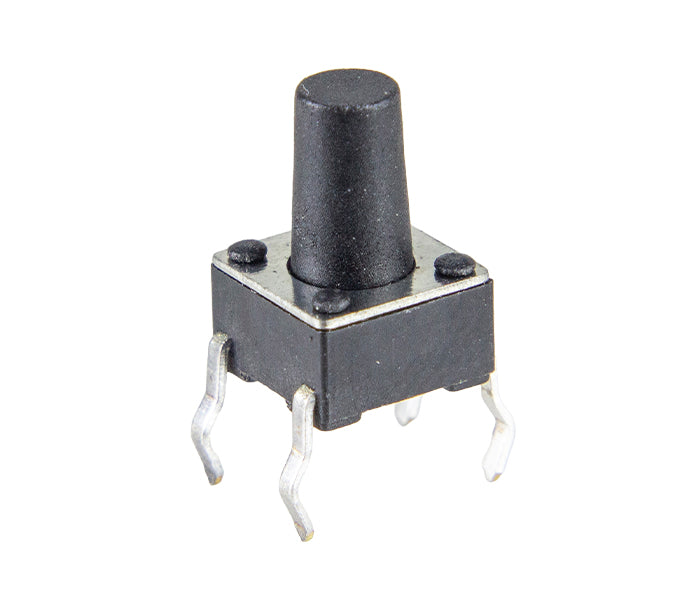

| A06-9.0 | 4 Terminals / 9mm |

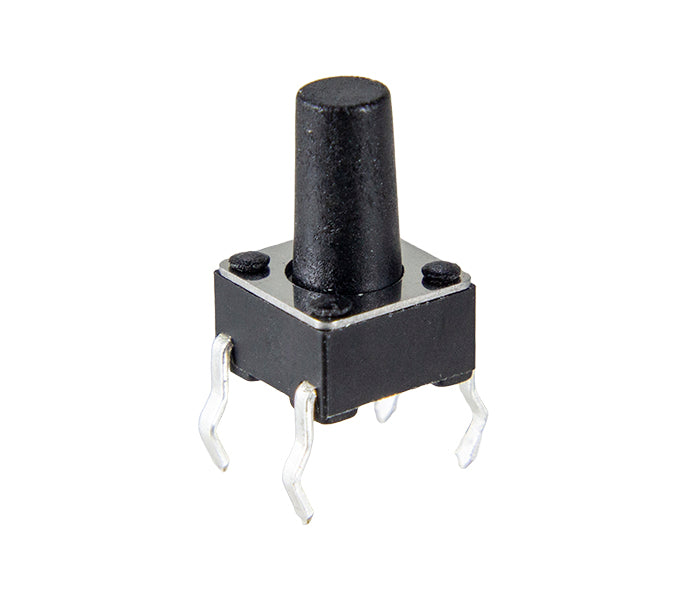

| A06-9.5 | 4 Terminals / 9.5mm |

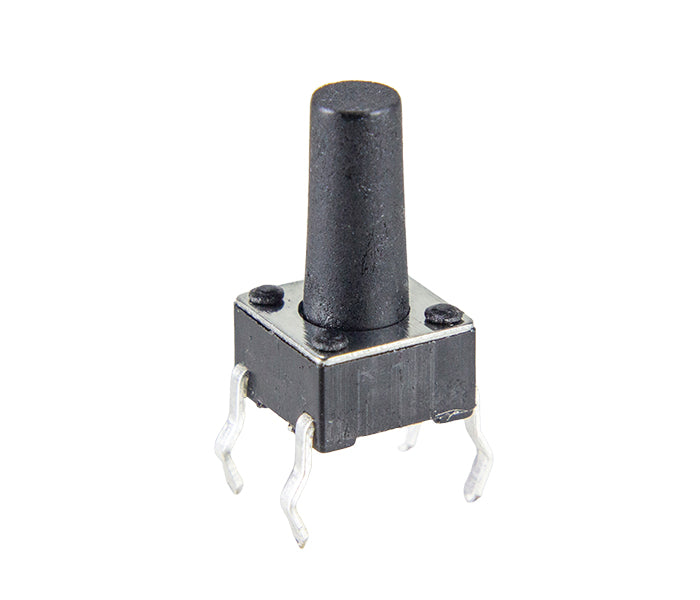

| A06-11.0 | 4 Terminals / 11mm |

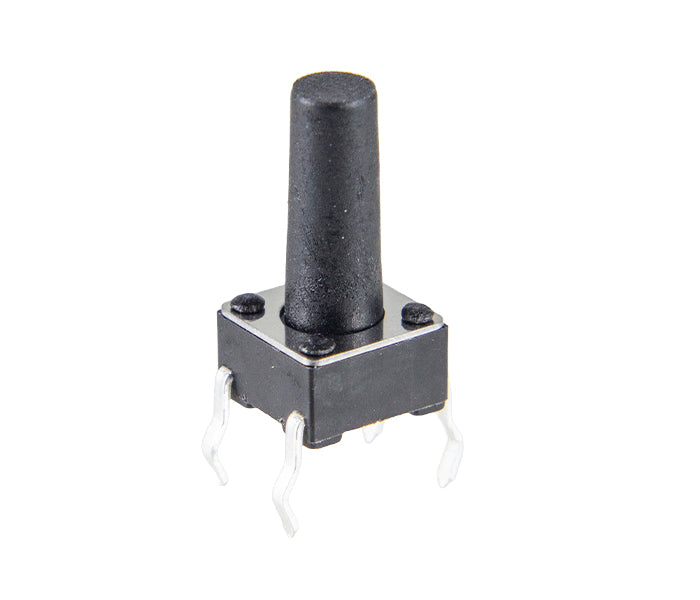

| A06-12.0 | 4 Terminals / 12mm |

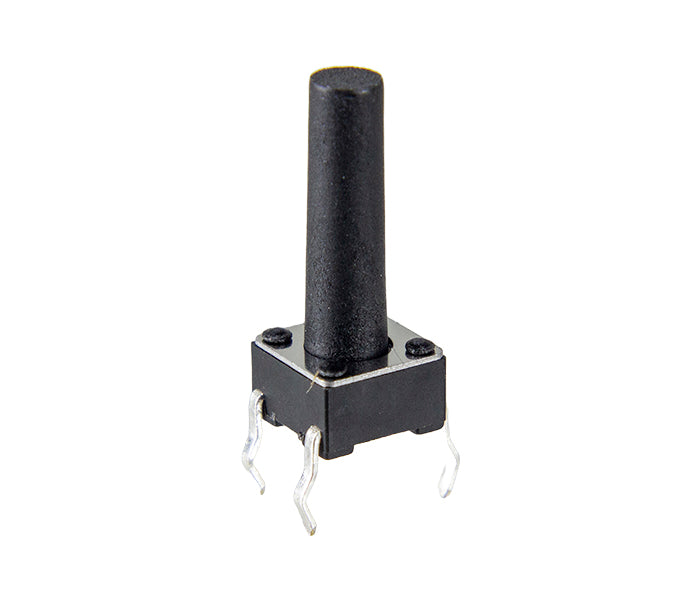

| A06-15.0 | 4 Terminals / 15mm |

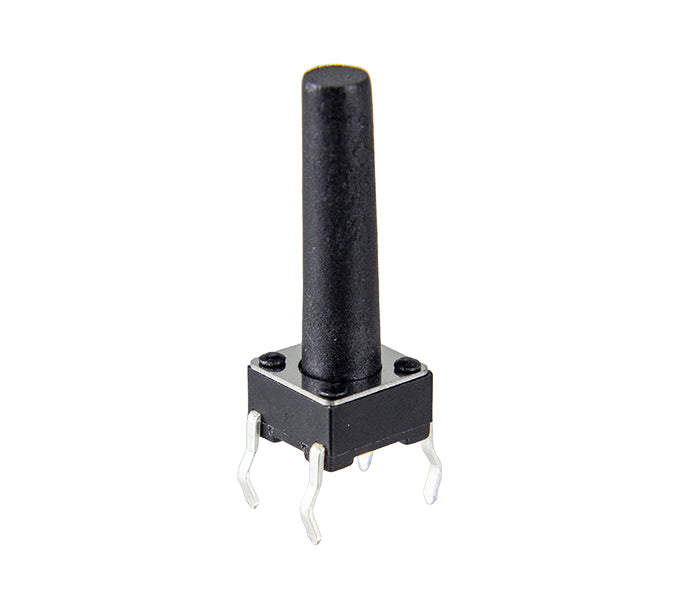

| A06-17.0 | 4 Terminals / 17mm |
General specifications
General specifications
| Max. contact load | 12 VDC - 50mA |
| Contact arrangement | 1 NO |
| Contact resistance | 100mΩ max. |
| Insulation resistance | 100MΩ min. |
| Dielectric strength | 250 VAC |
| Electrical life | > 100,000 |
| Actuation force | 160gf ± 50gf |
| Travel | 0.25mm |
